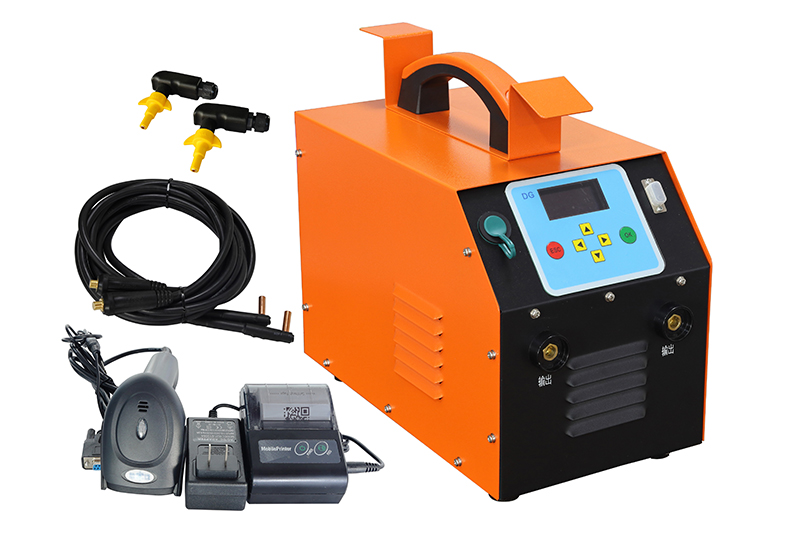

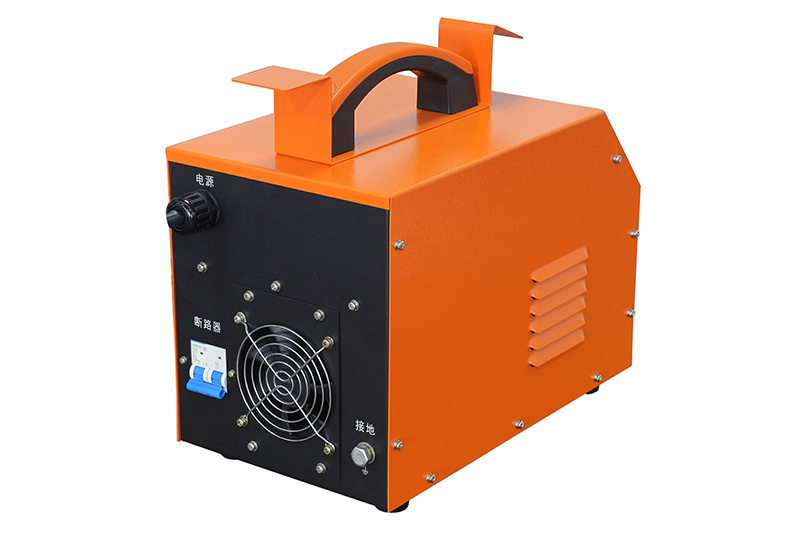

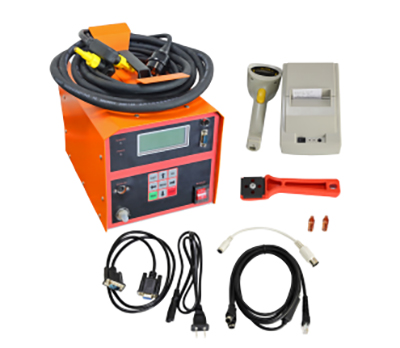

Electrofusion Welding Machine, K/F Series
(20mm-1000mm Plastic Pipe Welding）
K Series
F Series
WELPING K/F series electrofusion welding machine is equipped with a traditional transformer device, ensuring its safe and normal operation.
Application
- Welding mode: automatic and manual
- Suitable material: PE, PP
- Max. Welding range: 200mm
- Power supply: 220V±20%, 50~60 Hz
- Power: 2.5kw
- Ambient temperature: -20~60℃
- Output voltage: 5~60V adjustable
- Output current: 1~80A adjustable
- Time adjusting range: 1-9999 seconds
- Control mode: constant voltage/constant current
- Data record: 100
- Duty rate: 85%
- Data interface (optional): USB, scanner, printer
- Net weight: 18.5kg
Model: WP20F
- Welding mode: automatic and manual
- Suitable material: PE, PP
- Max. Welding range: 315mm
- Power supply: 220V±20%, 50~60 Hz
- Power: 3.5kw
- Ambient temperature: -20~60℃
- Output voltage: 5~60V adjustable
- Output current: 1~80A adjustable
- Time adjusting range: 1-9999 seconds
- Control mode: constant voltage/constant current
- Data record: 100
- Duty rate: 85%
- Data interface (optional): USB, scanner, printer
- Net weight: 23kg
Model: WP35F
- Welding mode: automatic and manual
- Suitable material: PE, PP
- Max. Welding range: 315mm
- Power supply: 220V±20%, 50~60 Hz
- Power: 3.5kw
- Ambient temperature: -15~45℃
- Output voltage: 0~75V adjustable
- Output current: 0~55A adjustable
- Time adjusting range: ±1.5%
- Control mode: constant voltage/constant current
- Data record: 500
- Duty rate: 60%
- Data interface (optional): USB, scanner, printer
- Net weight: 10kg
Model: WP35K
- Welding mode: automatic and manual
- Suitable material: PE, PP
- Max. Welding range: 355mm
- Power supply: 220V±20%, 50~60 Hz
- Power: 4.0kw
- Ambient temperature: -15~45℃
- Output voltage: 0~75V adjustable
- Output current: 0~55A adjustable
- Time adjusting range: ±1.5%
- Control mode: constant voltage/constant current
- Data record: 500
- Duty rate: 60%
- Data interface (optional): USB, scanner, printer
- Net weight: 10kg
Model: WP40K
- Welding mode: automatic and manual
- Suitable material: PE, PP
- Max. Welding range: 450mm
- Power supply: 220V±20%, 50~60 Hz
- Power: 4.5kw
- Ambient temperature: -15~45℃
- Output voltage: 0~130V adjustable
- Output current: 0~80A adjustable
- Time adjusting range: ±1.5%
- Control mode: constant voltage/constant current
- Data record: 500
- Duty rate: 60%
- Data interface (optional): USB, scanner, printer
- Net weight: 10kg
Model: WP45K
- Welding mode: automatic and manual
- Suitable material: PE, PP
- Max. Welding range: 630mm
- Power supply: 220V±20%, 50~60 Hz
- Power: 6.0kw
- Ambient temperature: -15~45℃
- Output voltage: 0~170V adjustable
- Output current: 0~80A adjustable
- Time adjusting range: ±1.5%
- Control mode: constant voltage/constant current
- Data record: 500
- Duty rate: 60%
- Data interface (optional): USB, scanner, printer
- Net weight: 26kg
Model: WP60K
- Welding mode: automatic and manual
- Suitable material: PE, PP
- Max. Welding range: 1000mm
- Power supply: 220V±20%, 50~60 Hz
- Power: 10kw
- Ambient temperature: -15~45℃
- Output voltage: 0~210V adjustable
- Output current: 0~80A adjustable
- Time adjusting range: ±1.5%
- Control mode: constant voltage/constant current
- Data record: 500
- Duty rate: 60%
- Data interface (optional): USB, scanner, printer
- Net weight: 26kg
Model: HJ12000
| Model | WP20F | WP35F | WP35K | WP40K | WP45K | WP60K | WP100K |
| Welding mode | automatic and manual | automatic and manual | automatic and manual | automatic and manual | automatic and manual | automatic and manual | automatic and manual |
| Suitable material | PE, PP | PE, PP | PE, PP | PE, PP | PE, PP | PE, PP | PE, PP |
| Max. Welding range | 200mm | 315mm | 315mm | 355mm | 450mm | 630mm | 1000mm |
| Power supply | 220V±20%, 50~60 Hz | 220V±20%, 50~60 Hz | 220V±20%, 50~60 Hz | 220V±20%, 50~60 Hz | 220V±20%, 50~60 Hz | 220V±20%, 50~60 Hz | 220V±20%, 50~60 Hz |
| Power | 2.5kw | 3.5kw | 3.5kw | 4.0kw | 4.5kw | 6.0kw | 10kw |
| Ambient temperature | -20~60℃ | -20~60℃ | -15~45℃ | -15~45℃ | -15~45℃ | -15~45℃ | -15~45℃ |
| Output voltage | 5~60V adjustable | 5~60V adjustable | 0~75V adjustable | 0~75V adjustable | 0~130V adjustable | 0~170V adjustable | 0~210V adjustable |
| Output current | 1~80A adjustable | 1~80A adjustable | 0~55A adjustable | 0~55A adjustable | 0~80A adjustable | 0~80A adjustable | 0~80A adjustable |
| Time adjusting range | 1-9999 seconds | 1-9999 seconds | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% |
| Control mode | constant voltage/constant current | constant voltage/constant current | constant voltage/constant current | constant voltage/constant currency | constant voltage/constant currency | constant voltage/constant currency | constant voltage/constant current |
| Data record | 100 | 100 | 500 | 500 | 500 | 500 | 500 |
| Duty rate | 85% | 85% | 60% | 60% | 60% | 60% | 60% |
| Data interface (optional) | USB, scanner, printer | USB, scanner, printer | USB, scanner, printer | USB, scanner, printer | USB, scanner, printer | USB, scanner, printer | USB, scanner, printer |
| Net weight | 18.5kg | 23kg | 10kg | 10kg | 10kg | 26kg | 26kg |
Features
- Welding range: 20mm-1000mm;
- Top MCU (Microcontroller Unit) is used as control unit for precise welding operation;
- Voltage regulator in the electrofusion machine is applied for stable welding process;
- Highly qualified industrial-grade electrical components result in better welding performance;
- Overload protection against overheating is specially equipped in this plastic welding machine, well ensuring its safe and normal operation;
-
-
-

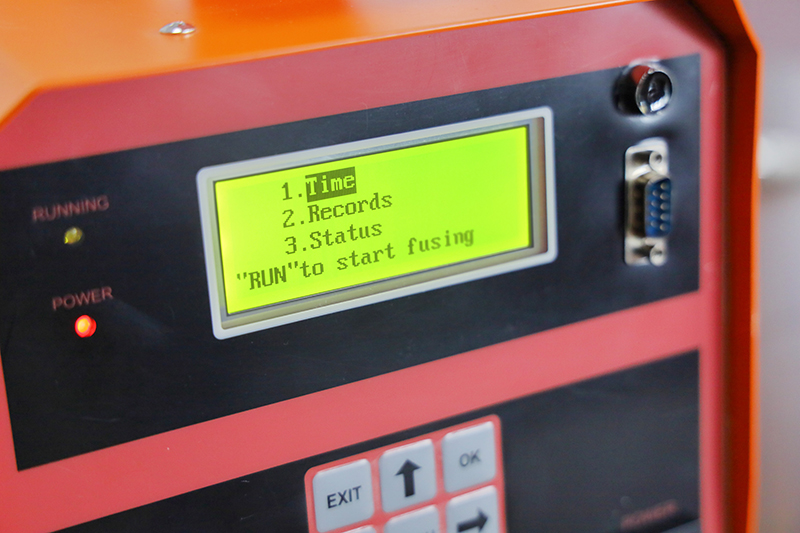

High-definition LCD Digital Display Screen
English operating system is available for high-definition LCD digital display screen. Touch-button control makes it easy to operate.
-
-
-
-

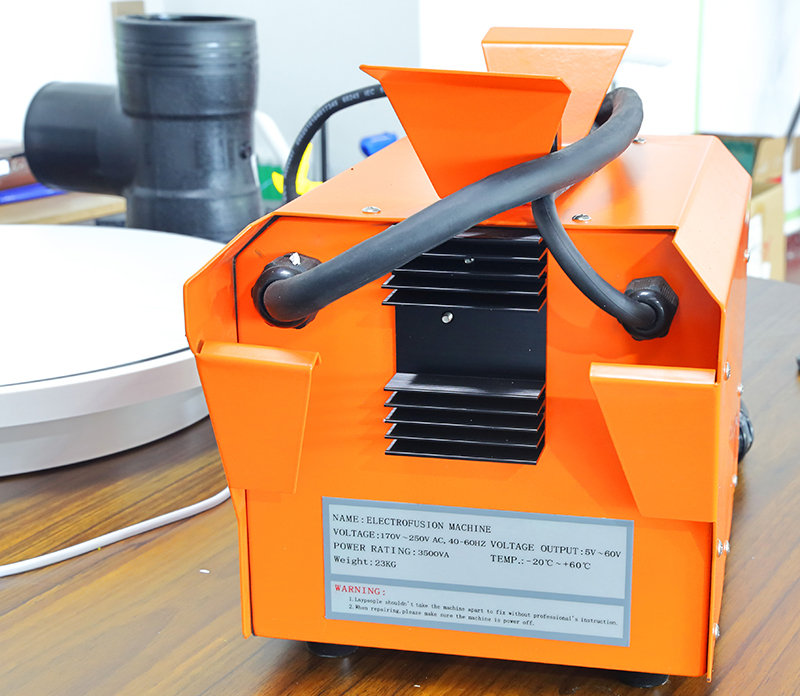

Voltage Range: 170V-250V
WELPING K/F series electrofusion welding machine has a wide range of voltage options varying from 150V to 250V. With strong adaptability, this plastic welding machine is functioned with overpressure protection. Additionally, temperature-compensated control system can be automatically adjusted for real-time monitoring of welding status. In this way, abnormal welding process can be adjusted in short time.
-
-
-
-

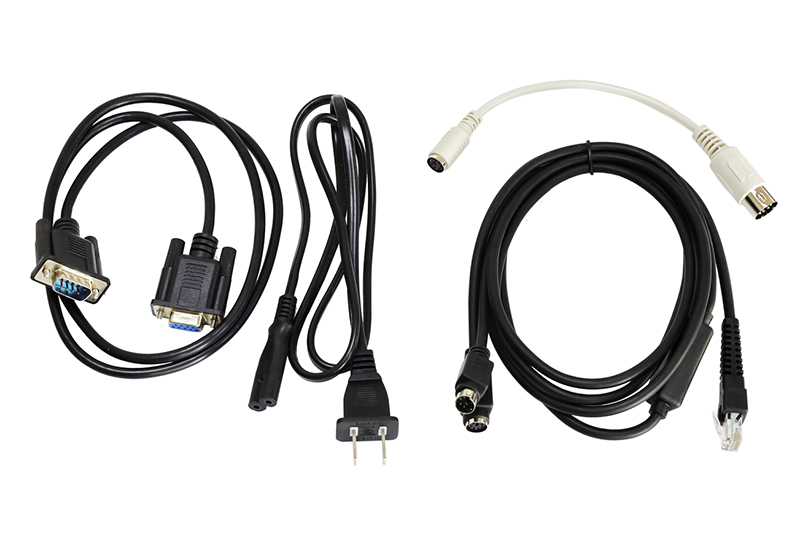

Cordsets
This electrofusion welding machine applies high quality pure copper wires and multi-functional connectors that are of high temperature resistance and suitable for various interfaces. High quality resistance wire delivers efficient and even heating performance.
-
-
-
-

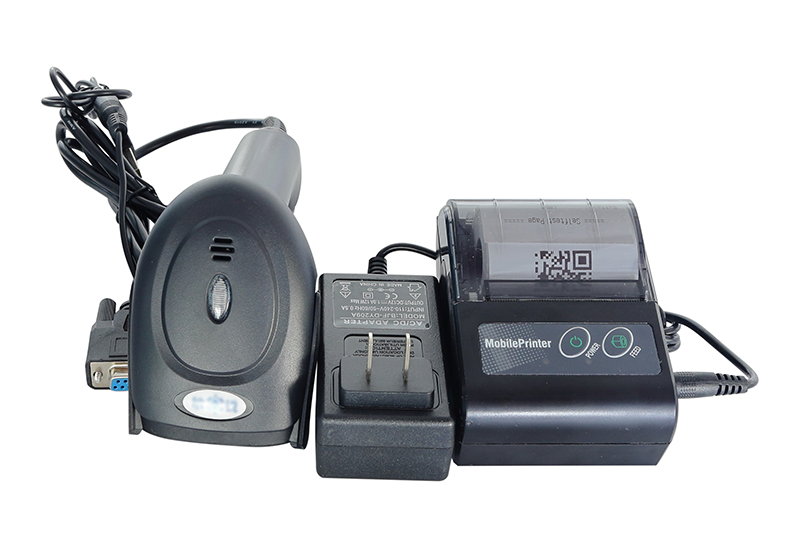

Available Printer And Scanner
Printer and scanner are of good quality and available for data storage in the welding/ fusion process.
-
