Socket Fusion Welder, WP110TB

(Plastic Pipe Welding Machine, Socket Fusion Machine)

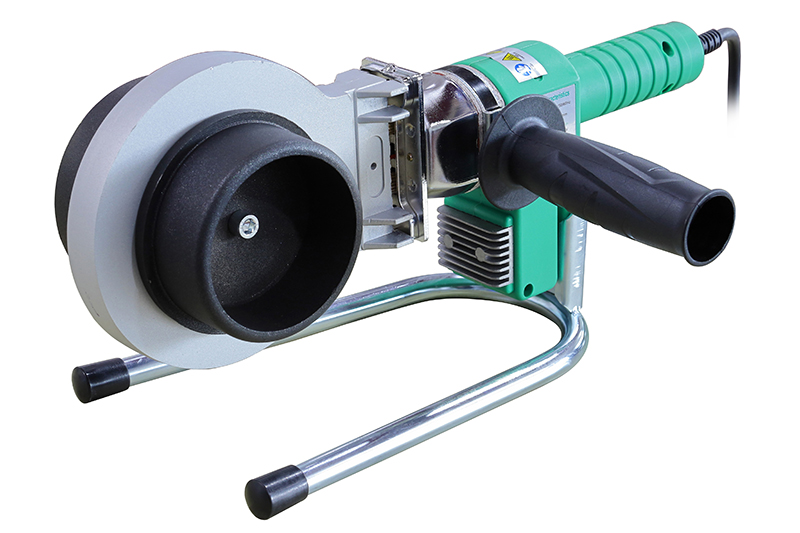

Socket Fusion Machine, WP110TB
Inquiry

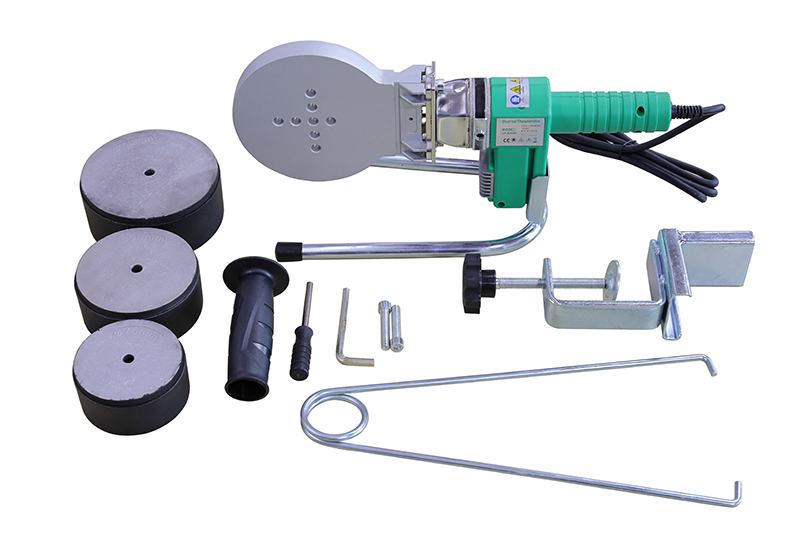

WELPING WP110TB series socket welding machine is suitable for welding PPR, PB and PE plastic pipes and fittings of O.D. 75mm, 90mm and 110mm.

  • The industrial-grade mold and thick heating panel ensure appropriate welding temperature;
  • The double-layer heat insulation plate effectively prevents heat dissipation;
  • Quality aluminum heat radiators extends machine's service life.

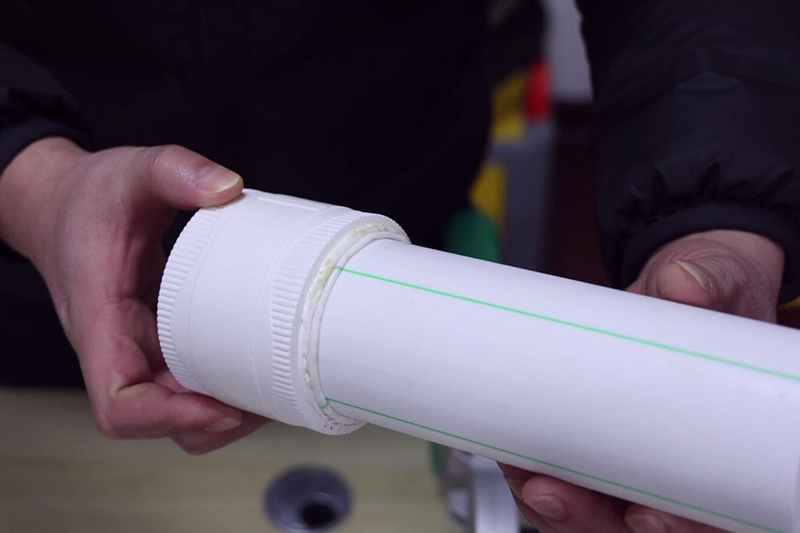

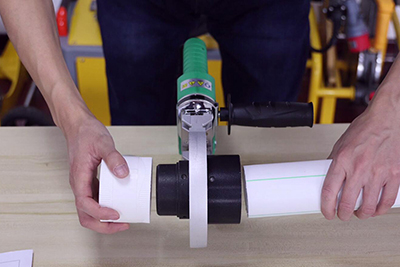

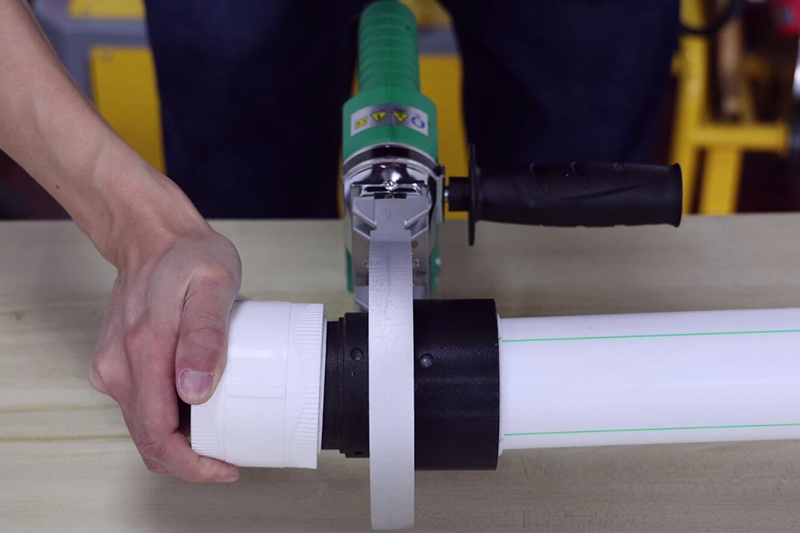

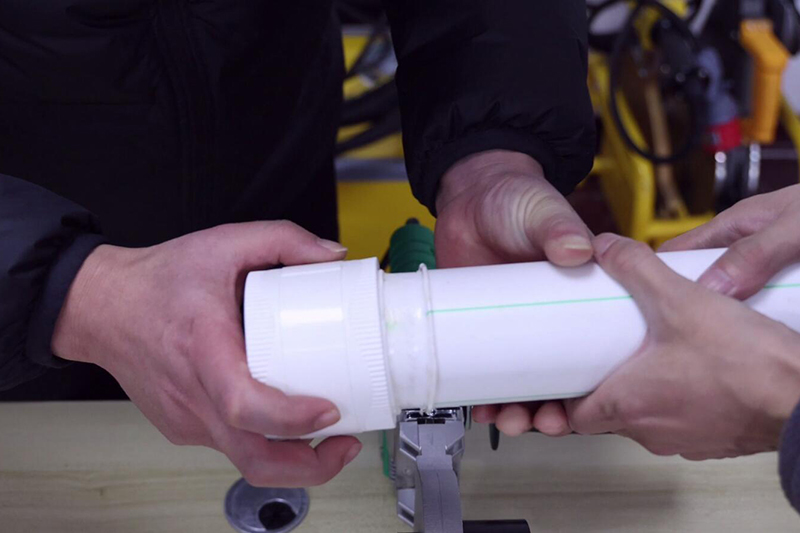

Application
  • Socket Fusion Machine, WP110TB
  • Socket Fusion Machine, WP110TB
  • Socket Fusion Machine, WP110TB
  • Socket Fusion Machine, WP110TB
Technical Data
Model
WP110TB
Suitable materials PE, PP, PB. PVDF
Welding range 75-90-110mm
Power supply 220/110V 50/60Hz, 1PH
Total power 1.2 KW
Ambient temperature - 20 - 85ºC
Relative humidity 40~95%
Working temperature 220ºC-290ºC
Handle alarm temperature >310ºC
Leakage of electric current < 5mA
Net weight 8.5 kg
Packing size 45×25.5×12.5cm
Features
    1. Socket Fusion Machine, WP110TB

    2. Welding molds of O.D. 20mm, 25mm and 32mm are all available for this welding machine, which is easy to install and remove.

    1. Socket Fusion Machine, WP110TB

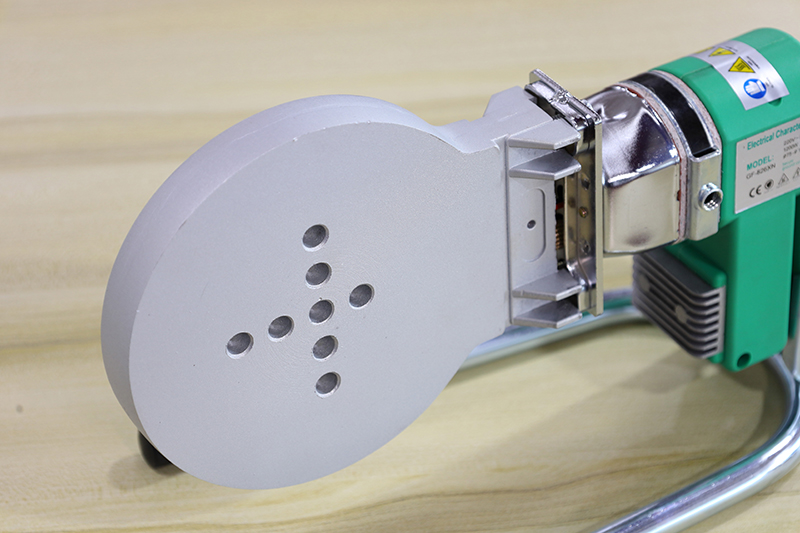

    2. Large Surface Area Of The Heating Panel
      This heating panel adopts high-quality aluminum alloys for the die-casting, further ensuring faster thermal conductivity and insulation, wear resistance properties and longer service life.

    1. Socket Fusion Machine, WP110TB

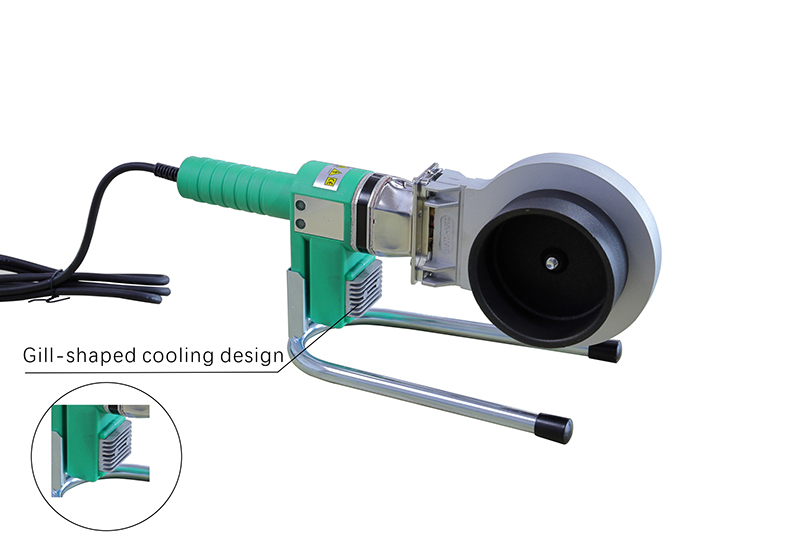

    2. Separate Heat Radiator
      Separate heat radiator and temperature controlled heating panel are used together for effective protection of electronic components and the occurring of any unexpected accidents due to overheated chassis.

    1. Socket Fusion Machine, WP110TB

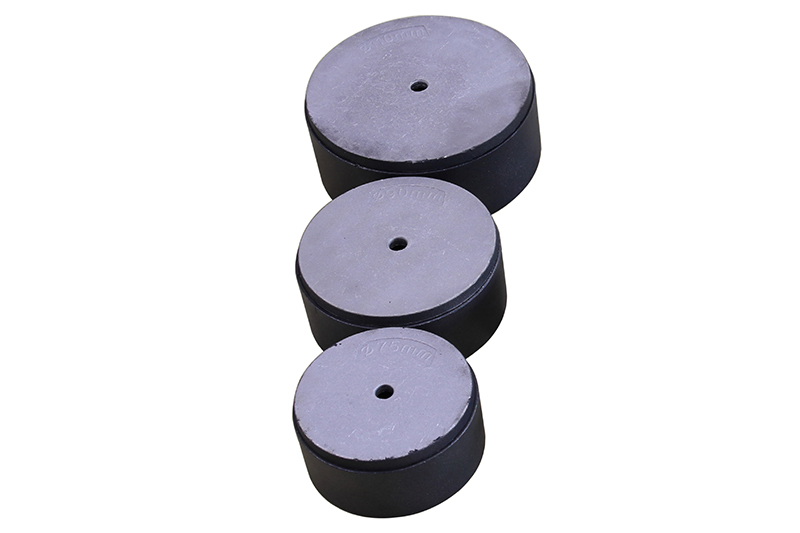

    2. Die Head with Superior Thickness
      This die head is much thicker than others.
      With pure aluminum forging, three-layer Teflon coating, and Daikin spay baking, this die head is highly resistant to high temperature and enjoys zero pipe adhesiveness.
WELPING is a professional manufacturer of fusion machines for jointing HDPE, PP, PVDF, MPP pipes/fittings. We have been focusing on the R&D, manufacturing, and sales of fusion welding equipment since 2005. Products range includes butt fusion machines and extrusion welders.
WELPING has a dedicated team of professional engineers for welding machines R& D and they can give you the most professional advice and technical support for fusion welding equipment. Our factory is equipped with complete manufacturing equipment and hence mass-produced standard products or simply customized products can be delivered within 10-15 days.
Since the very beginning, quality and cost-effectiveness are our benchmarks to develop new products. Adhering to the principle of high quality, we offer a variety of fusion welding machines to meet requirements in different scenarios and from different industries.
