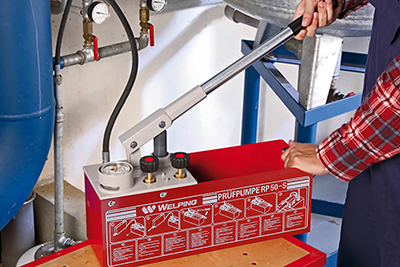

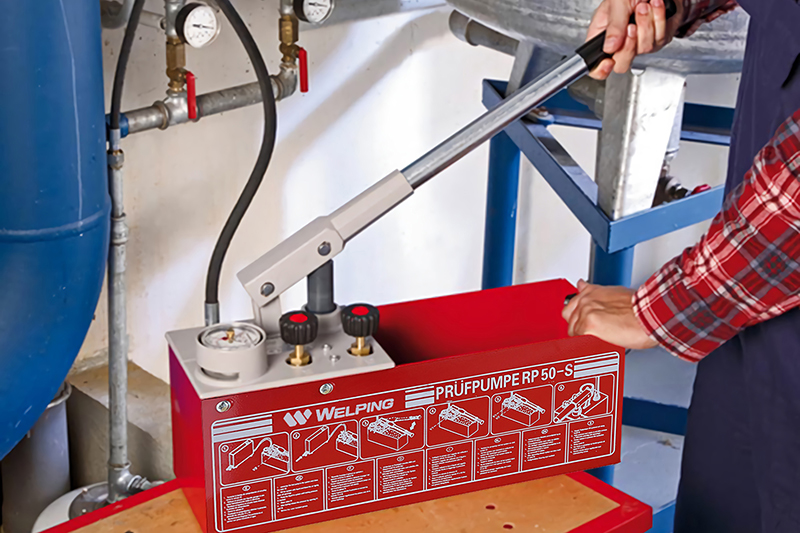

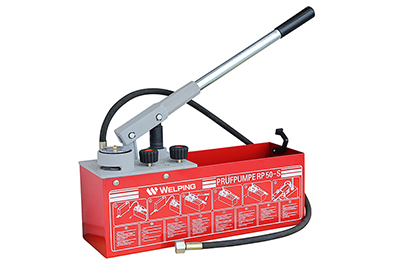

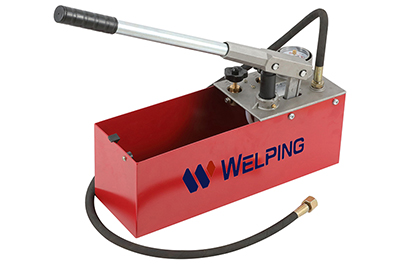

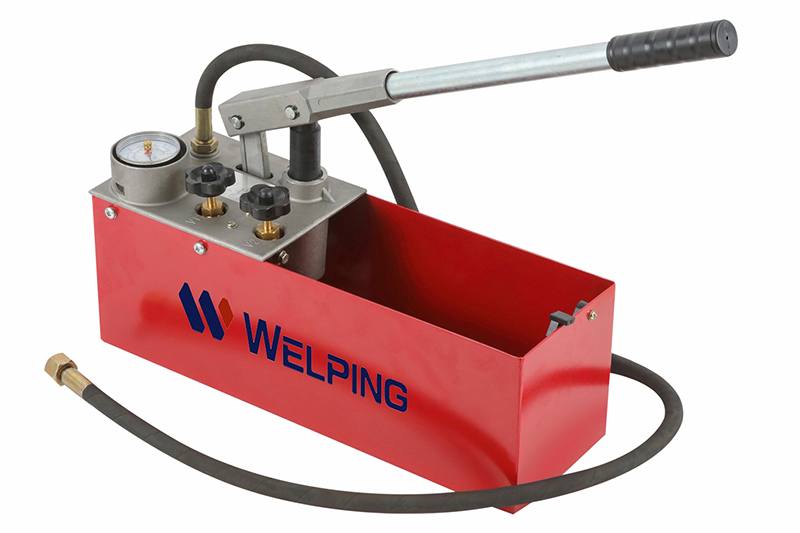

Manual Hydrostatic Test Pump, RP50 / RP50S
Application
- Testing range: 0-60 bar( 860 psi,6 MPa )
- Tank capacity: 12L
- Connections: 1/2" BSPP
- Water tank: Steel
- Volume/stroke: ≈45 ml
- Piston: Brass
- Lift of pump: 5m
Model: RP50
- Testing range: 0-60 bar( 860 psi,6 MPa )
- Tank capacity: 12L
- Connections: 1/2" BSPP
- Water tank: Steel
- Volume/stroke: ≈45 ml
- Piston: Brass
- Lift of pump: 5m
Model: RP50S
| Model | RP50 | RP50S |
| Testing range | 0-60 bar( 860 psi,6 MPa ) | 0-60 bar( 860 psi,6 MPa ) |
| Tank capacity | 12L | 12L |
| Connections | 1/2" BSPP | 1/2" BSPP |
| Water tank | Steel | Steel |
| Volume/stroke | ≈45 ml | ≈45 ml |
| Piston | Brass | Brass |
| Lift of pump | 5m | 5m |
Features

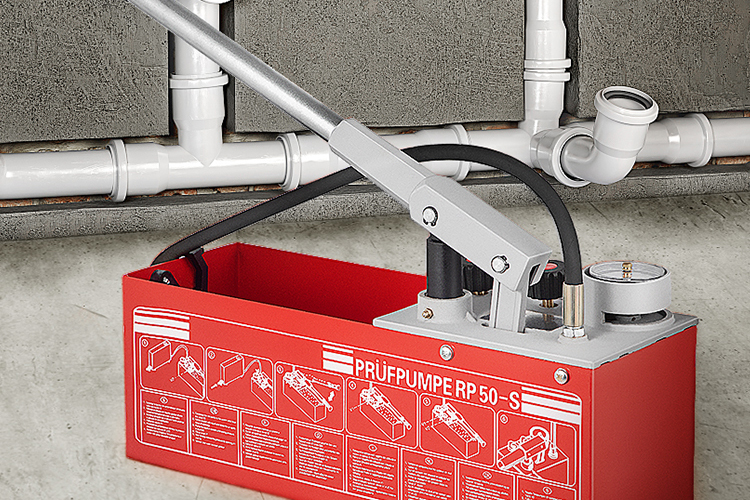

- The sturdy and fine test pump can be used for leak and pressure testing of water pipes and containers up to 60bar / 5 MPA / 726 PSI. Manual hydrostatic test pumps can also be applied for transferring, filling and pressurization of closed systems;
- Large capacity tank: A total volume of 12L, thick iron wall, cylinder type with no seam. Test pump’s tank has a low temperature resistant coating, ensuring its long service life.
- Brass check valve is applied to precisely control backflow and improve pressure measurement accuracy;
- Optional glycerin-filled pressure gauge with fine scale (0.1 bar);
- Resistance indicator shows preset inspiratory pressure for easier detection of pressure losses and higher efficiency;
- Our 1/4""×53" high pressure resistant hose saves your concerns of measurement error due to the thermal expansion;
- Reliable and accurate measurement: internal-type double-valve system allows self-inspection against pumps and fine adjustment towards pressure;
- Pumped water and non-acidic fluids, such as anti-freeze fluids, are available.
-
-
-

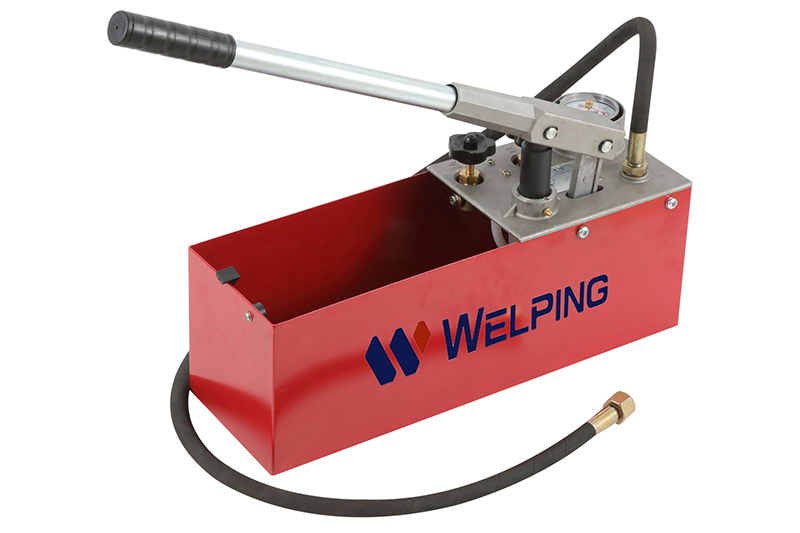

Large capacity stainless steel tank with a total volume of 12L is corrosion and rust resistant, and enjoys a long service life;
-
-
-
-

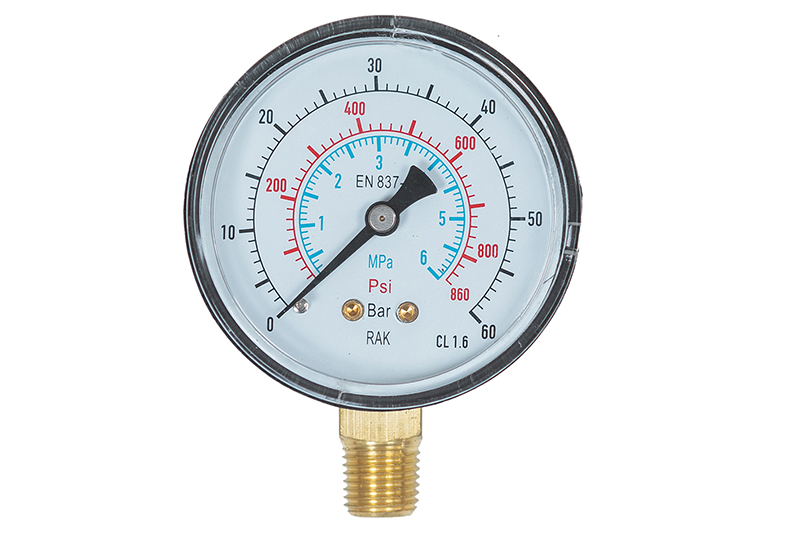

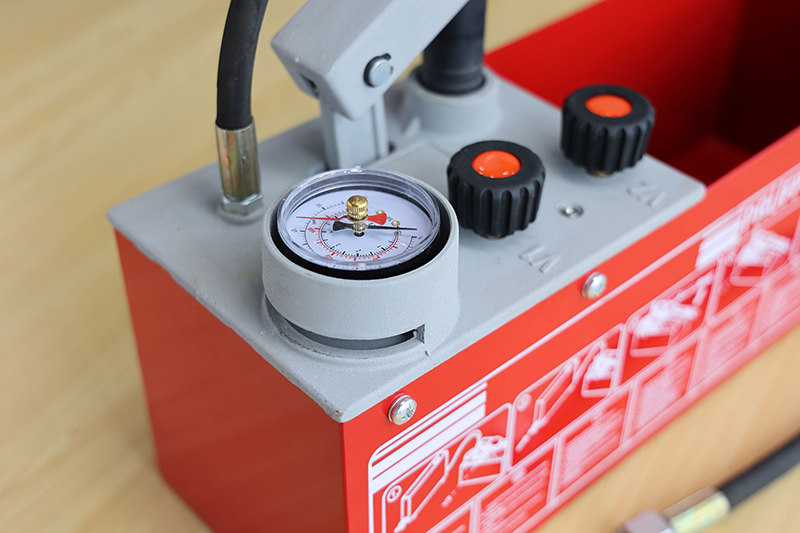

Pressure meter possesses an upgraded dial, which possesses a clearly marked scale. It can display Bar, Psi, MPa at the same time, and the number is correct to 0.1 bar.
-
-
-
-

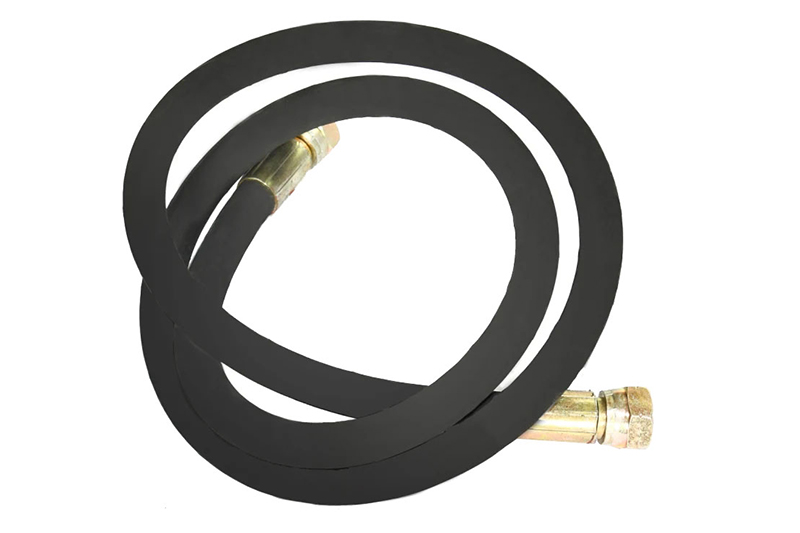

1/4"" x 53" hose is high pressure resistant, and anti-aging. It connects with 1/2" BSPP female thread, resistant to cracking, able to withstand 16mpa without bursting. It can effectively avoid the measurement error caused by the hose expansion.
-
-
-
-
Micro-filter is dust resistant in the entrance part, thus to ensure better operation.
-
