Hydraulic Butt Fusion Machine, WP160B-WP315B

63mm-315mm Plastic Pipe Welding Machine

The plastic welding machines are designed to join PE, PP, PVDF pipes and fittings by butt fusion welding process.

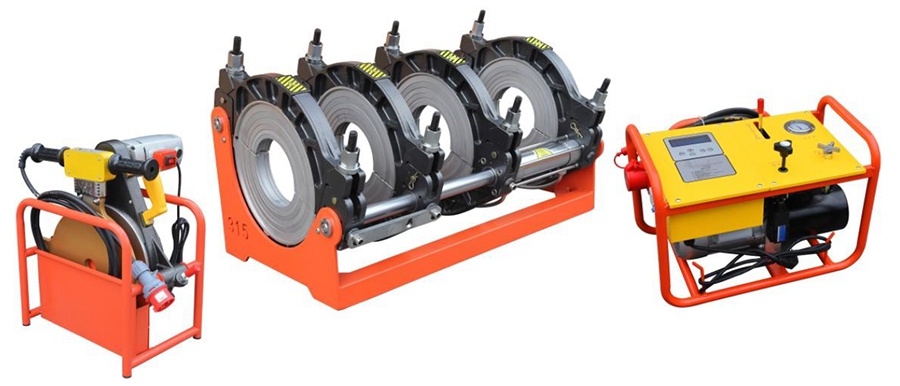

Butt Fusion Machine (63-315mm Plastic Pipe Welding)
Inquiry
Download
Model: WP160B

Welding range (mm): 63-160
Applicable pipe diameters (mm): 63-75-90-110-125-140-160
Power supply: 220V/50HZ, 1PH
Total power (kW): 3.35
Heating plate (kW): 1.5
Planing tool (kW): 1.1
Hydraulic station (kW): 0.75
Pressure adjusting range (MPa): 0-6.3
Max. temperature of heating plate (°C): 270
Temperature deviation (°C): ±5

Model: WP200B

Welding range (mm): 63-200
Applicable pipe diameters (mm): 63-75-90-110-125-140-160-180-200
Power supply: 220V/50HZ, 1PH
Total power (kW): 3.65
Heating plate (kW): 1.8
Planing tool (kW): 1.1
Hydraulic station (kW): 0.75
Pressure adjusting range (MPa): 0-6.3
Max. temperature of heating plate (°C): 270
Temperature deviation (°C): ±5

Model: WP250B

Welding range (mm): 90-250
Applicable pipe diameters (mm): 90-110-125-140-160-180-200-225-250
Power supply: 220V/50HZ, 1PH
Total power (kW): 5.05
Heating plate (kW): 2.3
Planing tool (kW): 2.0
Hydraulic station (kW): 0.75
Pressure adjusting range (MPa): 0-6.3
Max. temperature of heating plate (°C): 270
Temperature deviation (°C): ±5

Model: WP315B

Welding range (mm): 110-315
Applicable pipe diameters (mm): 110-125-140-160-180-200-225-250-280-315
Power supply: 220V/50HZ, 1PH
Total power (kW): 5.85
Heating plate (kW): 3.1
Planing tool (kW): 2.0
Hydraulic station (kW): 0.75
Pressure adjusting range (MPa): 0-6.3
Max. temperature of heating plate (°C): 270
Temperature deviation (°C): ±5

Model
WP160B
WP200B
WP250B
WP315B
Welding range(mm) 63-160 63-200 90-250 110-315
Applicable pipe diameters(mm) 63-75-90-110-125-140-160 63-75-90-110-125-140-160-180-200 90-110-125-140-160-180-200-225-250 110-125-140-160-180-200-225-250-280-315
Power supply 220V/50HZ,1PH 220V/50HZ,1PH 220V/50HZ,1PH 220V/50HZ,1PH
Total power(kW) 3.25 3.55 4.15 4.85
Heating plate(kW) 1.5KW 1.8 2.3 3.1
Planing tool(kW) 1.0 1.0 1.1 1.0
Hydraulic station(kW) 0.75 0.75 0.75 0.75
Pressure adjusting range(MPa) 0-6.3 0-6.3 0-6.3 0-6.3
Max.temperature of heating plate(°C) 270 270 270 270
Temperature deviation(°C) ±5 ±5 ±5 ±5
Customer Cases
    1. Butt Fusion Machine (63-315mm Plastic Pipe Welding)

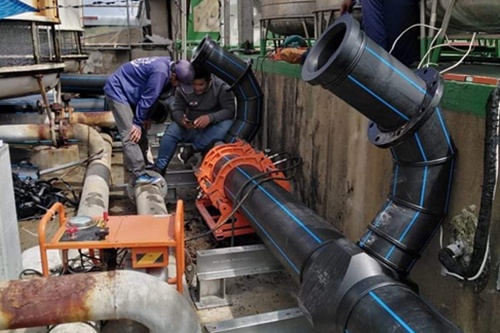

    2. A customer in Thailand was laying water pipelines for an apartment building using WELPING hydraulic butt fusion machines, which were dedicated to increasing working efficiency with simple operations and offering great accessibility under different on-site conditions.

    1. Butt Fusion Machine (63-315mm Plastic Pipe Welding)

    2. An Indian customer was testing our butt fusion equipment on the construction site. Due to easy operations and the stable performance, WELPING butt fusion machines have gained good reputation among the Indian market.

Features
  • This butt fusion machine is ideal for jointing PE, PP and PVDF pipes.
  • Integrated die-casting aluminum clamping tools and steel machine chassis with air cylinders deliver stable work performance.
  • The planing tool is configured with an independent switch to prevent accidental misoprations.
  • The pipe fusion equipment features durable and quality high-speed steel reducer inserts.
  • The heating plate is finished with PTFE coating to realize efficient and stable temperature control.
Packaging & Shipping
  • Butt Fusion Machine (63-315mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-315mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-315mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-315mm Plastic Pipe Welding)
WELPING is a professional manufacturer of fusion machines for jointing HDPE, PP, PVDF, MPP pipes/fittings. We have been focusing on the R&D, manufacturing, and sales of fusion welding equipment since 2005. Products range includes butt fusion machines and extrusion welders.
WELPING has a dedicated team of professional engineers for welding machines R& D and they can give you the most professional advice and technical support for fusion welding equipment. Our factory is equipped with complete manufacturing equipment and hence mass-produced standard products or simply customized products can be delivered within 10-15 days.
Since the very beginning, quality and cost-effectiveness are our benchmarks to develop new products. Adhering to the principle of high quality, we offer a variety of fusion welding machines to meet requirements in different scenarios and from different industries.
