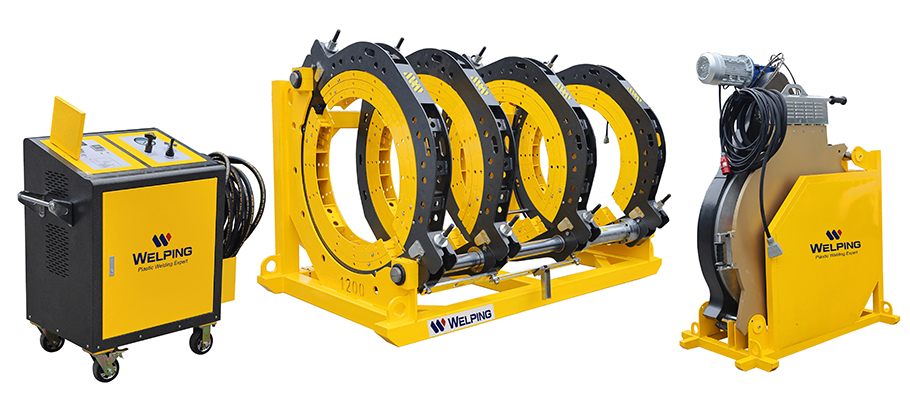

Hydraulic Butt Fusion Machine, WP1200A

630mm-1200mm Plastic Pipe Welding Machine

The butt fusion machine is ideally used for butt welding of HDPE, PP, PVDF, MPP pipes and fittings.

Butt Fusion Machine (630-1200mm Plastic Pipe Welding)
  • Model: WP1200A
  • Welding range: 630-1200 mm
  • Applicable pipe diameters: 1000-1100-1200 mm
  • Optional reducers: 630-710-800-900 mm
  • Power supply: 380 V/50Hz, 3PH
  • Total power: 30.5 kW
  • Heating plate: 22.5 kW
  • Planing tool: 4 kW
  • Hydraulic station: 4 kW
  • Pressure adjusting range: 0-16 MPa
  • Max temperature of heating plate: 270 ºC
  • Temperature deviation: ±7 ºC
Inquiry
Download

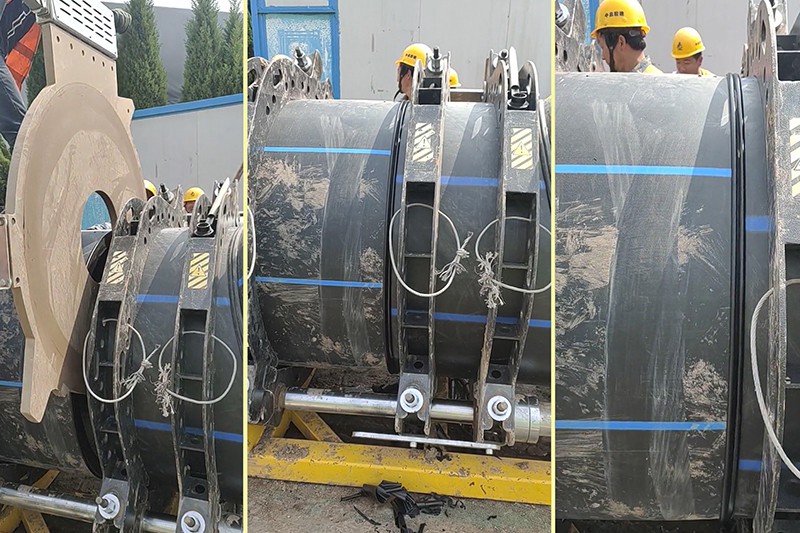

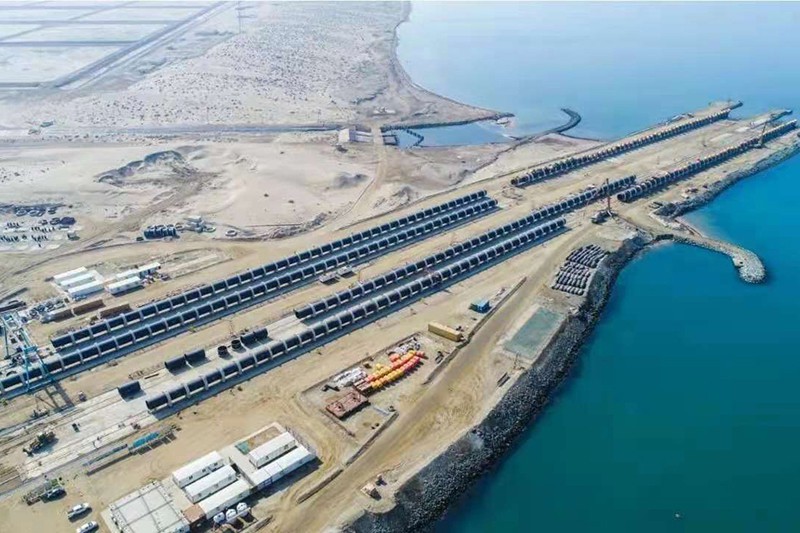

Application

WELPING hydraulic butt fusion welding machines are ideally suitable for welding HDPE, PP, PVDF, MPP pipes.

  • Butt Fusion Machine (630-1200mm Plastic Pipe Welding)
  • Butt Fusion Machine (630-1200mm Plastic Pipe Welding)
  • Butt Fusion Machine (630-1200mm Plastic Pipe Welding)
Features
    1. Butt Fusion Machine (630-1200mm Plastic Pipe Welding)

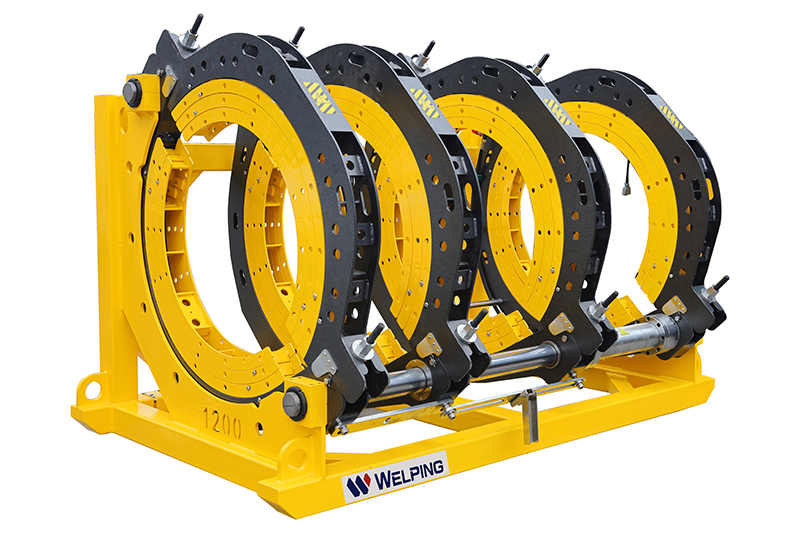

    2. The pipeline butt welding equipment features a sturdy and distortion-free machine frame which is ideally suitable for heavy-duty operations.

    1. Butt Fusion Machine (630-1200mm Plastic Pipe Welding)

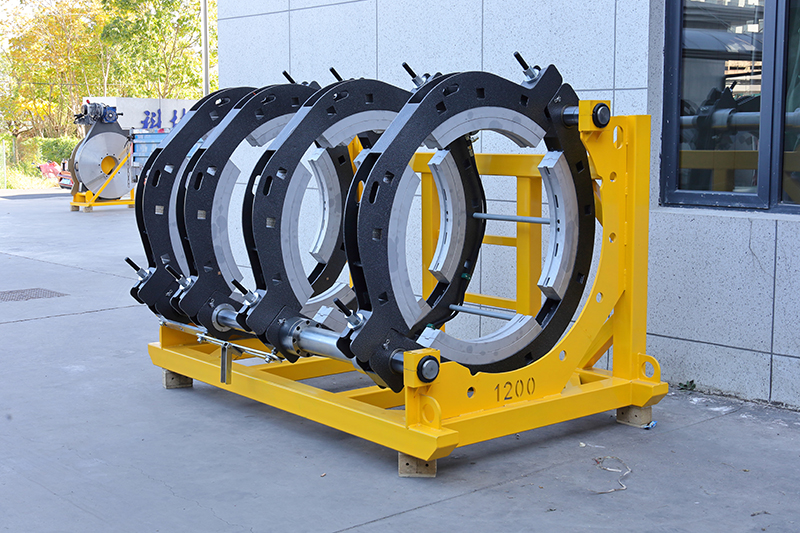

    2. The butt fusion machine frame features high strength, outstanding precision, and lighter components weight for lower work load and better welding performance.

    1. Butt Fusion Machine (630-1200mm Plastic Pipe Welding)

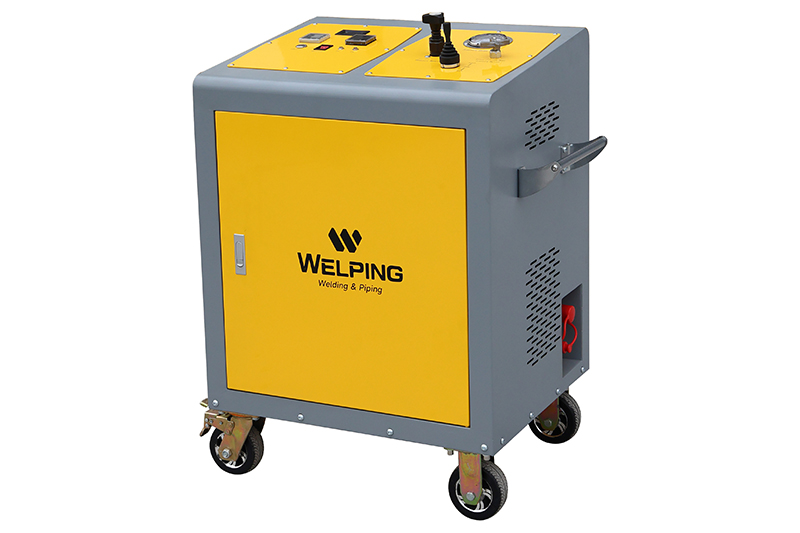

    2. The hydraulic station is designed with an enclosed structure to prevent inside components from dirt or water. LCD display panel and data logging device are optional upon request.

    1. Butt Fusion Machine (630-1200mm Plastic Pipe Welding)

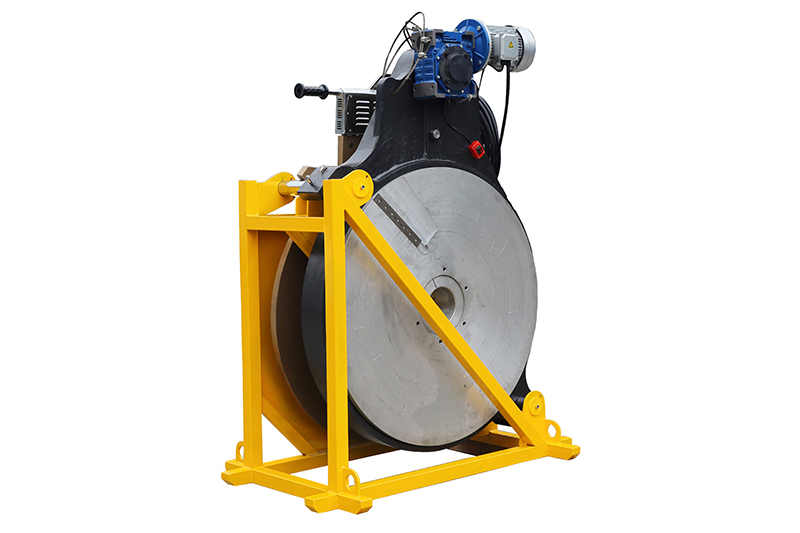

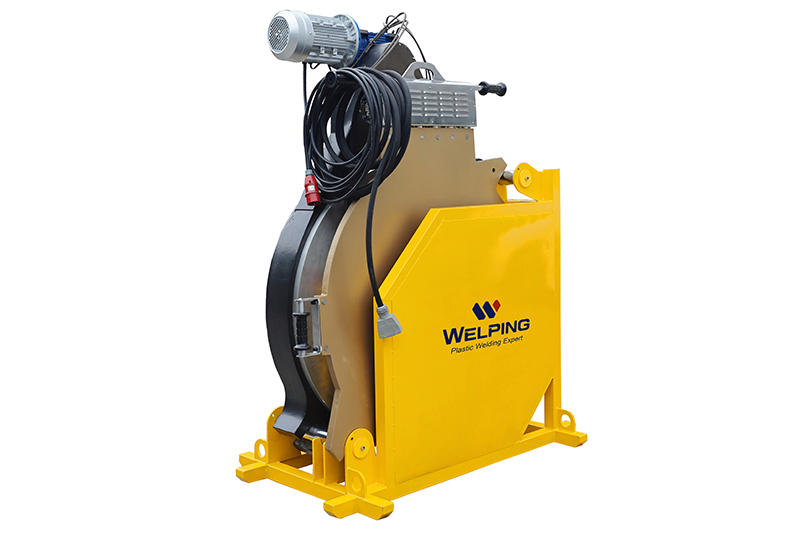

    2. Copper coil motor has a self-locking system to prevent damages caused by misoperation. High-speed steel reducer inserts with double cutting edges are highly durable.

    1. Butt Fusion Machine (630-1200mm Plastic Pipe Welding)

    2. High quality resistance wire delivers efficient and even heating performance. The heating element is applied with superior Dupont or Daikin coating.

Packaging & Shipping
  • Butt Fusion Machine (630-1200mm Plastic Pipe Welding)
  • Butt Fusion Machine (630-1200mm Plastic Pipe Welding)
  • Butt Fusion Machine (630-1200mm Plastic Pipe Welding)
  • Butt Fusion Machine (630-1200mm Plastic Pipe Welding)
WELPING is a professional manufacturer of fusion machines for jointing HDPE, PP, PVDF, MPP pipes/fittings. We have been focusing on the R&D, manufacturing, and sales of fusion welding equipment since 2005. Products range includes butt fusion machines and extrusion welders.
WELPING has a dedicated team of professional engineers for welding machines R& D and they can give you the most professional advice and technical support for fusion welding equipment. Our factory is equipped with complete manufacturing equipment and hence mass-produced standard products or simply customized products can be delivered within 10-15 days.
Since the very beginning, quality and cost-effectiveness are our benchmarks to develop new products. Adhering to the principle of high quality, we offer a variety of fusion welding machines to meet requirements in different scenarios and from different industries.
