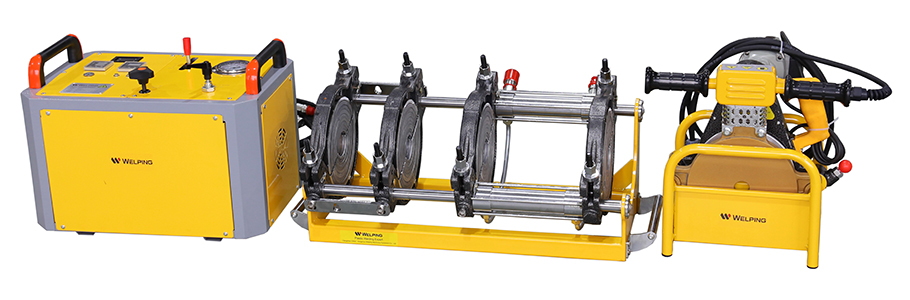

Hydraulic Butt Fusion Machine, WP200A

63mm-200mm Plastic Pipe Welding Machine

The butt welding machine performs the process of butt fusion welding of plastic pipes and fittings made from HDPE, PP, PVDF, MPP materials.

Butt Fusion Machine (63-200mm Plastic Pipe Welding)
  • Model: WP200A
  • Welding range: 63-200 mm
  • Applicable pipe diameters: 63-75-90-110-125-140-160-180-200 mm
  • Power supply: 220 V/50Hz, 1PH
  • Total power: 3.65 kW
  • Heating plate: 1.8 kW
  • Planing tool: 1.1 kW
  • Hydraulic station : 0.75 kW
  • Pressure adjusting range: 0-8 MPa
  • Max temperature of heating plate: 270 ºC
  • Temperature deviation: ±5 ºC
Inquiry
Download
Application

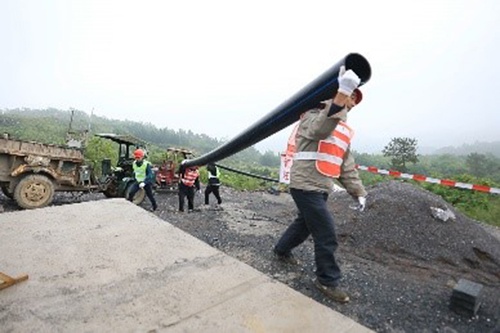

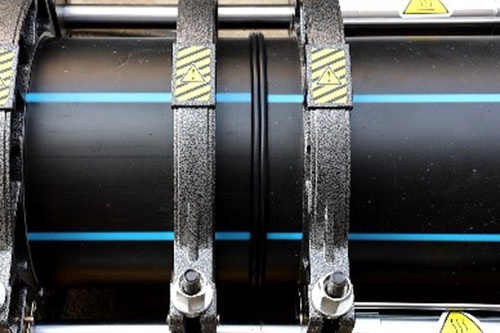

WP200A hydraulic butt fusion equipment is ideal for jointing HDPE, PP, PVDF, MPP pipes.

  • Butt Fusion Machine (63-200mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-200mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-200mm Plastic Pipe Welding)
Features
    1. Butt Fusion Machine (63-200mm Plastic Pipe Welding)

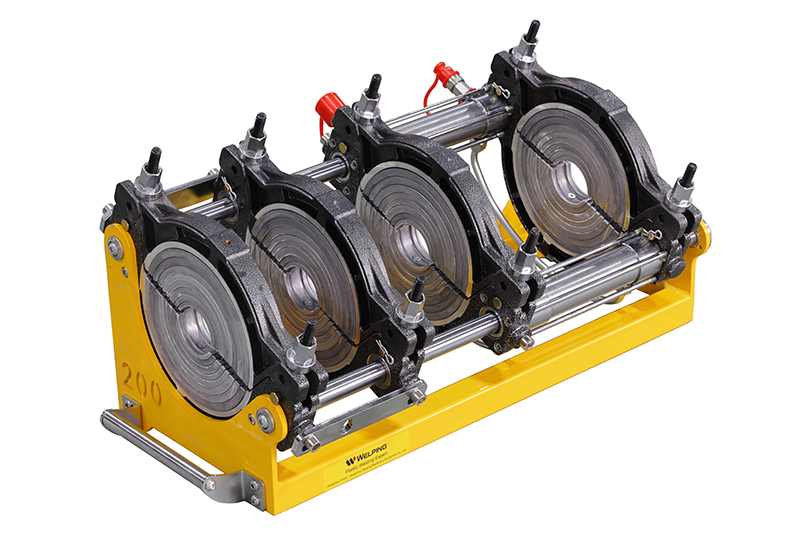

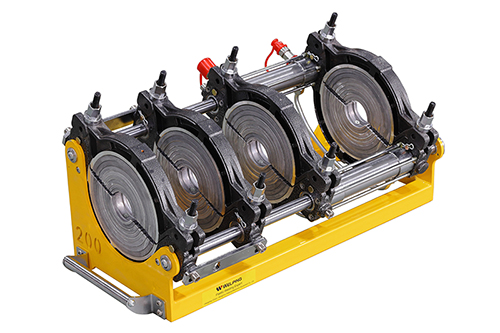

    2. The hydraulic butt fusion machine features a sturdy and distortion-free machine frame which is ideally suitable for heavy-duty operations.

    1. Butt Fusion Machine (63-200mm Plastic Pipe Welding)

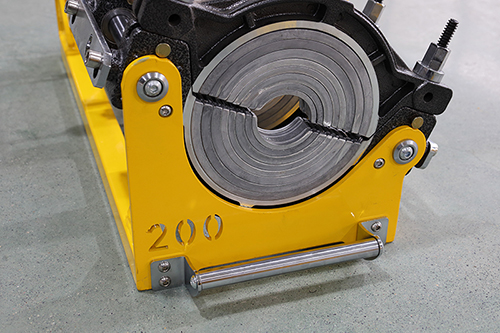

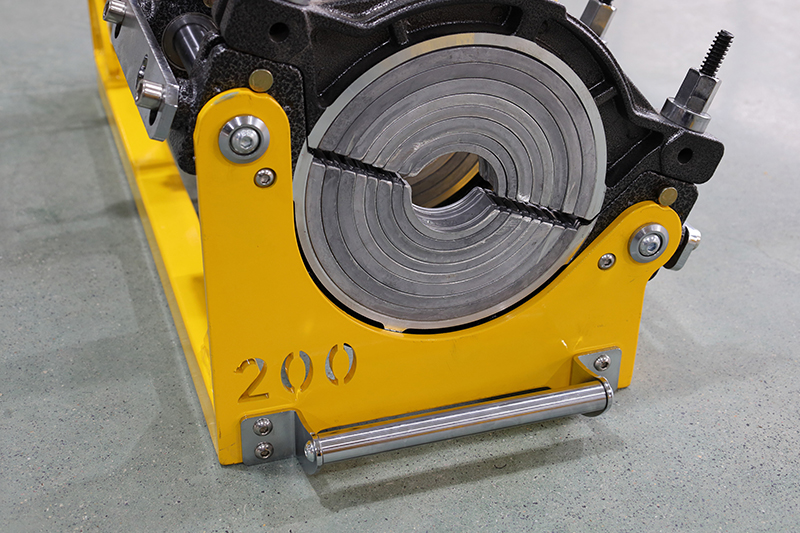

    2. Steel plates of the machine frame are precisely cut to achieve high precision and aesthetic appearance.

    1. Butt Fusion Machine (63-200mm Plastic Pipe Welding)

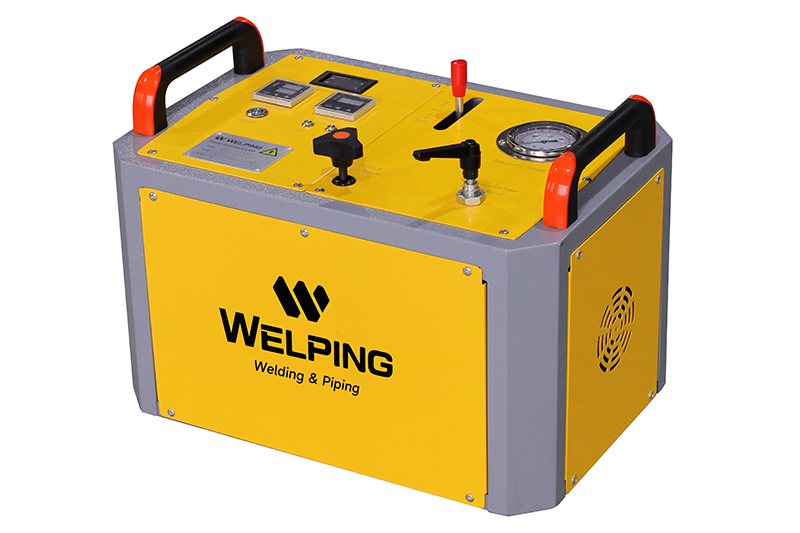

    2. Enclosed hydraulic station is designed to prevent dirt or water. LCD display panel and data logging device are optional upon request.

    1. Butt Fusion Machine (63-200mm Plastic Pipe Welding)

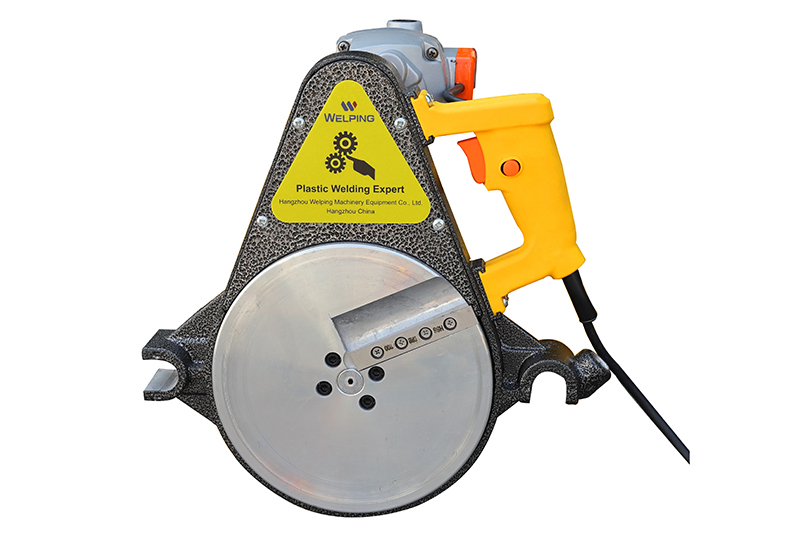

    2. The copper coil motor features a self-locking system for preventing misoperation. Steel reducer inserts have double cutting edges to offer excellent durability and high-speed operations.

    1. Butt Fusion Machine (63-200mm Plastic Pipe Welding)

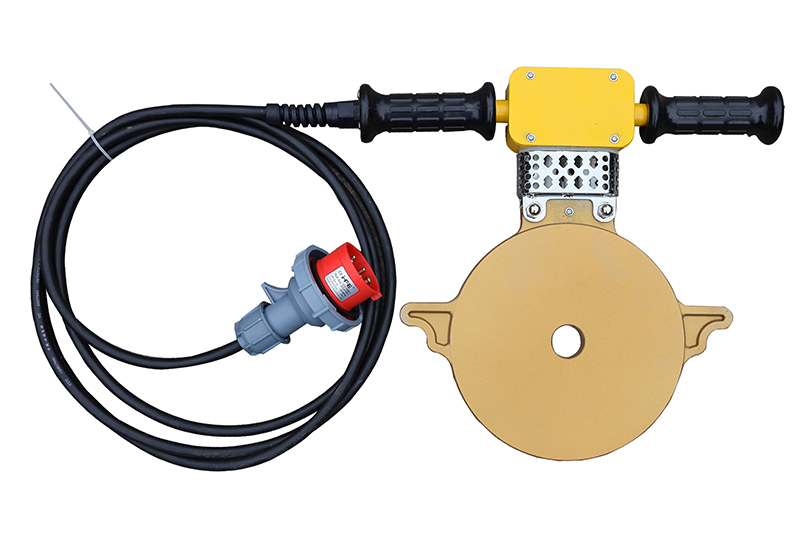

    2. The pipe butt fusion equipment employs superior resistance wire for efficient and even heating performance. The heating element is finished with high-quality Dupont or Daikin coating.

Packaging & Shipping
  • Butt Fusion Machine (63-200mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-200mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-200mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-200mm Plastic Pipe Welding)
WELPING is a professional manufacturer of fusion machines for jointing HDPE, PP, PVDF, MPP pipes/fittings. We have been focusing on the R&D, manufacturing, and sales of fusion welding equipment since 2005. Products range includes butt fusion machines and extrusion welders.
WELPING has a dedicated team of professional engineers for welding machines R& D and they can give you the most professional advice and technical support for fusion welding equipment. Our factory is equipped with complete manufacturing equipment and hence mass-produced standard products or simply customized products can be delivered within 10-15 days.
Since the very beginning, quality and cost-effectiveness are our benchmarks to develop new products. Adhering to the principle of high quality, we offer a variety of fusion welding machines to meet requirements in different scenarios and from different industries.
