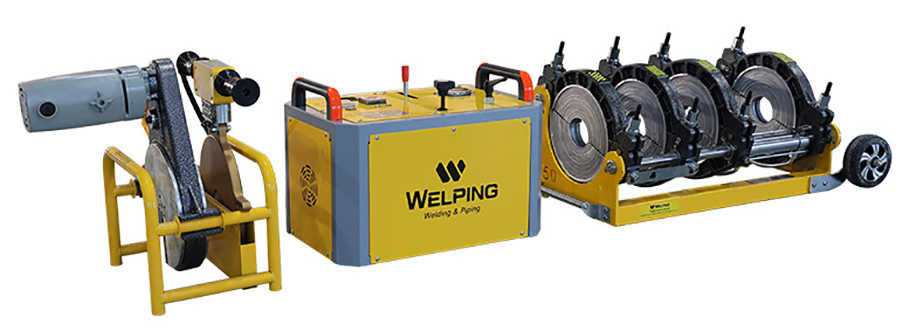

Hydraulic Butt Fusion Machine, WP250A

63-250mm Plastic Pipe Welding Machine

The plastic welding machine makes plastic pipes and fittings made from HDPE, PP, PVDF and MPP materials are joined by butt fusion welding.

Butt Fusion Machine (63-250mm Plastic Pipe Welding)
  • Model: WP250A
  • Welding range: 63-250 mm
  • Applicable pipe diameters: 90-110-125-140-160-180-200-225-250 mm
  • Optional reducers: 63-75mm
  • Power supply: 220V/50 Hz, 1PH
  • Total power: 5.05 kW
  • Heating plate: 2.3 kW
  • Planing tool: 2.0 kW
  • Hydraulic station: 0.75 kW
  • Pressure adjusting range: 0-8 MPa
  • Max temperature of heating plate: 270 ºC
  • Temperature deviation: ±5 ºC
Inquiry
Download
Application

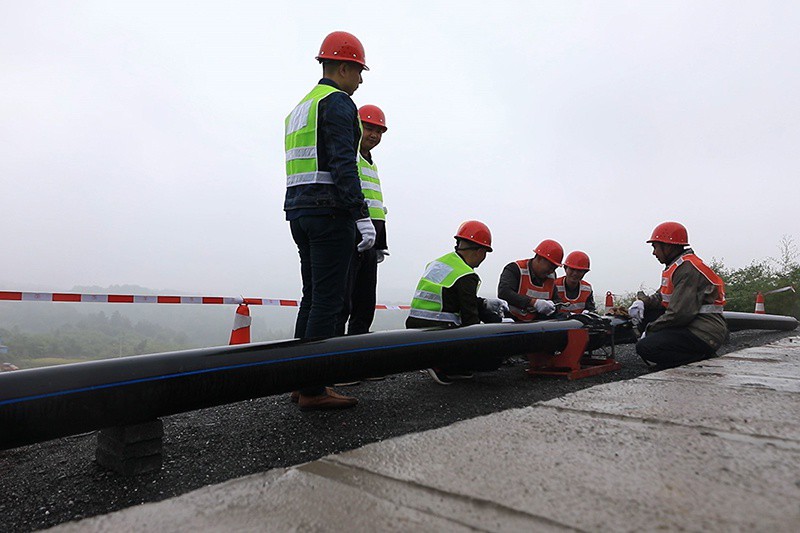

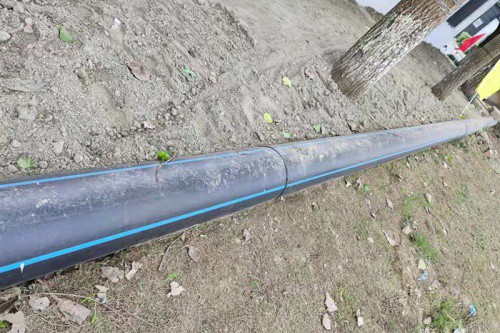

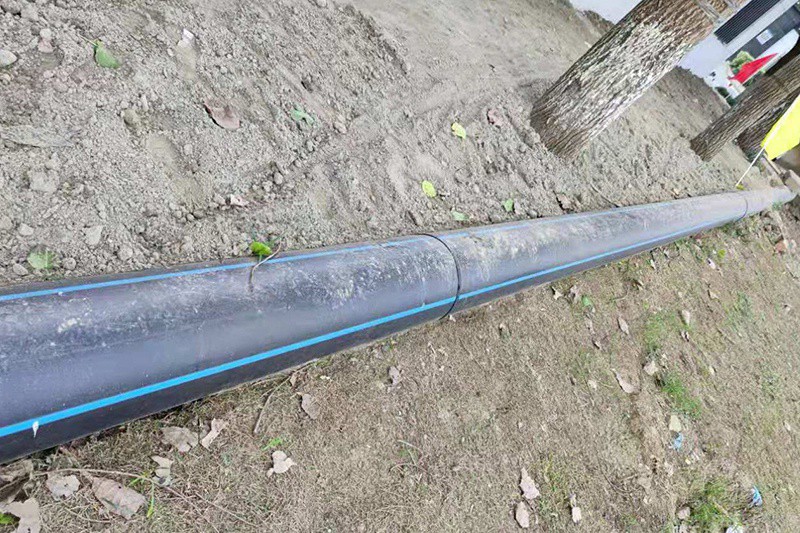

WP250A hydraulic butt fusion welding machine is suitable for jointing HDPE, PP, PVDF, MPP pipes.

  • Butt Fusion Machine (63-250mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-250mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-250mm Plastic Pipe Welding)
Features
    1. Butt Fusion Machine (63-250mm Plastic Pipe Welding)

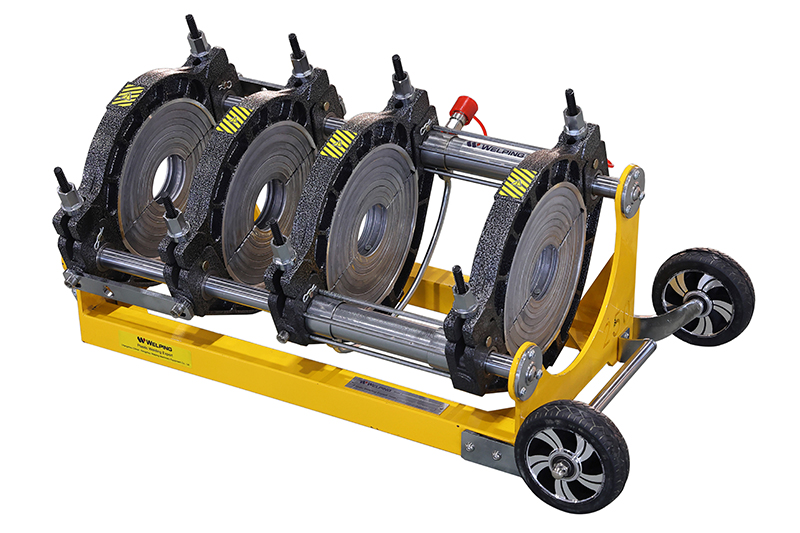

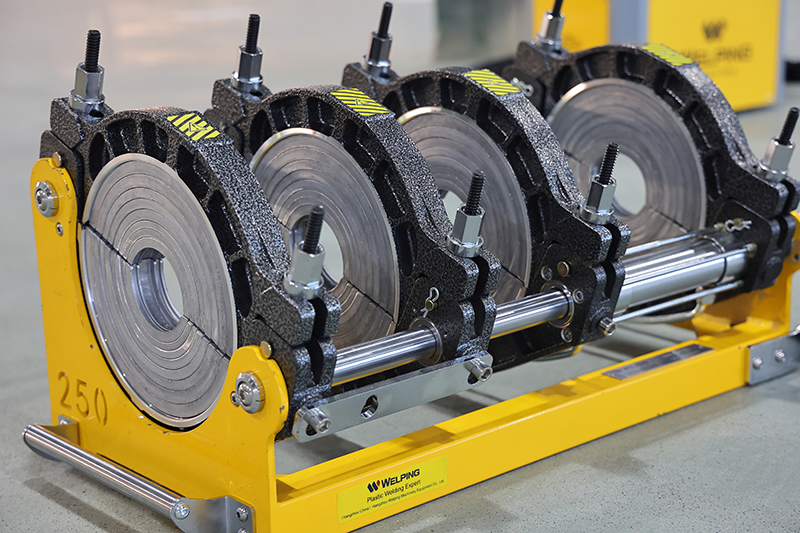

    2. The butt-welding machine frame is sturdy and distortion-free, ideally suitable for heavy-duty applications.

    1. Butt Fusion Machine (63-250mm Plastic Pipe Welding)

    2. Steel plates of the machine frame are precisely cut to achieve high precision and aesthetic appearance.

    1. Butt Fusion Machine (63-250mm Plastic Pipe Welding)

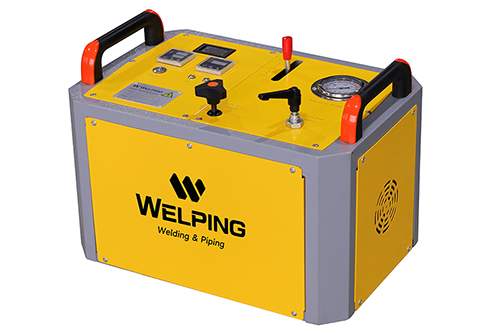

    2. Enclosed hydraulic station is designed to prevent inside components from dirt or water. LCD display panel and data logging device are optional upon request.

    1. Butt Fusion Machine (63-250mm Plastic Pipe Welding)

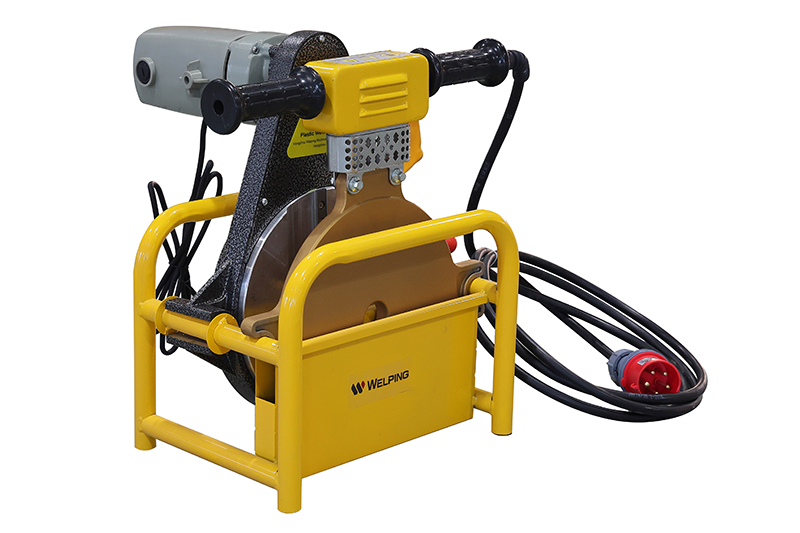

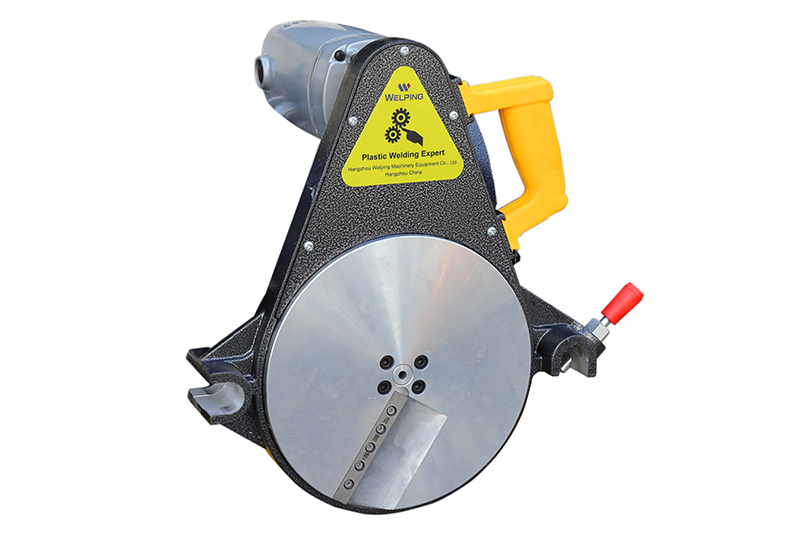

    2. Copper coil motor has a self-locking system to prevent damages caused by misoperation. High-speed steel reducer inserts with double cutting edges are highly durable.

    1. Butt Fusion Machine (63-250mm Plastic Pipe Welding)

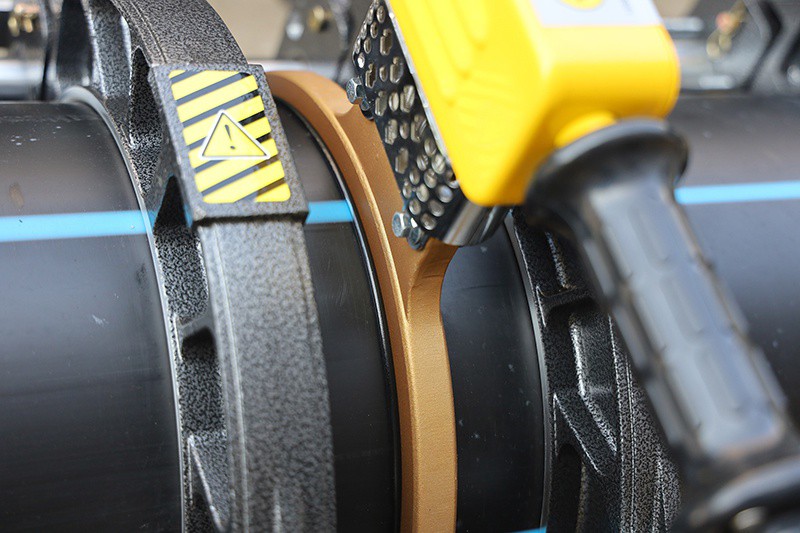

    2. High quality resistance wire delivers efficient and even heating performance. The heating element is applied with superior Dupont or Daikin coating.

Packaging & Shipping
  • Butt Fusion Machine (63-250mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-250mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-250mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-250mm Plastic Pipe Welding)
WELPING is a professional manufacturer of fusion machines for jointing HDPE, PP, PVDF, MPP pipes/fittings. We have been focusing on the R&D, manufacturing, and sales of fusion welding equipment since 2005. Products range includes butt fusion machines and extrusion welders.
WELPING has a dedicated team of professional engineers for welding machines R& D and they can give you the most professional advice and technical support for fusion welding equipment. Our factory is equipped with complete manufacturing equipment and hence mass-produced standard products or simply customized products can be delivered within 10-15 days.
Since the very beginning, quality and cost-effectiveness are our benchmarks to develop new products. Adhering to the principle of high quality, we offer a variety of fusion welding machines to meet requirements in different scenarios and from different industries.
