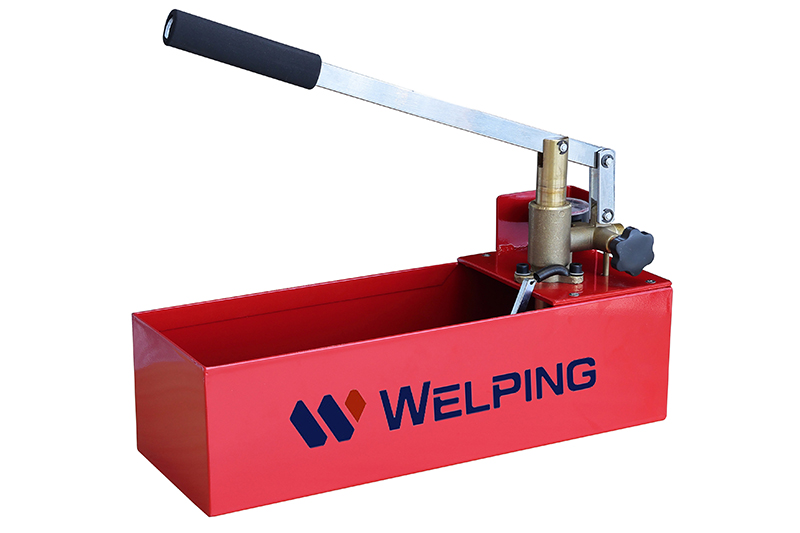

Manual Hydrostatic Test Pump, HSY30-5/5S

  • Manual Hydrostatic Test Pump, HSY30-5/5S
  • Manual Hydrostatic Test Pump, HSY30-5/5S
Inquiry

WELPING offers a wide range of manual hydrostatic test pumps for hydraulic and pumping systems for various demands.

Application
  • Manual Hydrostatic Test Pump, HSY30-5/5S
  • Manual Hydrostatic Test Pump, HSY30-5/5S

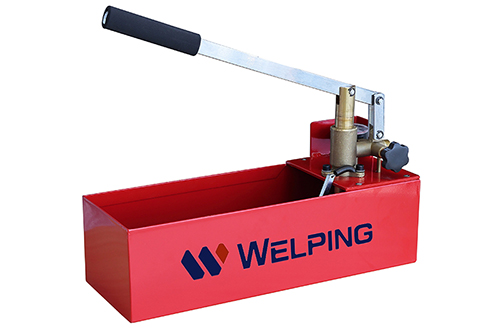

    Model: HSY30-5
  • Testing range: 0-60 bar ( 860 psi,6 MPa )
  • Tank capacity: 12L
  • Connections: 1/2" BSPP
  • Water tank: Steel
  • Volume/stroke: ≈45 ml
  • Piston: Brass
  • Lift of pump: 5m

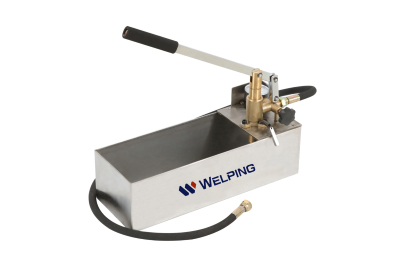

    Model: HSY30-5S
  • Testing range: 0-60 bar ( 860 psi,6 MPa )
  • Tank capacity: 12L
  • Connections: 1/2" BSPP
  • Water tank: Stainless Steel
  • Volume/stroke: ≈45 ml
  • Piston: Brass
  • Lift of pump: 5m
Model
HSY30-5
HSY30-5S
Testing range 0-60 bar ( 860 psi,6 MPa ) 0-60 bar ( 860 psi,6 MPa )
Tank capacity 12L 12L
Connections 1/2" BSPP 1/2" BSPP
Water tank Steel Stainless Steel
Volume/stroke ≈45 ml ≈45 ml
Piston Brass Brass
Lift of pump 5m 5m
Features

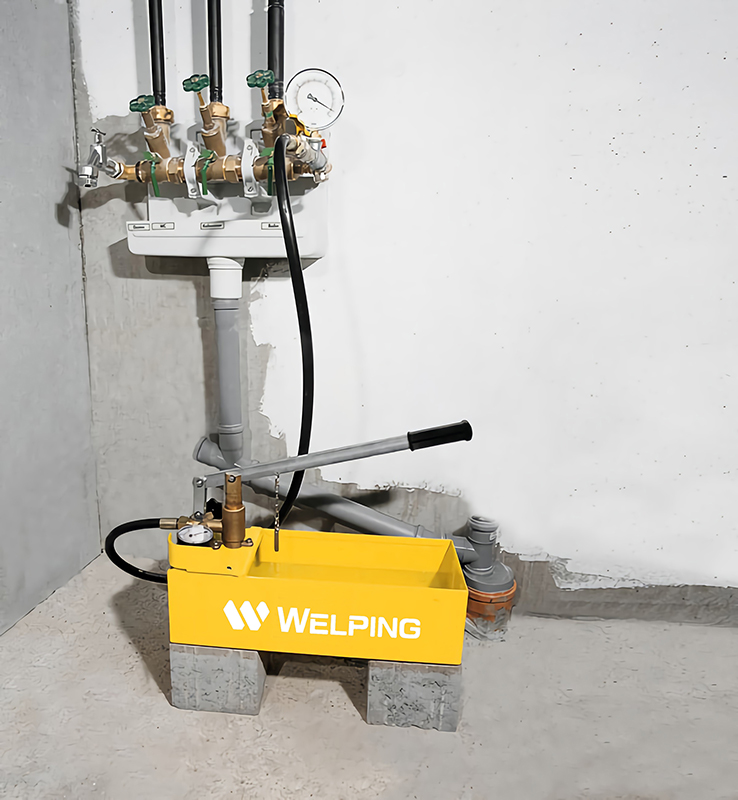

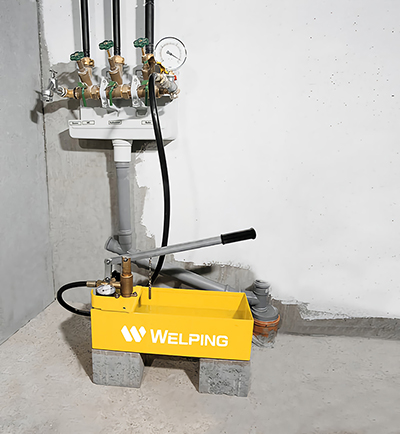

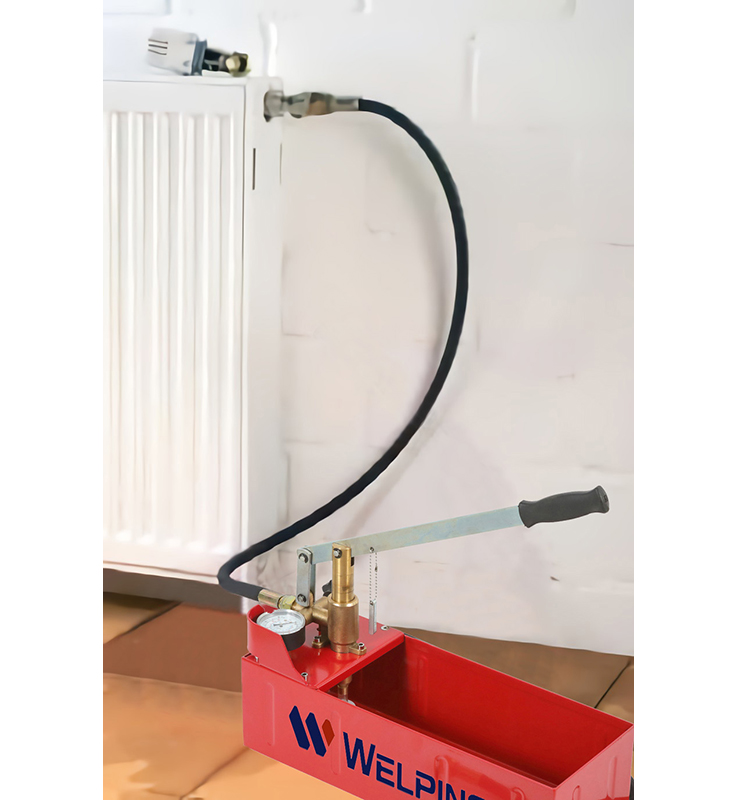

  • The sturdy and fine test pump can be used for leak and pressure testing of water pipes and containers up to 60bar / 5 MPA / 726 PSI. This test pump can also be applied for transferring, filling and pressurization of closed systems;
  • Large capacity tank with a total volume of 12L is always coated with anti-low temperature coating, ensuring longer service life;
  • Brass check valve is applied to precisely control backflow and improve pressure measurement accuracy;
  • Optional glycerin-filled pressure gauge with fine scale (0.1 bar);
  • Resistance indicator shows preset inspiratory pressure for easier detection of pressure losses and higher efficiency;
  • Heated fluids in confined spaces, such as hoses, may lead to a rise in pressure. Our 1/4""×53" high pressure resistant hose saves your concerns of measurement error due to the thermal expansion;
  • Single valve system ensures simple structure and easy operation;
  • Pumped water and non-acidic fluids, such as anti-freeze fluids, are available.
    1. Manual Hydrostatic Test Pump, HSY30-5/5S

    2. Large capacity tank with a total volume of 12L is always coated with anti-low temperature coating, which is corrosion and rust resistant, and enjoys a long service life;

    1. Manual Hydrostatic Test Pump, HSY30-5/5S

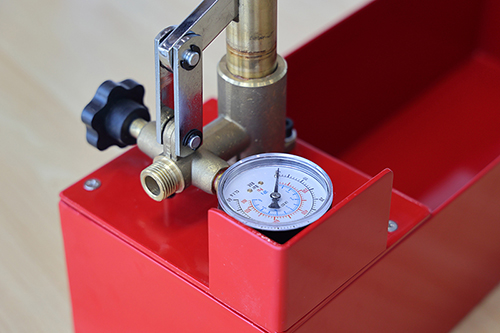

    2. Pressure meter possesses an upgraded dial, which possesses a clearly marked scale. It can display Bar, Psi, MPa at the same time, and the number is correct to 0.1 bar.

    1. Manual Hydrostatic Test Pump, HSY30-5/5S

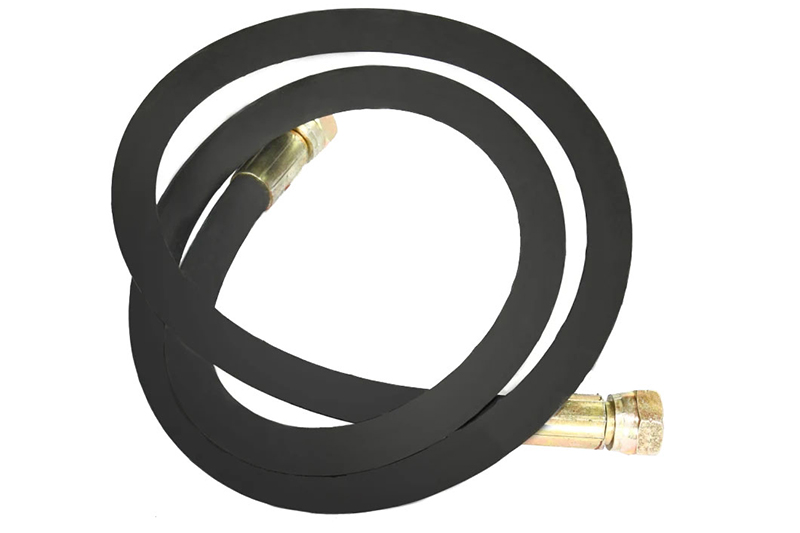

    2. 1/4"" x 53" hose is high pressure resistant, and anti-aging. It connects with 1/2" BSPP female thread, resistant to cracking, able to withstand 16mpa without bursting. It can effectively avoid the measurement error caused by the hose expansion.

    1. Manual Hydrostatic Test Pump, HSY30-5/5S

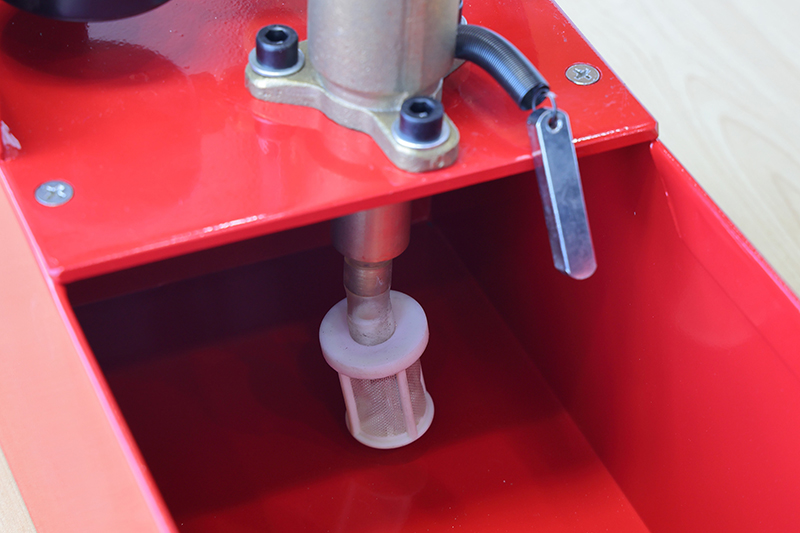

    2. Micro-filter is dust resistant in the entrance part, thus to ensure better operation.
