Hydraulic Butt Fusion Machine, WP355A

90mm-355mm Plastic Pipe Welding Machine

The pipe welding machine performs the process of joining plastic pipes and fittings made from HDPE, PP, PVDF and MPP materials by butt fusion welding.

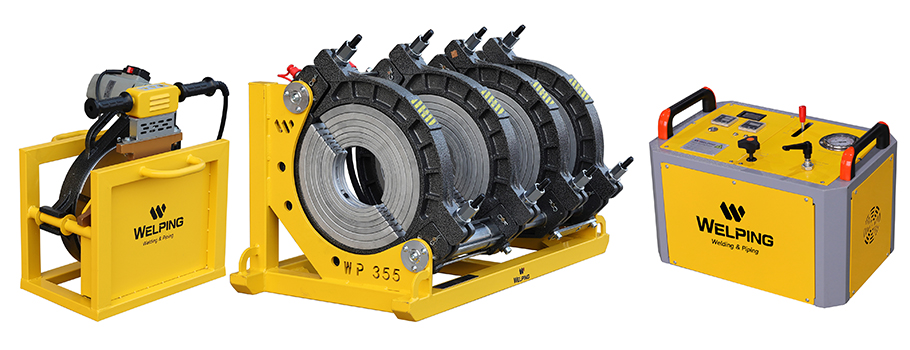

Butt Fusion Machine (90-355mm Plastic Pipe Welding)
  • Model: WP355A
  • Welding range: 90-355 mm
  • Applicable pipe diameters: 160-180-200-225-250-280-315-355 mm
  • Optional reducers: 90-110-125-140mm
  • Power supply: 220V/380 V, 50Hz, 1PH/3PH
  • Total power: 5.45 Kw
  • Heating plate: 3.6 kW
  • Planing tool: 2.0 kw
  • Hydraulic station: 0.75 kW
  • Pressure adjusting range: 0-8 MPa
  • Max temperature of heating plate: 270 ºC
  • Temperature deviation: ±5 ºC
Inquiry
Download
Application

WELPING butt fusion welding machine WP355A is ideal for jointing HDPE, PP, PVDF, MPP pipes.

  • Butt Fusion Machine (90-355mm Plastic Pipe Welding)
  • Butt Fusion Machine (90-355mm Plastic Pipe Welding)
  • Butt Fusion Machine (90-355mm Plastic Pipe Welding)
Features
    1. Butt Fusion Machine (90-355mm Plastic Pipe Welding)

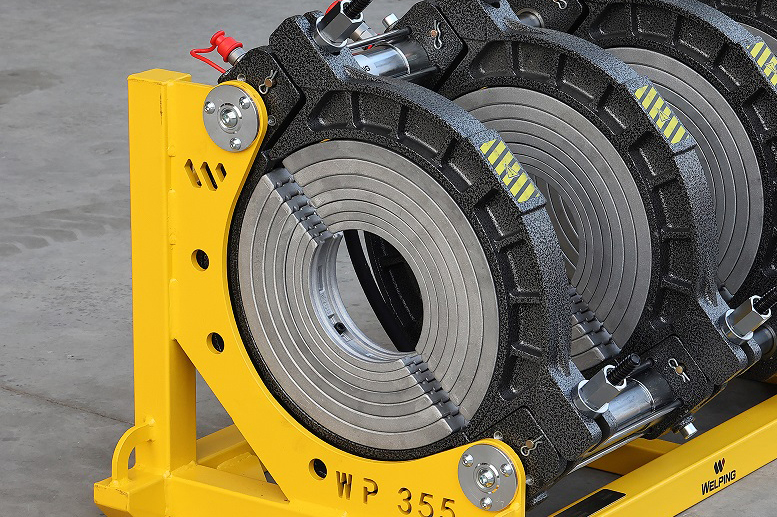

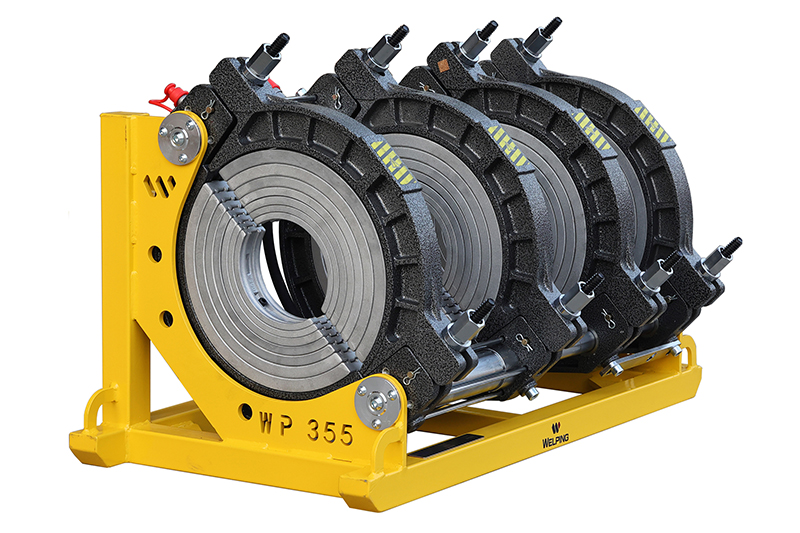

    2. The butt fusion equipment features a sturdy and distortion-free machine frame which is ideally suitable for heavy-duty operations.

    1. Butt Fusion Machine (90-355mm Plastic Pipe Welding)

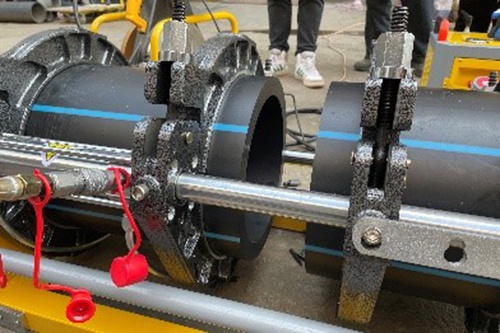

    2. Steel plates of the machine frame are precisely cut to achieve high dimensional precision and aesthetic appearance.

    1. Butt Fusion Machine (90-355mm Plastic Pipe Welding)

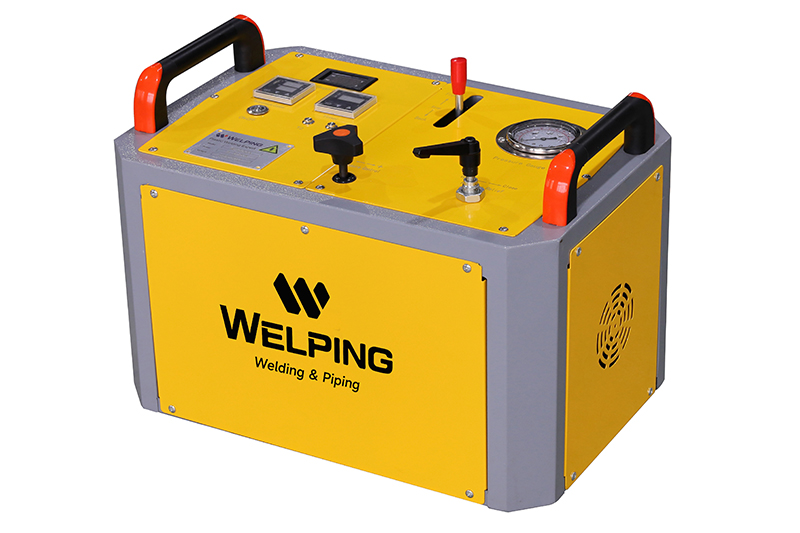

    2. The hydraulic station is designed with an enclosed structure to prevent dirt or water. LCD display panel and data logging device are optional upon request.

    1. Butt Fusion Machine (90-355mm Plastic Pipe Welding)

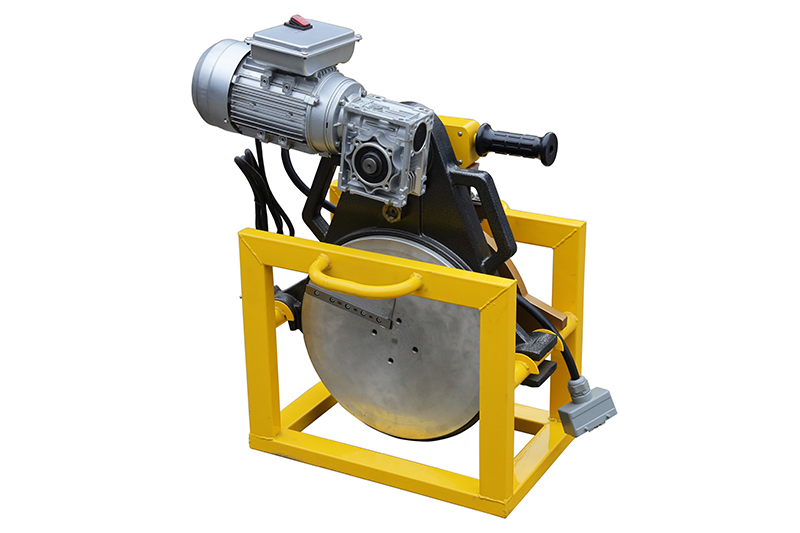

    2. Copper coil motor has a self-locking system to prevent damages caused by misoperation. High-speed steel reducer inserts with double cutting edges are highly durable.

    1. Butt Fusion Machine (90-355mm Plastic Pipe Welding)

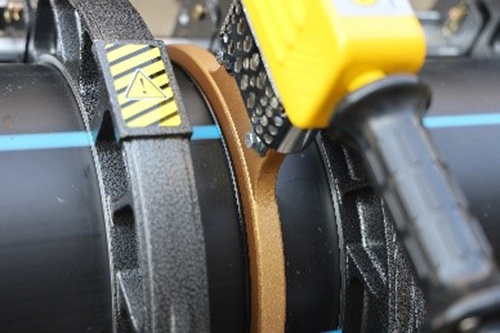

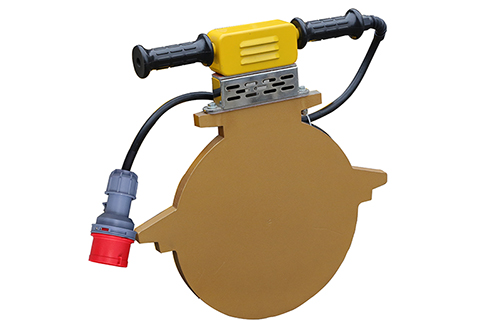

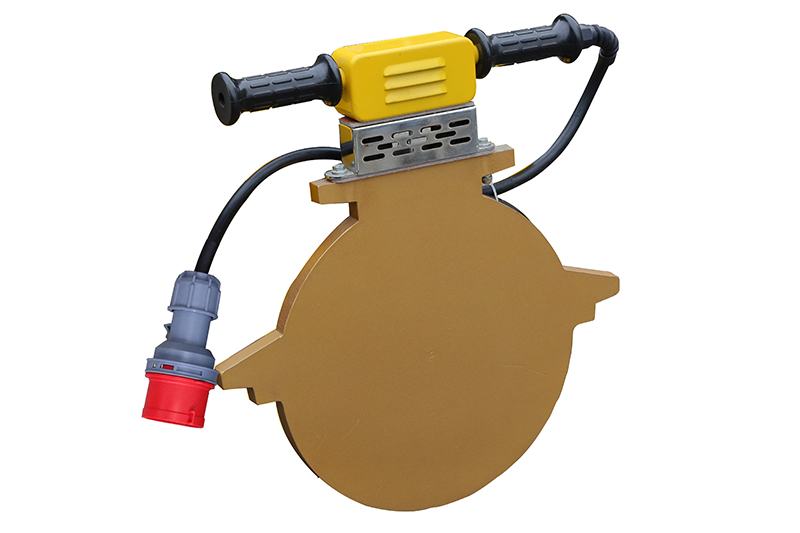

    2. The pipe butt fusion equipment employs superior resistance wire for efficient and even heating performance. The heating element is finished with high-quality Dupont or Daikin coating.

Packaging & Shipping
  • Butt Fusion Machine (90-355mm Plastic Pipe Welding)
  • Butt Fusion Machine (90-355mm Plastic Pipe Welding)
  • Butt Fusion Machine (90-355mm Plastic Pipe Welding)
  • Butt Fusion Machine (90-355mm Plastic Pipe Welding)
WELPING is a professional manufacturer of fusion machines for jointing HDPE, PP, PVDF, MPP pipes/fittings. We have been focusing on the R&D, manufacturing, and sales of fusion welding equipment since 2005. Products range includes butt fusion machines and extrusion welders.
WELPING has a dedicated team of professional engineers for welding machines R& D and they can give you the most professional advice and technical support for fusion welding equipment. Our factory is equipped with complete manufacturing equipment and hence mass-produced standard products or simply customized products can be delivered within 10-15 days.
Since the very beginning, quality and cost-effectiveness are our benchmarks to develop new products. Adhering to the principle of high quality, we offer a variety of fusion welding machines to meet requirements in different scenarios and from different industries.
