V Head Pipe Stand, 1107 series

V Head Pipe Stand, 1107 series
Inquiry
  • Heavy type V head: Pipe stand with durable V head, suitable for pipes ranging from 1/8-12 inches (3.2-304.8cm)
  • Corrosion and dust resistant steel structure, allowing the weight of 2500lb (1134kg).

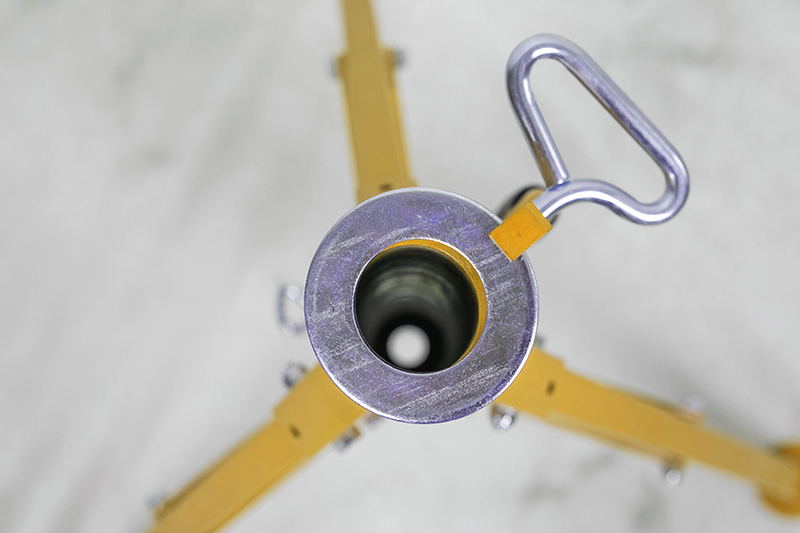

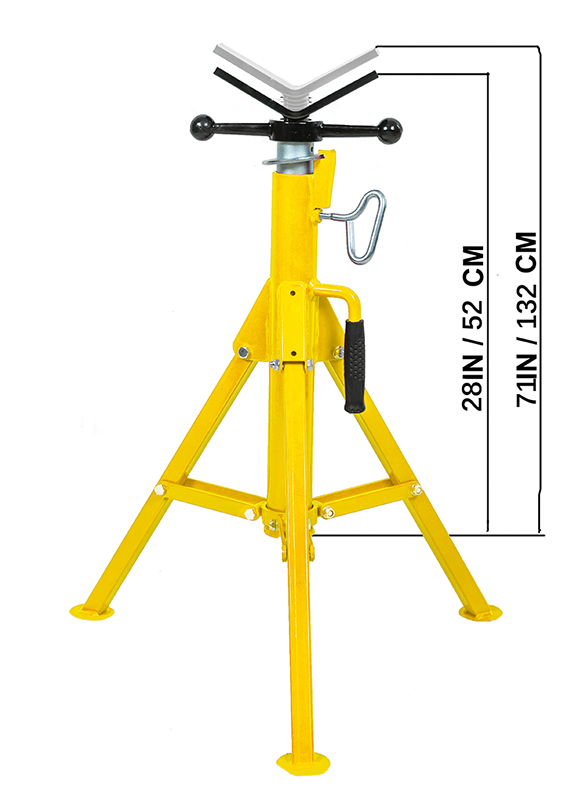

  • Adjustable structure: Three stands with different height adjustment range from 50.5 to 132cm to support pipe for a variety of uses. Locking ring allows for quick vertical height adjustments.
  • Folding and portable design: Foldable stand well saves the space, and its slip resistant rubber handle is easy to carry.
  • Strong stability: The tripod design allows excellent stability. And tension plate supplies good horizontal supporting. Besides, it also has widened round foot pads.

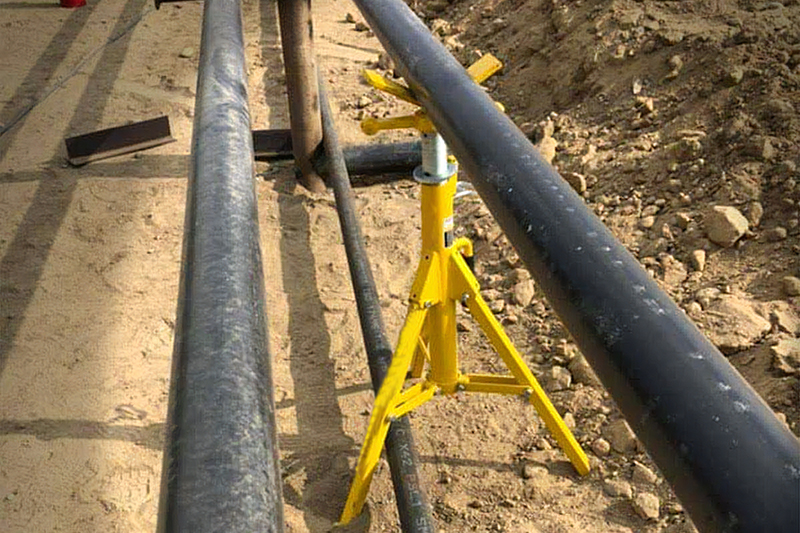

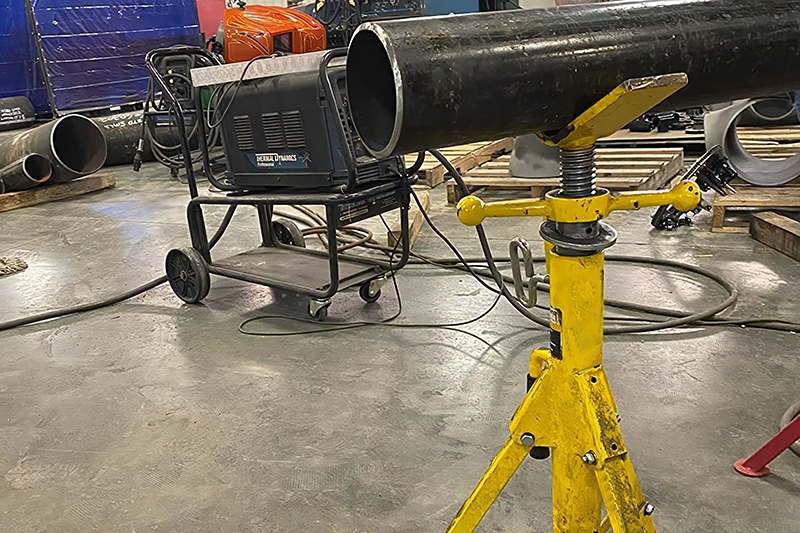

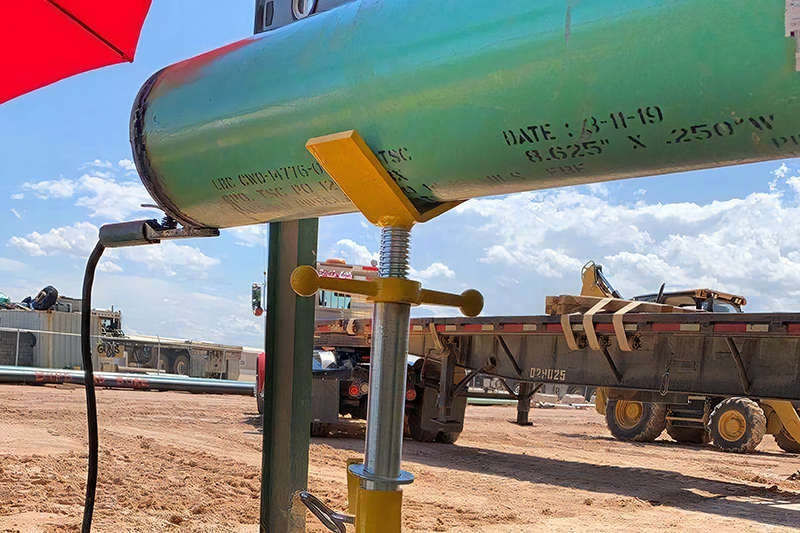

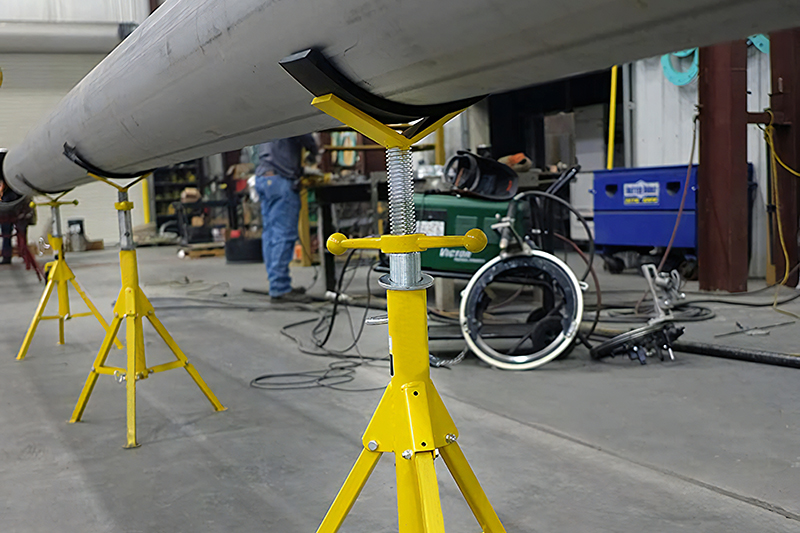

Application
  • V Head Pipe Stand, 1107 series
  • V Head Pipe Stand, 1107 series
  • V Head Pipe Stand, 1107 series
  • V Head Pipe Stand, 1107 series
    Model No.: 1107S
  • Description: V head pipe stand
  • Height adjustment(in.): 20-36 ½
  • Low - High(mm): 50.5-93.5
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 2500
  • Max weight capacity(kg): 1134
  • Weight(kg): 11.4
    Model No.: 1107M
  • Description: V head pipe stand

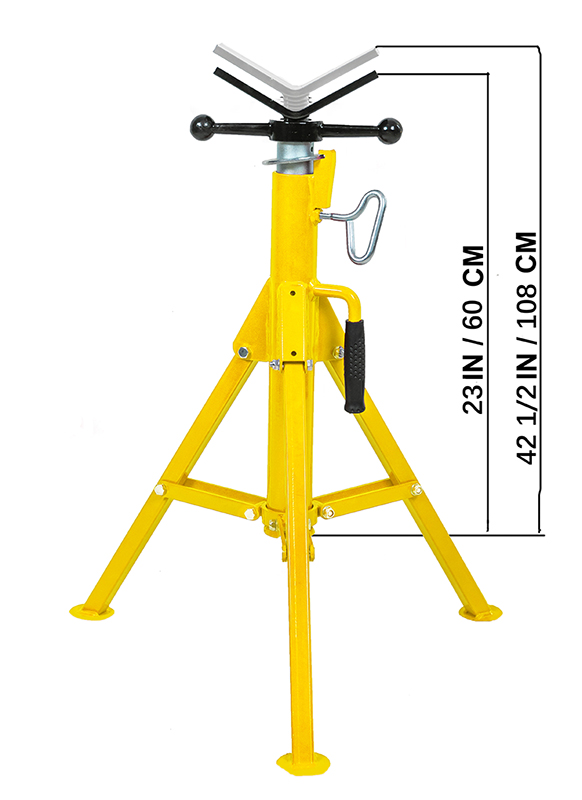

  • Height adjustment(in.): 23-42 ½
  • Low - High(mm): 60-108
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 2500
  • Max weight capacity(kg): 1134
  • Weight(kg): 12.6
    Model No.: 1107L
  • Description: V head pipe stand
  • Height adjustment(in.): 28-52
  • Low - High(mm): 71-132
  • Max pipe capacity(in.): 12
  • Max pipe capacity(mm): 300
  • Max weight capacity(Lb.): 2500
  • Max weight capacity(kg): 1134
  • Weight(kg): 14.4
Catalog No. 730010 730020 730030
Model No.
1107S
1107M
1107L
Description V head pipe stand V head pipe stand V head pipe stand
Height adjustment Low - High in. 20-36 ½ 23-42 ½ 28-52
mm 50.5-93.5 60-108 71-132
Max pipe capacity in. 12 12 12
mm 300 300 300
Max weight capacity Lb. 2500 2500 2500
kg 1134 1134 1134
Weight kg 11.4 12.6 14.4
Features

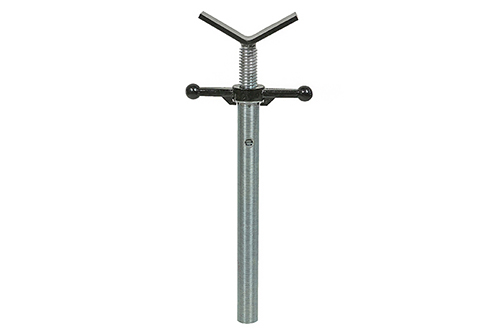

    1. V Head Pipe Stand, 1107 series
      V Head Pipe Stand, 1107 series
      V Head Pipe Stand, 1107 series

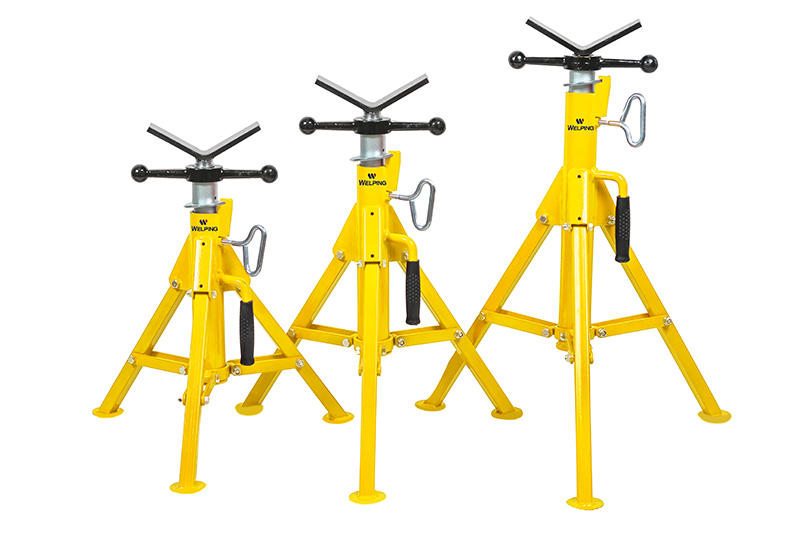

    2. Three heights are available for a variety of uses.

    1. V Head Pipe Stand, 1107 series

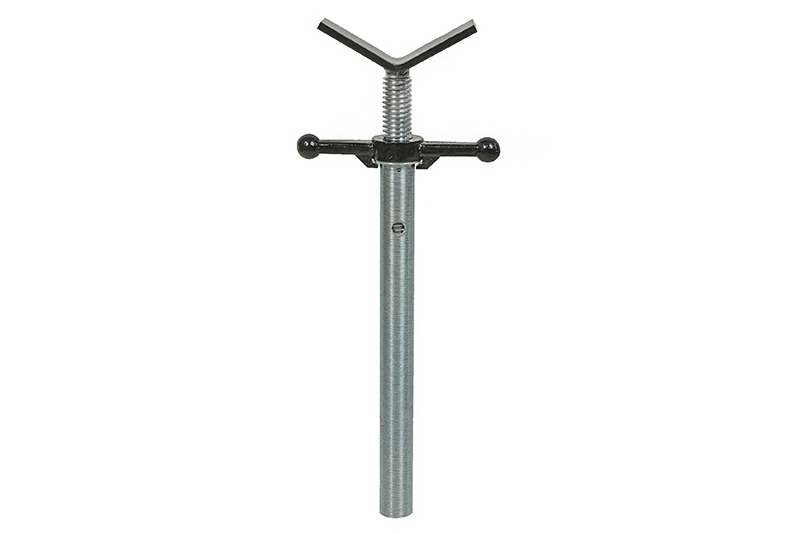

    2. Imported screws are of alloy materials.

    1. V Head Pipe Stand, 1107 series

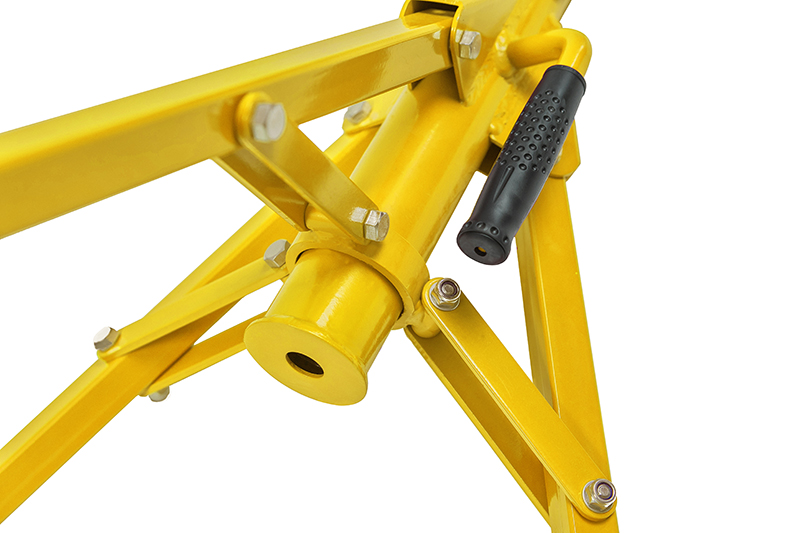

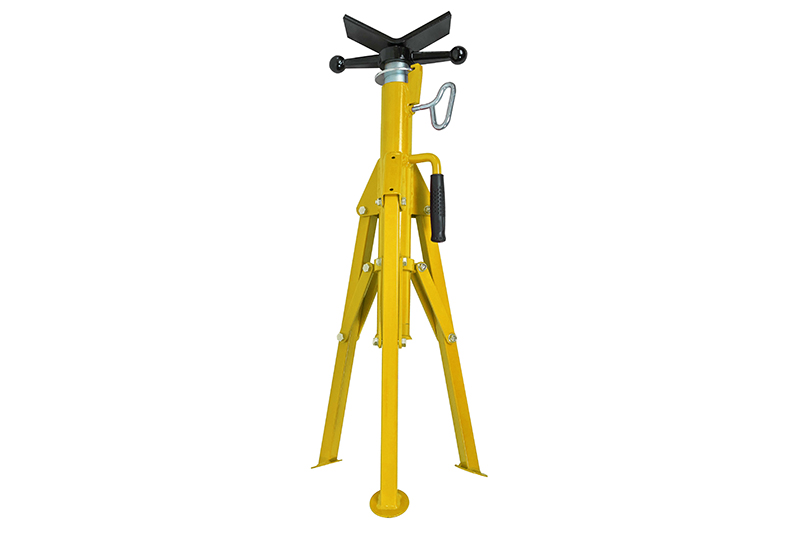

    2. Reliable and firm connection with bolts, and stable three-legged structure

    1. V Head Pipe Stand, 1107 series

    2. Fastener allows a maximum weight of 2500lb.

    1. V Head Pipe Stand, 1107 series

    2. Foldable design allows easy stocking and occupies small space.
