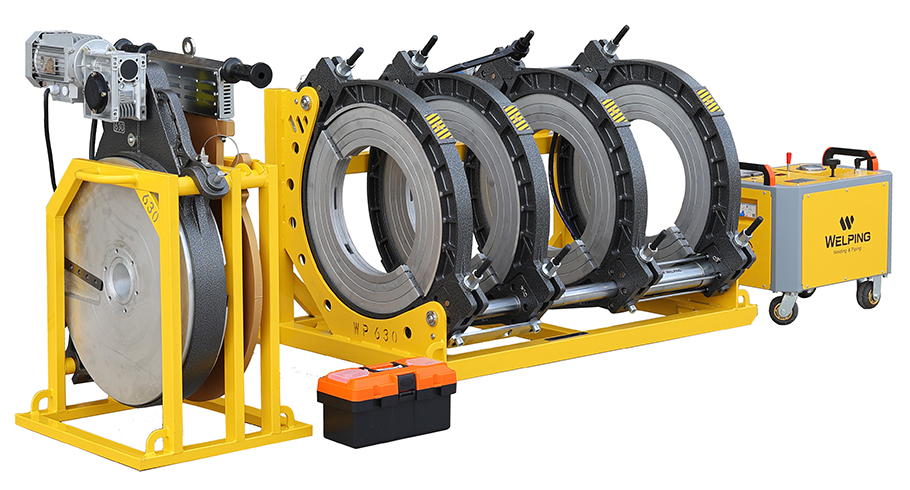

Hydraulic Butt Fusion Machine, WP630A

315mm-630mm Plastic Pipe Welding Machine

The plastic pipe fusion machine performs butt fusion welding process to join HDPE, PP, PVDF, MPP pipes and fittings.

Butt Fusion Machine (315-630mm Plastic Pipe Welding)
  • Model: WP630A
  • Welding range: 315-630 mm
  • Applicable pipe diameters: 315-355-400-450-500-630 mm
  • Power supply: 380 V/50Hz, 3PH
  • Total power: 10.1 kW
  • Heating plate: 7.5 kW
  • Planing tool: 1.5 kW
  • Hydraulic station : 1.1 kW
  • Pressure adjusting range: 0-10.0 MPa
  • Max temperature of heating plate: 270 ºC
  • Temperature deviation: ±7 ºC
Inquiry
Download
Application

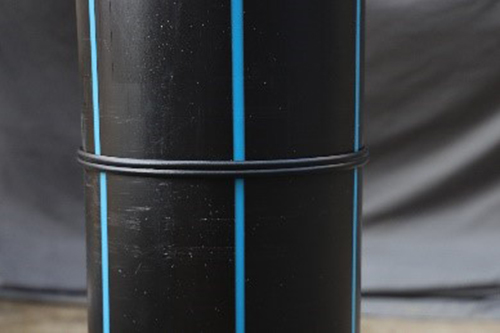

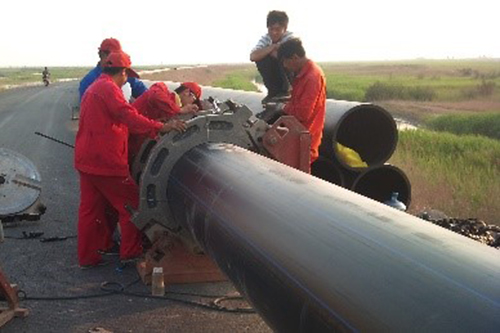

WP630A hydraulic butt fusion welding machine can be used for HDPE, PP, PVDF, MPP pipes.

  • Butt Fusion Machine (315-630mm Plastic Pipe Welding)
  • Butt Fusion Machine (315-630mm Plastic Pipe Welding)
  • Butt Fusion Machine (315-630mm Plastic Pipe Welding)
Features
    1. Butt Fusion Machine (315-630mm Plastic Pipe Welding)

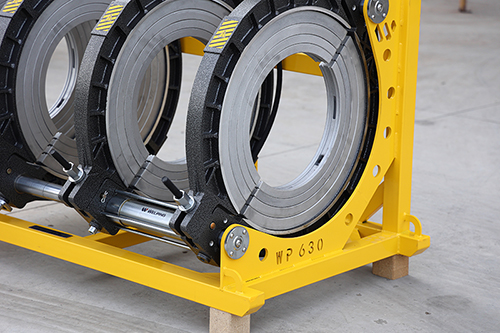

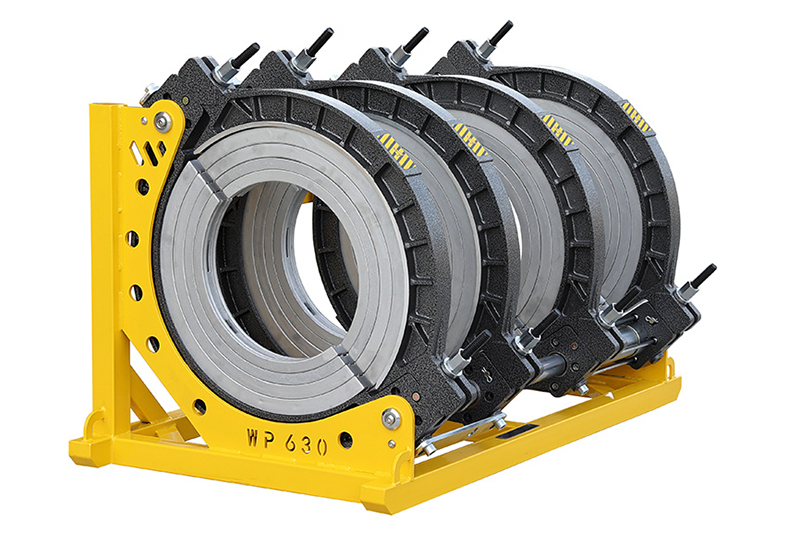

    2. The butt fusion equipment features a sturdy and distortion-free machine frame which is ideally suitable for heavy-duty operations.

    1. Butt Fusion Machine (315-630mm Plastic Pipe Welding)

    2. Steel plates of the machine frame are produced with high precision and aesthetic appearance after processed by the precise and powerful laser cutter.

    1. Butt Fusion Machine (315-630mm Plastic Pipe Welding)

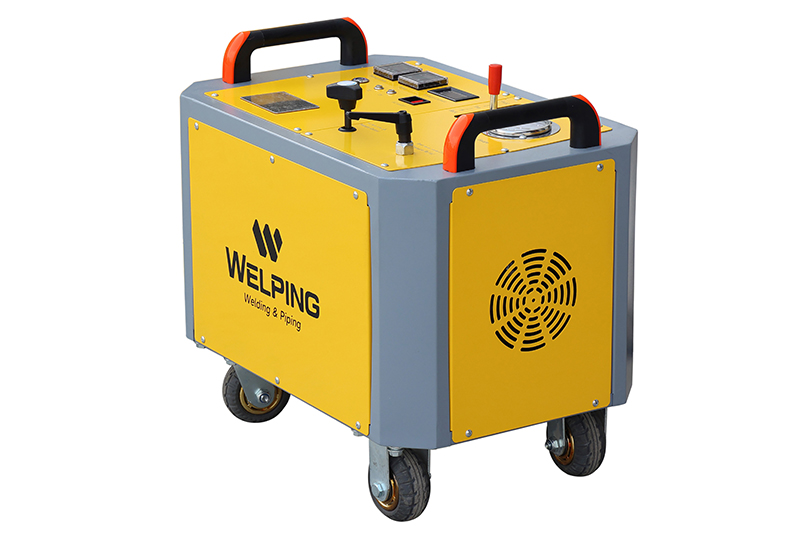

    2. Enclosed hydraulic station is designed to prevent dirt or water. LCD display panel and data logging device are optional upon request.

    1. Butt Fusion Machine (315-630mm Plastic Pipe Welding)

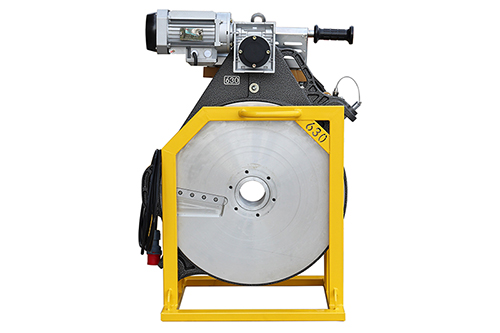

    2. The copper coil motor features a self-locking system for preventing misoperation. Steel reducer inserts have double cutting edges to offer excellent durability and high-speed operations.

    1. Butt Fusion Machine (315-630mm Plastic Pipe Welding)

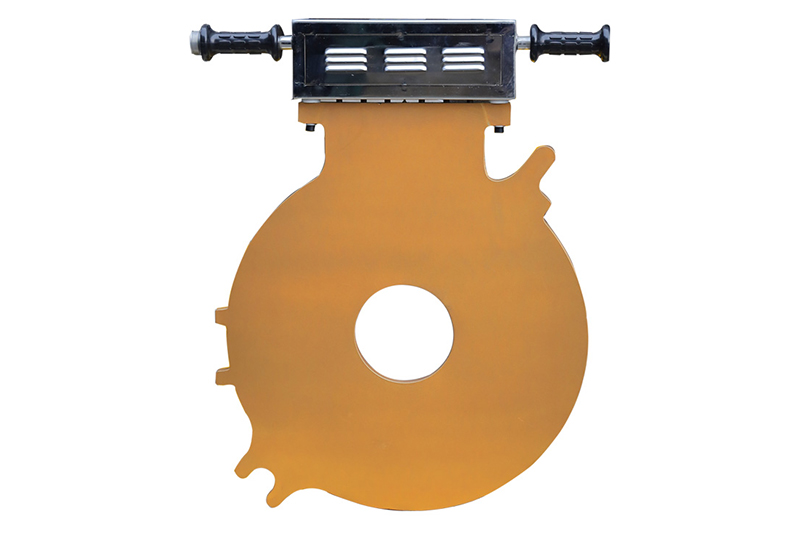

    2. The pipe butt fusion equipment employs superior resistance wire for efficient and even heating performance. The heating element is finished with high-quality Dupont or Daikin coating.

Packaging & Shipping
  • Butt Fusion Machine (315-630mm Plastic Pipe Welding)
  • Butt Fusion Machine (315-630mm Plastic Pipe Welding)
  • Butt Fusion Machine (315-630mm Plastic Pipe Welding)
  • Butt Fusion Machine (315-630mm Plastic Pipe Welding)
WELPING is a professional manufacturer of fusion machines for jointing HDPE, PP, PVDF, MPP pipes/fittings. We have been focusing on the R&D, manufacturing, and sales of fusion welding equipment since 2005. Products range includes butt fusion machines and extrusion welders.
WELPING has a dedicated team of professional engineers for welding machines R& D and they can give you the most professional advice and technical support for fusion welding equipment. Our factory is equipped with complete manufacturing equipment and hence mass-produced standard products or simply customized products can be delivered within 10-15 days.
Since the very beginning, quality and cost-effectiveness are our benchmarks to develop new products. Adhering to the principle of high quality, we offer a variety of fusion welding machines to meet requirements in different scenarios and from different industries.
