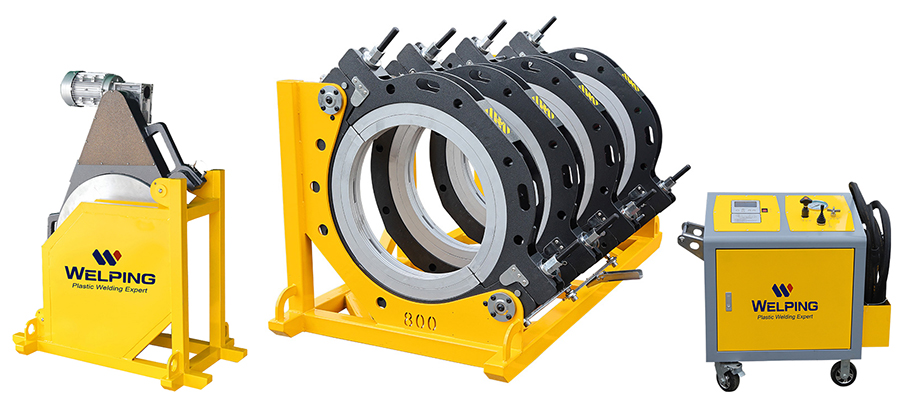

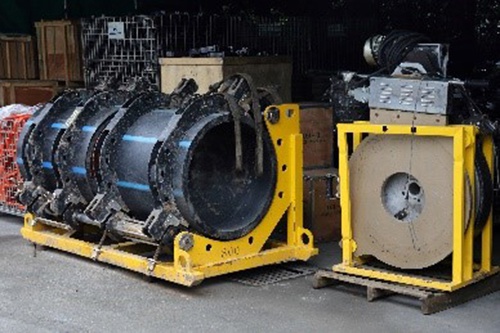

Hydraulic Butt Fusion Machine, WP800A

450mm-800mm Plastic Pipe Welding Machine

The butt fusion jointing machine implements HDPE, PP, PVDF, MPP pipes and fittings connections through butt fusion welding process.

Butt Fusion Machine (450-800mm Plastic Pipe Welding)
  • Model: WP800A
  • Welding range: 450-800 mm
  • Applicable pipe diameters: 630-710-800 mm
  • Optional reducers: 450-500-560mm
  • Power supply: 380 V/50Hz, 3PH
  • Total power: 16.2 kW
  • Heating plate: 12.5 kW
  • Planing tool: 2.2 kW
  • Hydraulic station : 1.5 kW
  • Pressure adjusting range: 0-16 MPa
  • Max temperature of heating plate: 270 ºC
  • Temperature deviation: ±7 ºC
Inquiry
Download
Application

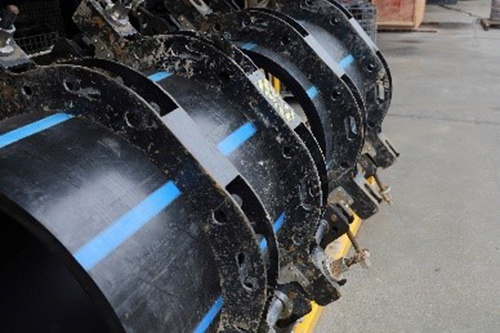

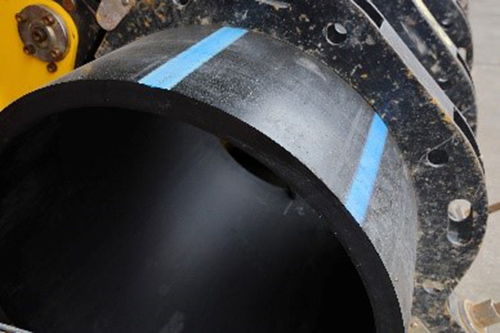

WELPING hydraulic butt fusion welding machine is designed to weld HDPE, PP, PVDF, MPP pipes.

  • Butt Fusion Machine (450-800mm Plastic Pipe Welding)
  • Butt Fusion Machine (450-800mm Plastic Pipe Welding)
  • Butt Fusion Machine (450-800mm Plastic Pipe Welding)
Features
    1. Butt Fusion Machine (450-800mm Plastic Pipe Welding)

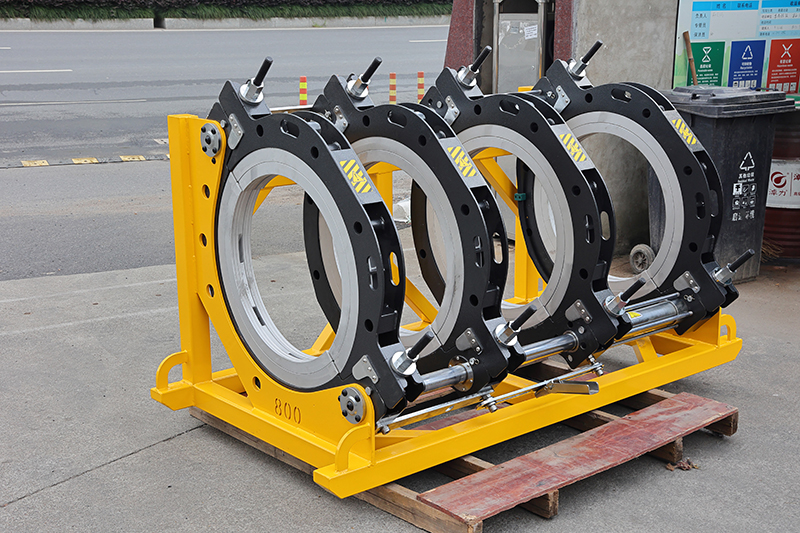

    2. The butt fusion equipment features a sturdy and distortion-free machine frame which is ideally suitable for heavy-duty operations.

    1. Butt Fusion Machine (450-800mm Plastic Pipe Welding)

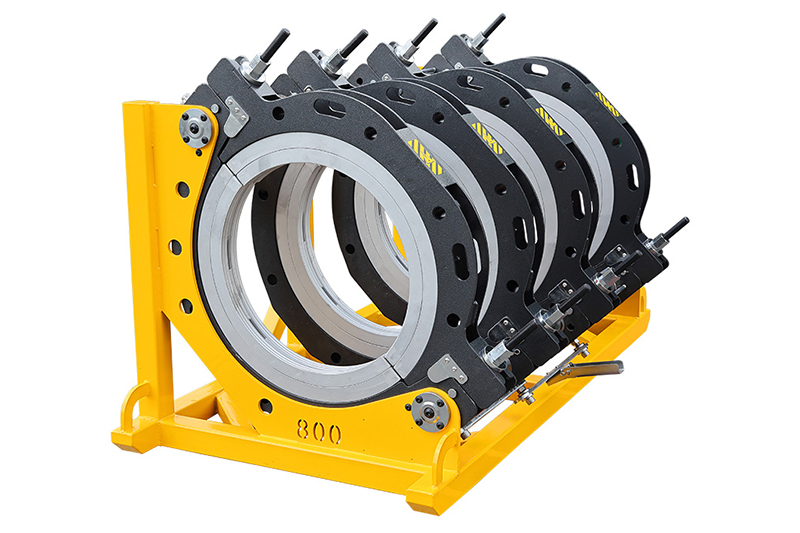

    2. The machine frame features high strength, outstanding precision, and lighter components weight for lower work load and better welding performance.

    1. Butt Fusion Machine (450-800mm Plastic Pipe Welding)

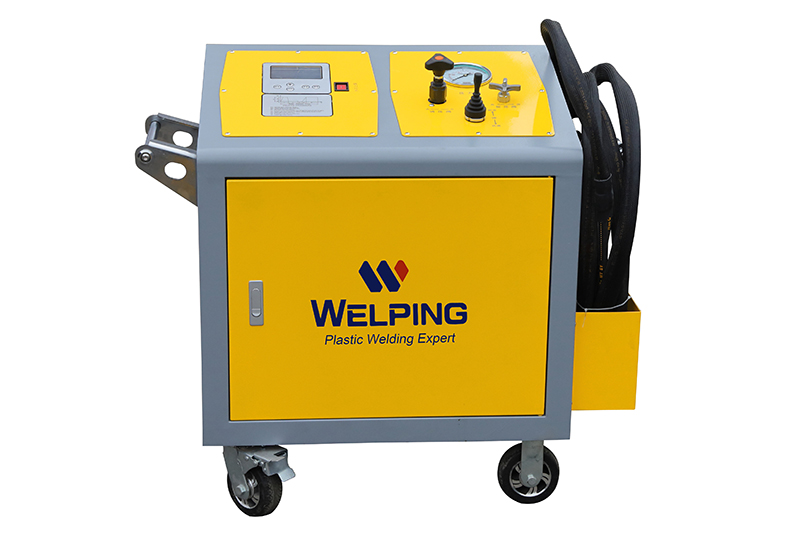

    2. The hydraulic station is designed with an enclosed structure to prevent dirt or water. The hydraulic butt fusion machine employs an intuitive LCD display panel integrating various operations to improve operational efficiency.

    1. Butt Fusion Machine (450-800mm Plastic Pipe Welding)

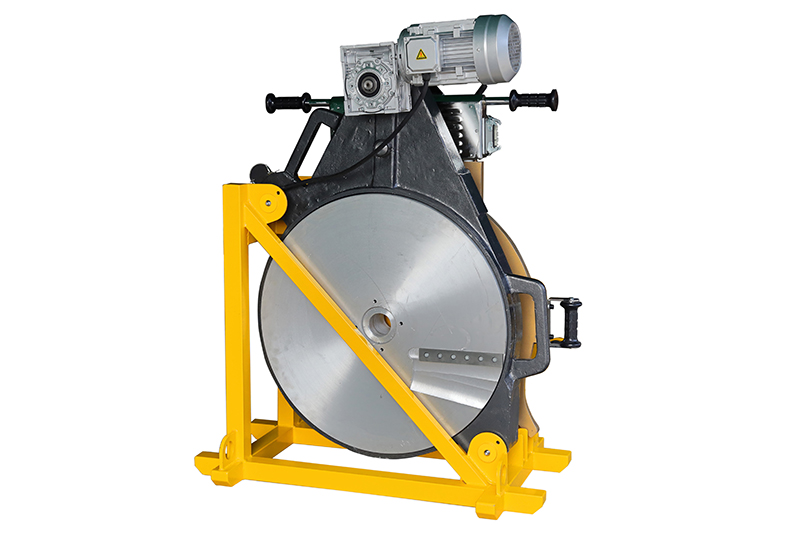

    2. Copper coil motor has a self-locking system to prevent damages caused by misoperation. High-speed steel reducer inserts with double cutting edges are highly durable.

    1. Butt Fusion Machine (450-800mm Plastic Pipe Welding)

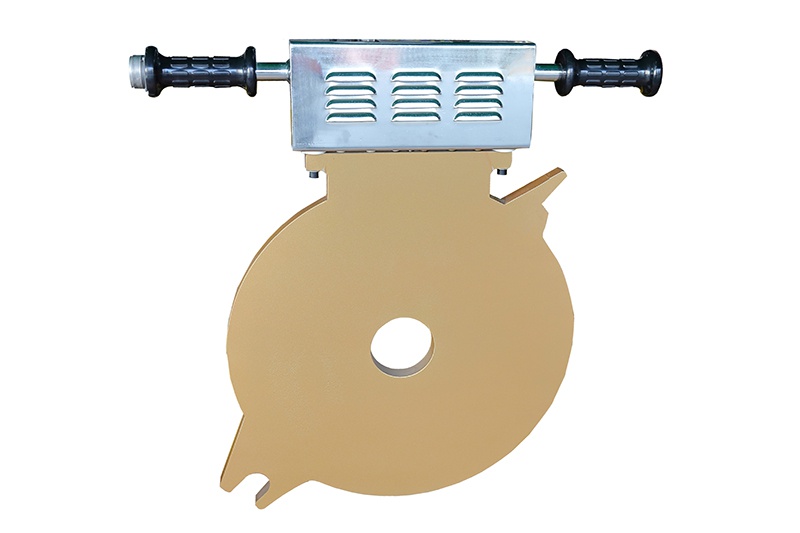

    2. High quality resistance wire delivers efficient and even heating performance. The heating element is applied with superior Dupont or Daikin coating.

Packaging & Shipping
  • Butt Fusion Machine (450-800mm Plastic Pipe Welding)
  • Butt Fusion Machine (450-800mm Plastic Pipe Welding)
  • Butt Fusion Machine (450-800mm Plastic Pipe Welding)
  • Butt Fusion Machine (450-800mm Plastic Pipe Welding)
WELPING is a professional manufacturer of fusion machines for jointing HDPE, PP, PVDF, MPP pipes/fittings. We have been focusing on the R&D, manufacturing, and sales of fusion welding equipment since 2005. Products range includes butt fusion machines and extrusion welders.
WELPING has a dedicated team of professional engineers for welding machines R& D and they can give you the most professional advice and technical support for fusion welding equipment. Our factory is equipped with complete manufacturing equipment and hence mass-produced standard products or simply customized products can be delivered within 10-15 days.
Since the very beginning, quality and cost-effectiveness are our benchmarks to develop new products. Adhering to the principle of high quality, we offer a variety of fusion welding machines to meet requirements in different scenarios and from different industries.
