Hydraulic Butt Fusion Machine WP160A PRO
40–160mm Plastic Pipe Welding
Video

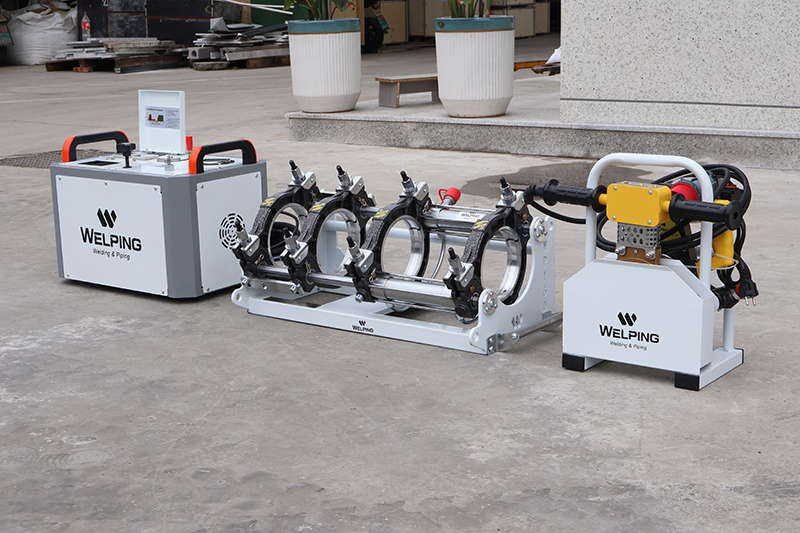

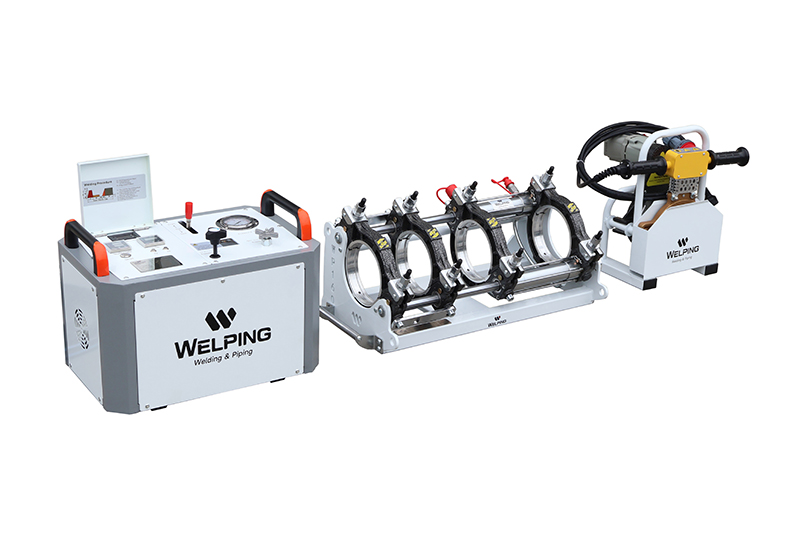

WP160A PRO is a hydraulic butt fusion machine designed for plastic pipe welding from 40 mm to 160 mm. It is easy to operate, combining a reinforced heavy-duty four-clamp frame, efficient heating plate, high-output electric facer, and practical tool holder to deliver reliable alignment and consistent fusion performance on site. The butt fusion machine is suitable for PE, PP, PVDF, and MPP pipes and fittings, providing a dependable solution for small-diameter pipe welding.
Specifications
| Model | WP160A Pro |
| Weldable material | PE (HDPE, MDPE, LDPE), PP, PVDF, MPP |
| Welding range | 40-160 mm |
| Applicable pipe diameters | 40-50-63-75-90-110-125-140-160 mm |
| Power supply | 220V, 50/60Hz, 1PH |
| Total power | 3.65 kW |
| Heating plate | 1.5 KW |
| Facer | 1.4 kW |
| Hydraulic unit | 0.75 kW |
| Pressure adjusting range | 0-8 MPa |
| Max. temperature | 270℃ |
| Temperature deviation | ±5℃ |
| Piston area | 15.32 cm² |
Detail Highlights
-
-
-

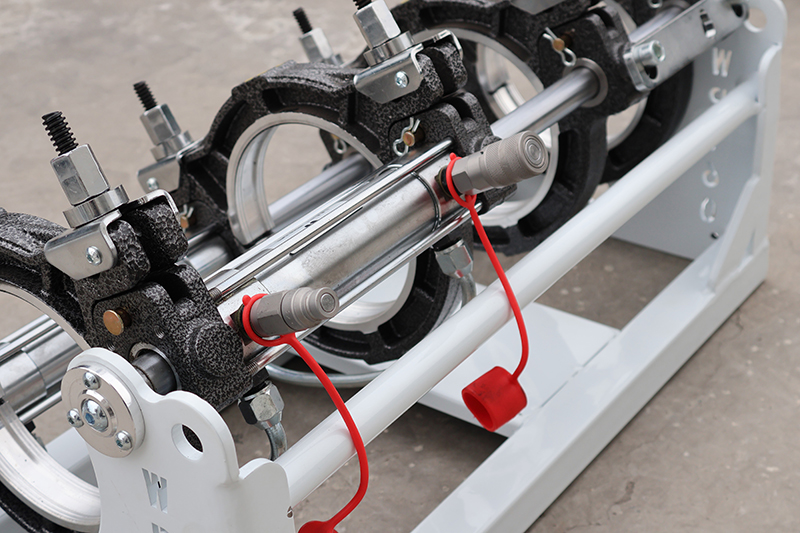

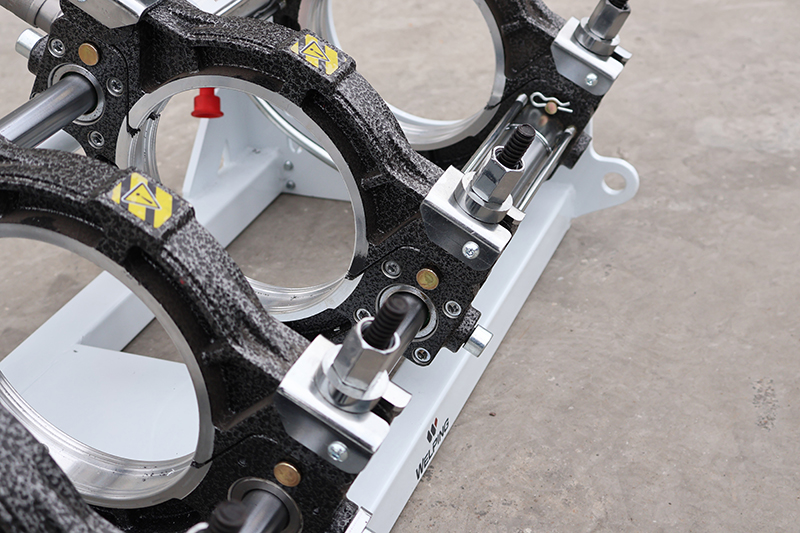

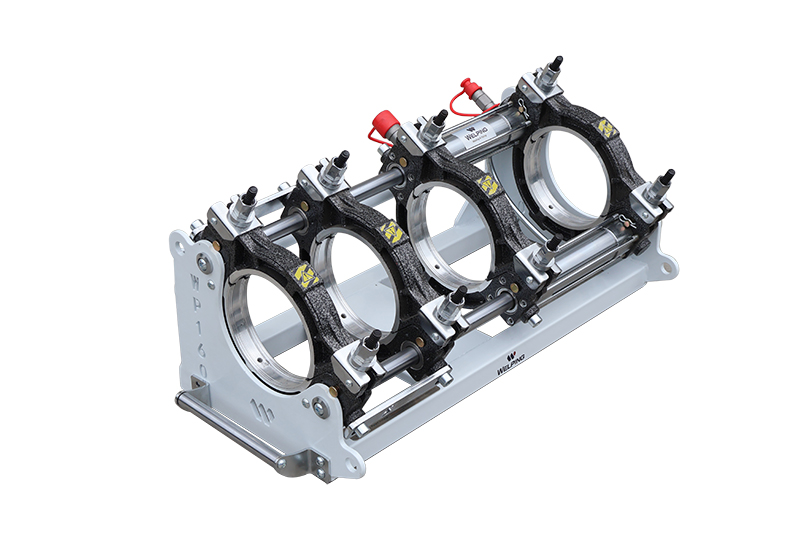

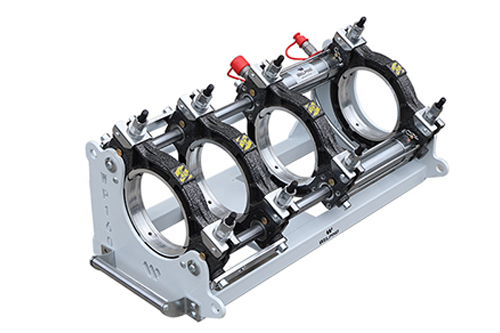

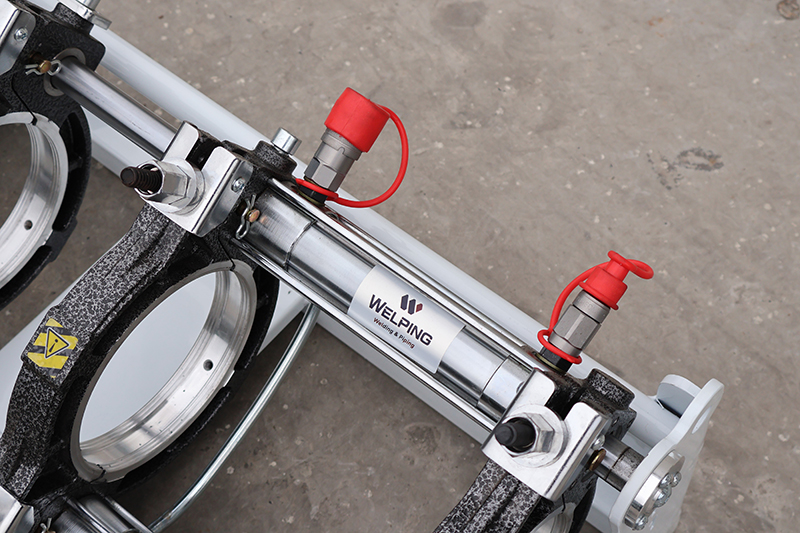

Frame Four-clamp frame for accurate pipe positioning
-
-
-
-

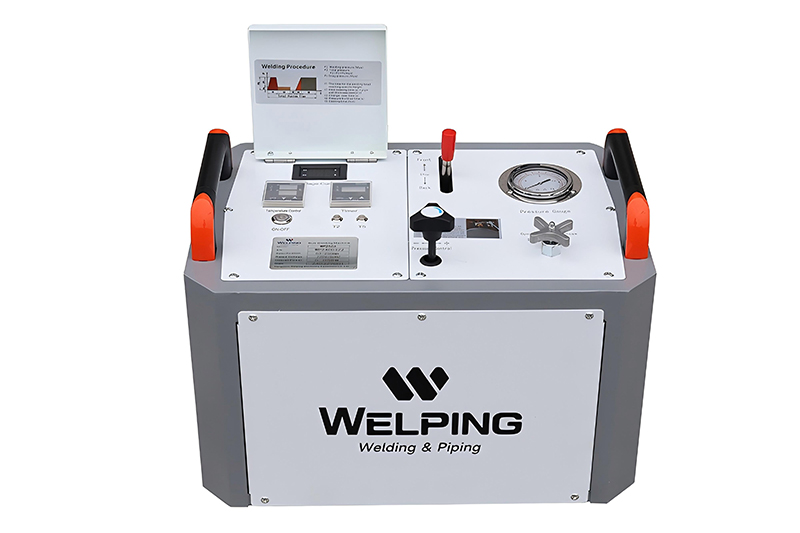

DynaFX™ Hydraulic Power Unit All-in-one hydraulic and electrical control panel for easy setups and operations
-
-
-
-

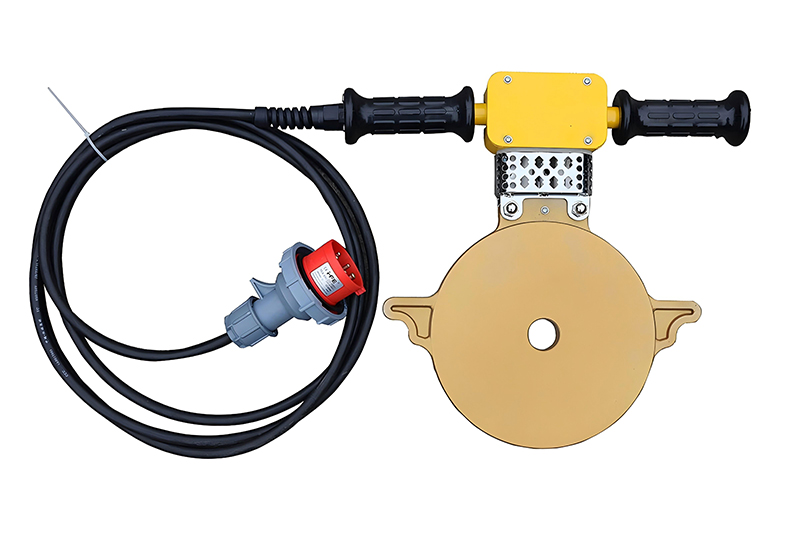

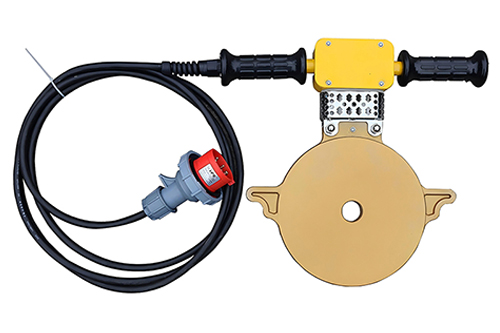

Heating Plate Stable heating for consistent fusion performance
-
-
-
-

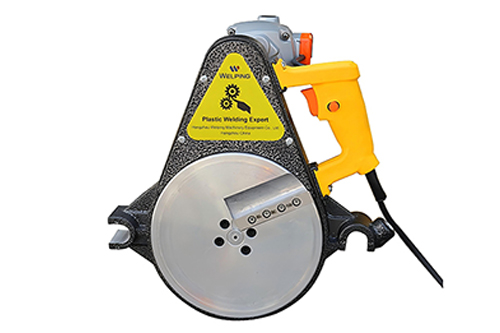

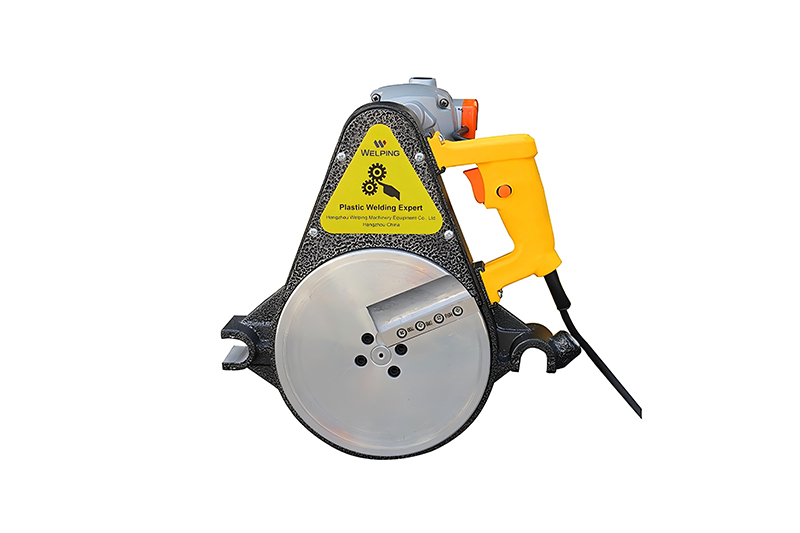

Facer (Milling Cutter) Electric facer for clean, accurate pipe end preparation
-
-
-
-

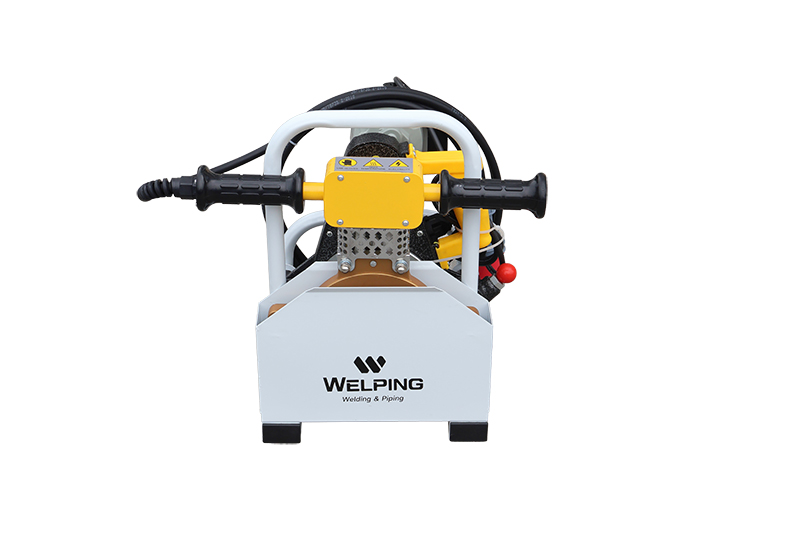

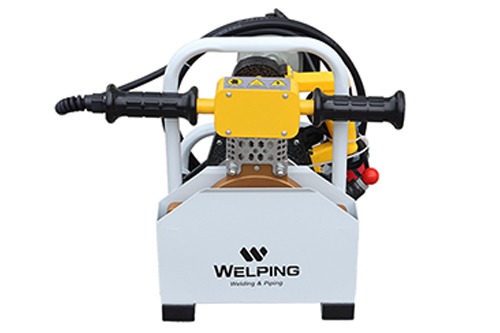

Tool Holder Convenient holder for the heating plate and facer to enhance heat retention and improve mobility
-
