FX Series Hydraulic Butt Fusion Welding Machines

The FX Series includes more than ten hydraulic butt fusion machines designed for HDPE pipe welding from 50 mm to 1000 mm. The integrated heating plate provides an even and controlled heating to join pipes and fitting ends, ensuring leak-free fusion. Engineered for municipal, industrial, and energy pipeline construction, the series provides contractors with a reliable welding solution across a broad range of pipe diameters.

Features
  • Improved welding efficiency: The upgraded hydraulic system shortens the welding cycle, while the new heating element delivers more even temperature distribution across the heating plate. Anti-slip pad blocks provide a more secure grip on the pipe and help prevent slipping during welding.
  • Reinforced frame design: Compared with the previous rounded clamp rings, the redesigned upper and lower rings have a sharper profile, and the thicker side plates further strengthen the frame structure.
  • Upgraded hydraulic unit: The second-generation FX series hydraulic unit is equipped with a wired remote control, temperature controller, pressure relief button, rear-mounted pressure regulating valve, and a large pressure gauge. Reserved ports for a data logger power cable and data connection are also included.

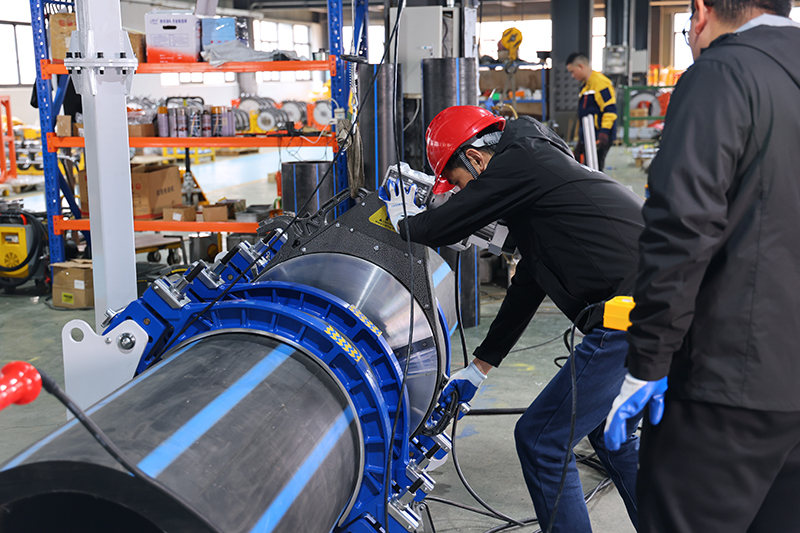

Applications

The hydraulic butt fusion machines are suitable for welding pipes made of HDPE, PE, PP, PB, and PVDF.

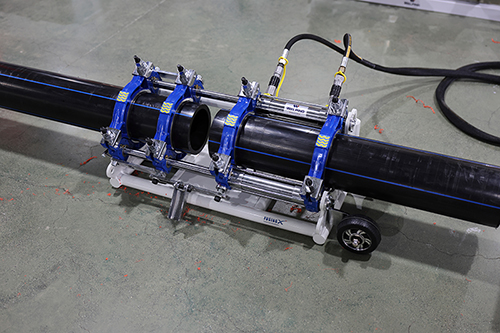

  • Butt Fusion Machine (63-160mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-160mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-160mm Plastic Pipe Welding)

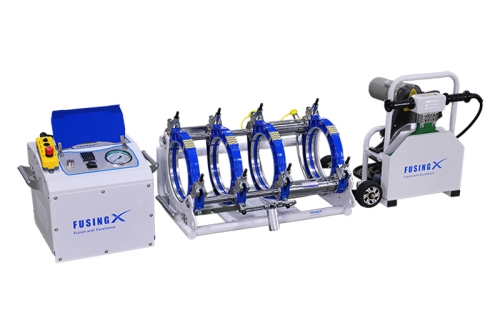

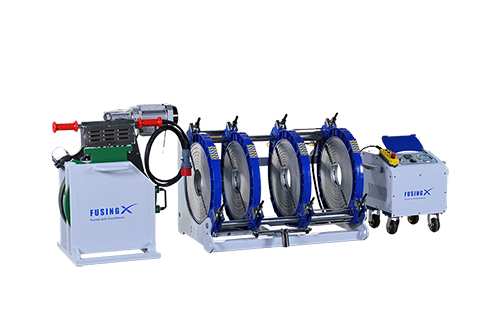

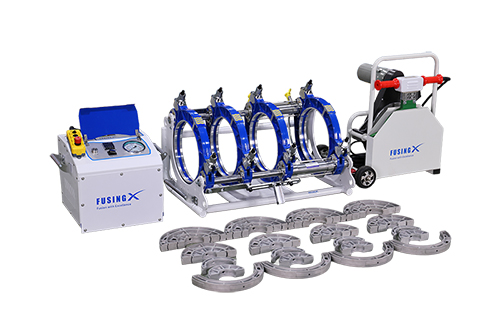

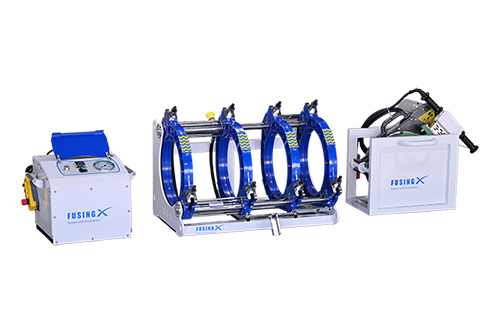

Available Models
Main Components

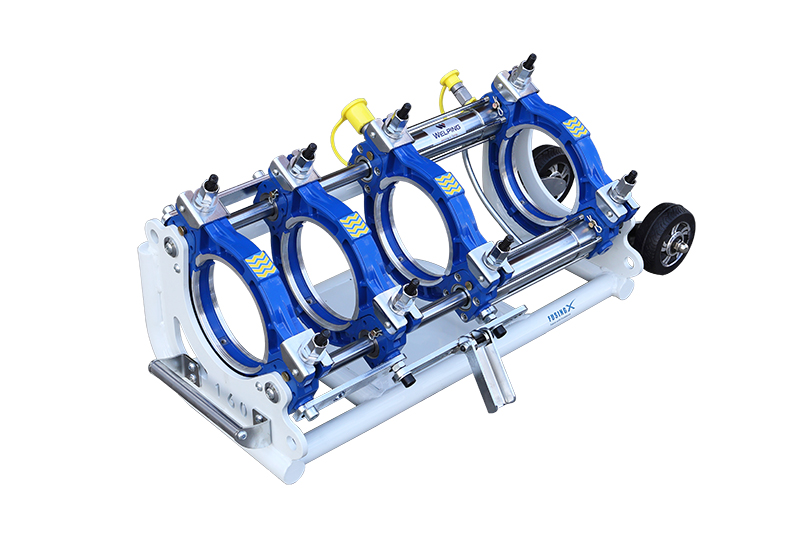

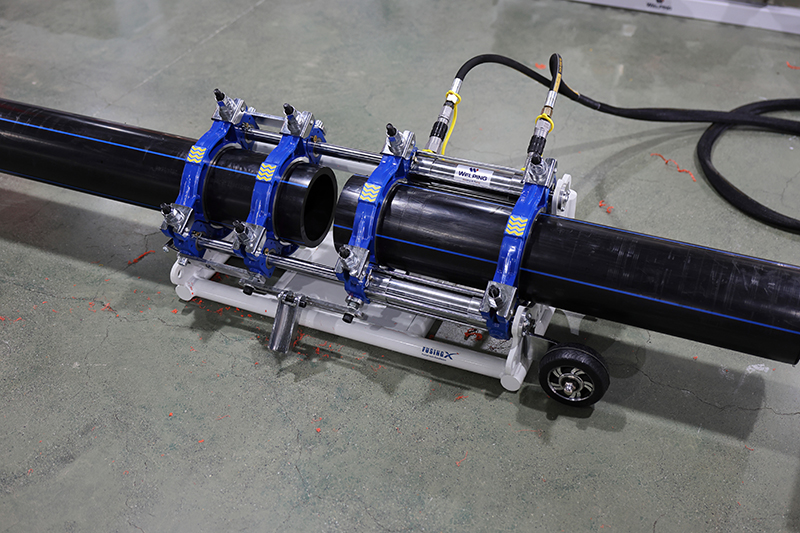

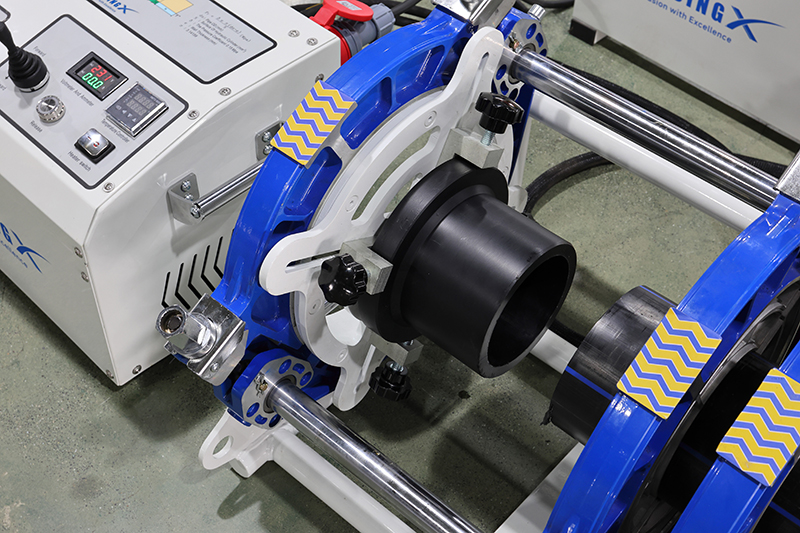

    1. Frame (Carriage)
    2. Frame (Carriage)
      • Full steel-welded construction with a reinforced heavy-duty frame for high load capacity
      • Precision-machined clamping surfaces ensure accurate pipe alignment
      • Standard carrying handles and wheels make on-site transport easier
      • Hydraulic cylinders with quick couplings allow fast and convenient setup

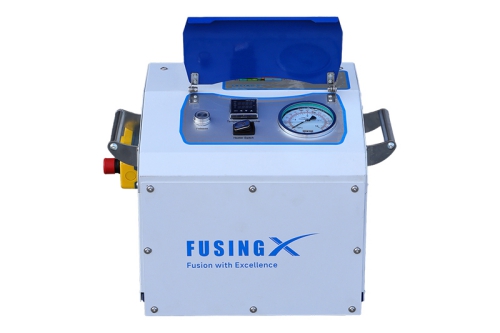

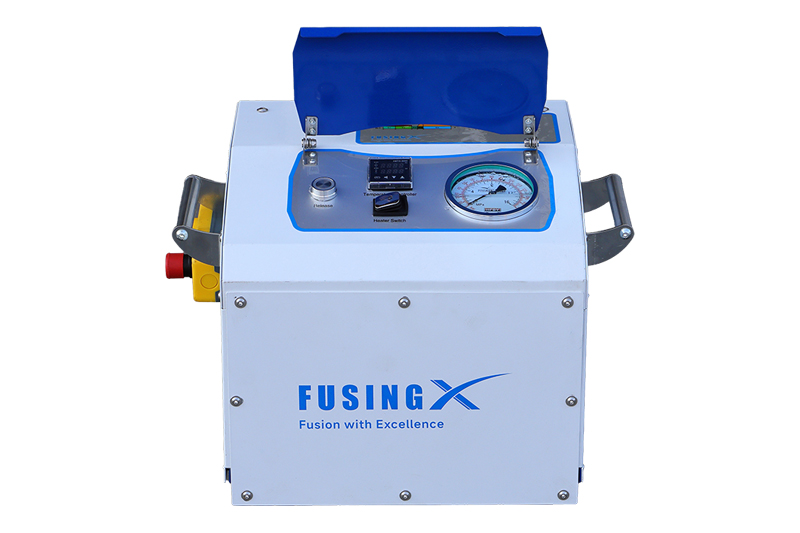

    1. DynaFX™ Hydraulic Power Unit
    2. DynaFX™ Hydraulic Power Unit
      • Integrated hydraulic and electrical controls for easier operation and maintenance
      • Optimized hydraulic system delivers stable, controllable pressure throughout alignment, facing, and fusion
      • Enclosed design reduces the impact of dust and moisture
      • Forward speed at 1x and reverse speed at 1.3x improve operating efficiency and reduce switching time

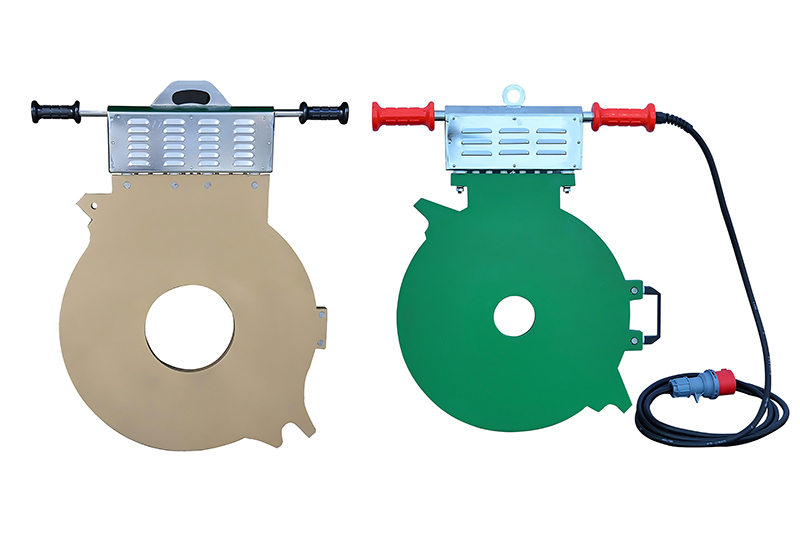

    1. Heating Plate
    2. Heating Plate
      • Cast aluminum body with built-in heating elements
      • Daikin non-stick PTFE coating
      • Industrial aviation plug and durable power cable for safer operation
      • Temperature deviation control within ±5oC

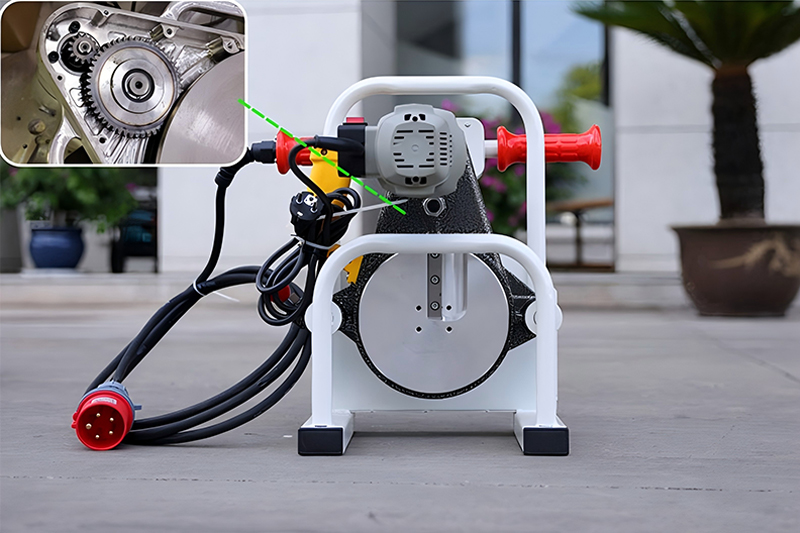

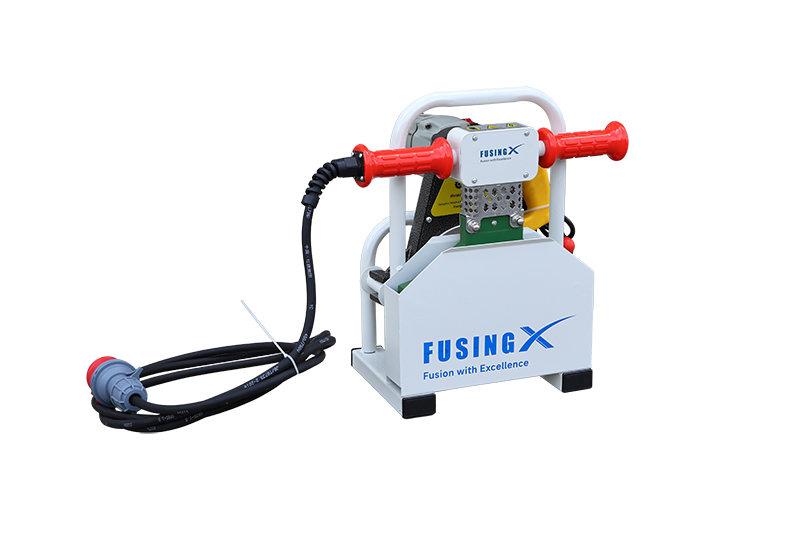

    1. Facer (Milling Cutter)
    2. Facer (Milling Cutter)
      • High-output copper-wound motor, up to 1.4 kW on selected models
      • Durable double-edged HSS blades
    1. Tool Holder
    2. Tool Holder
      • Full-cover heating plate enclosure for better protection and heat retention
      • Wider, longer handles for easier movement on site

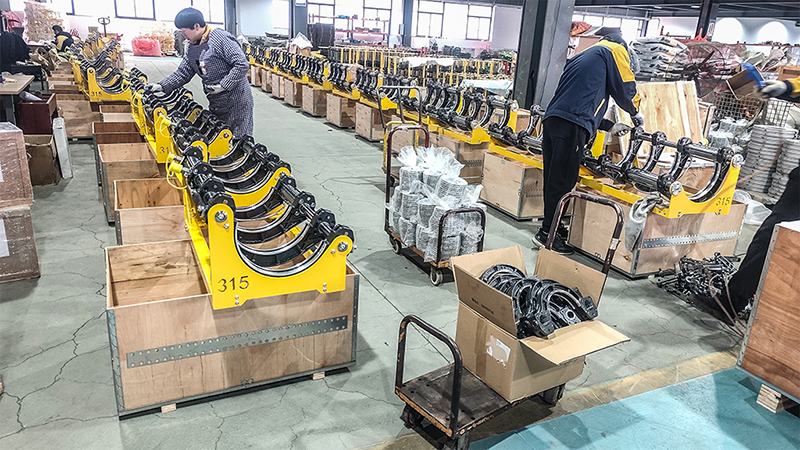

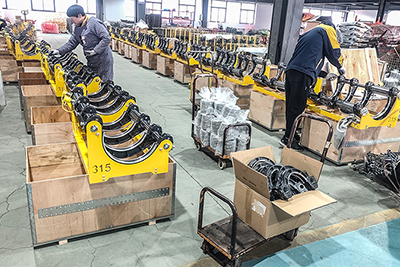

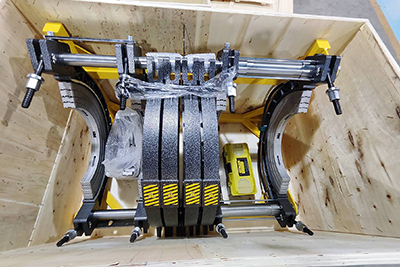

Packaging & Shipping

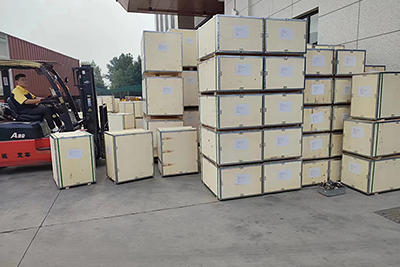

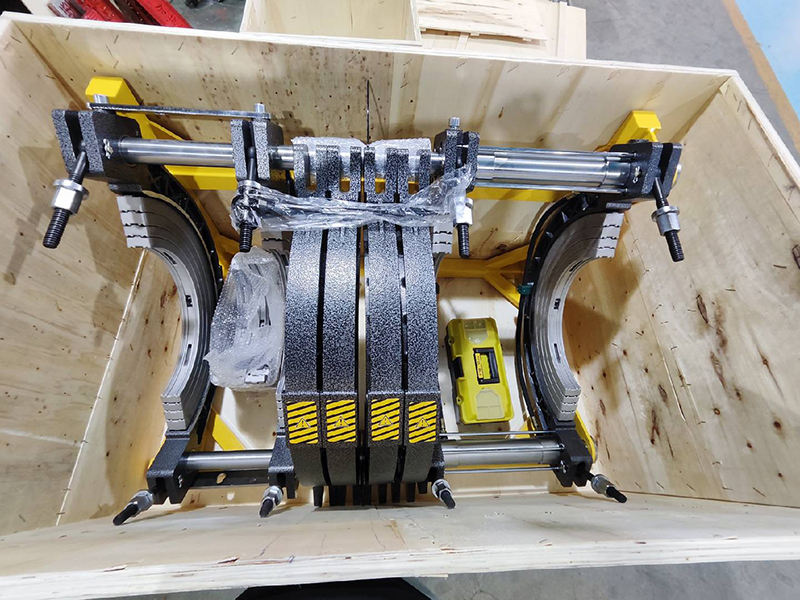

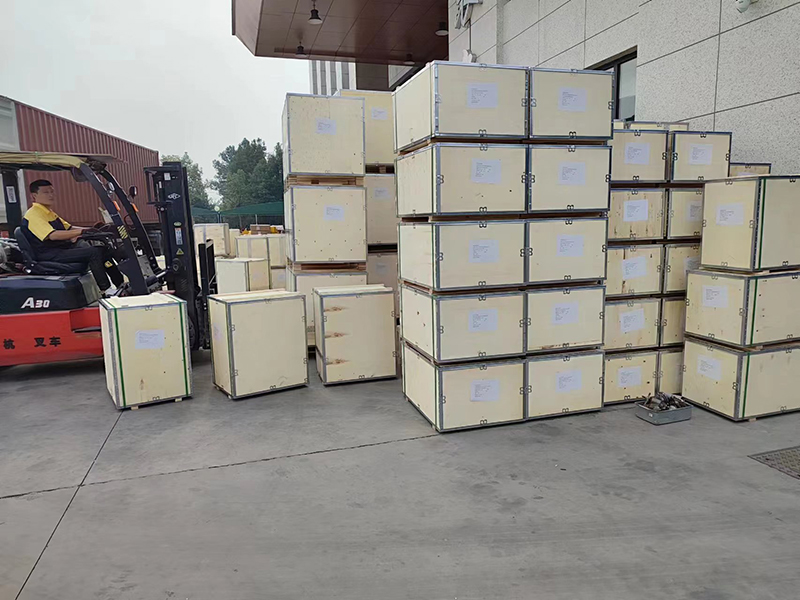

  • Packaging & Shipping
  • Packaging & Shipping
  • Packaging & Shipping
  • Packaging & Shipping
WELPING is a professional manufacturer of fusion machines for jointing HDPE, PP, PVDF, MPP pipes/fittings. We have been focusing on the R&D, manufacturing, and sales of fusion welding equipment since 2005. Products range includes butt fusion machines and extrusion welders.
WELPING has a dedicated team of professional engineers for welding machines R& D and they can give you the most professional advice and technical support for fusion welding equipment. Our factory is equipped with complete manufacturing equipment and hence mass-produced standard products or simply customized products can be delivered within 10-15 days.
Since the very beginning, quality and cost-effectiveness are our benchmarks to develop new products. Adhering to the principle of high quality, we offer a variety of fusion welding machines to meet requirements in different scenarios and from different industries.
