Butt Fusion Machine FX200

63–200mm Plastic Pipe Welding

Video

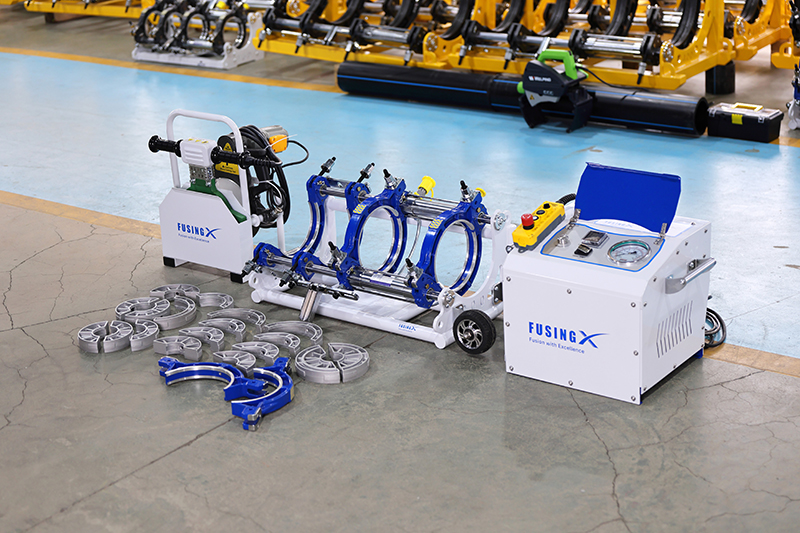

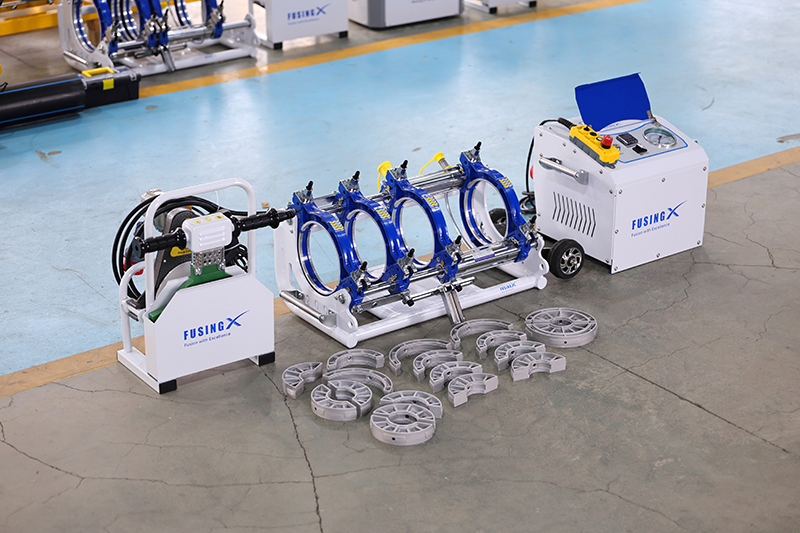

Butt Fusion Machine, FX200
  • Butt Fusion Machine, FX200
  • Butt Fusion Machine, FX200
  • Butt Fusion Machine, FX200
  • Butt Fusion Machine, FX200
  • Butt Fusion Machine, FX200

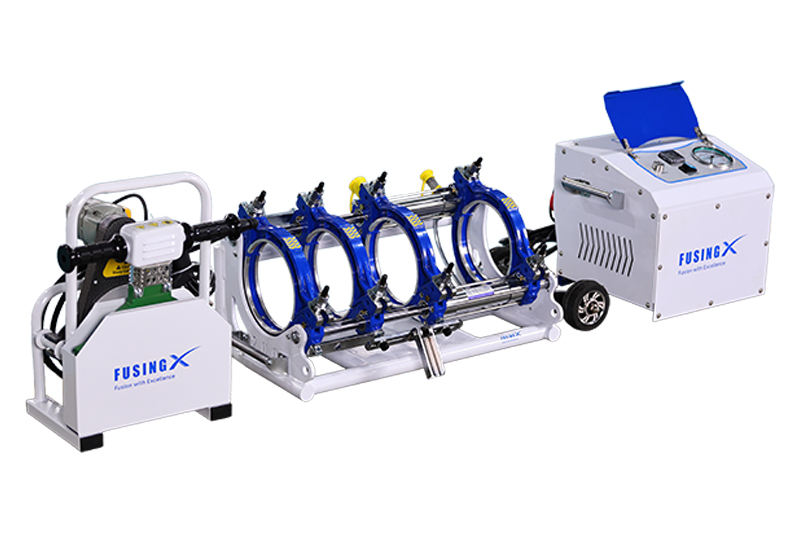

    • FX200 is a butt fusion machine designed for HDPE pipe welding from 63 mm to 200 mm. It uses a heating plate to bring pipe ends to fusion temperature, then applies controlled hydraulic pressure to form strong, leak-tight joints.

    Applications

    This hydraulic butt fusion machine is ideal for the following projects:

    • Gas distribution
    • Wastewater treatment
    • Agricultural irrigation
    • Mining
    • Water supply and drainage
    • Cable conduit
    Inquiry
    Specifications
    Model FX200
    Weldable material HDPE, PE, PP, PB, PVDF
    Welding range 63-200 mm
    Applicable pipe diameters 63-75-90-110-125-140-160-180-200 mm
    Power supply 220 V, 50 Hz, 1 PH
    Total power 3.95 kW
    Heating plate 1.8 kW
    Facer 1.4 kW
    Hydraulic unit 0.75 kW
    Max. temperature 270ºC
    Pressure adjusting range 0-8 MPa
    Temperature deviation ±5ºC
    Piston area 15.32 cm²
    Details

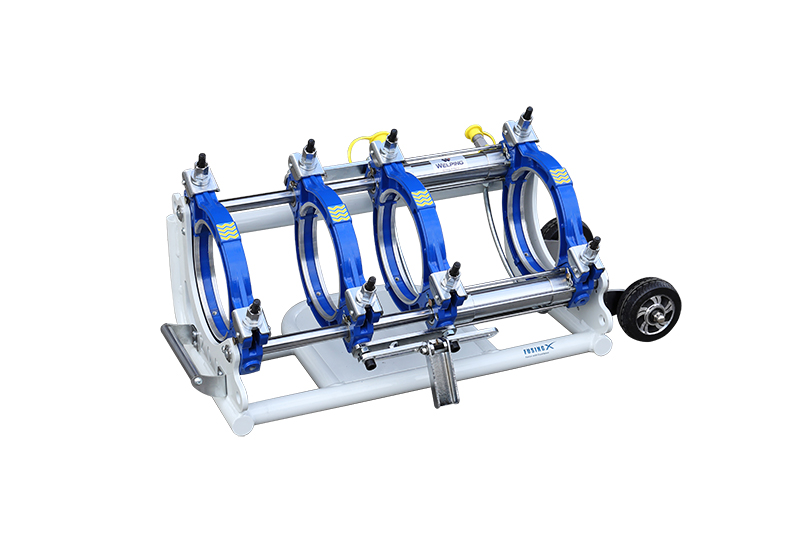

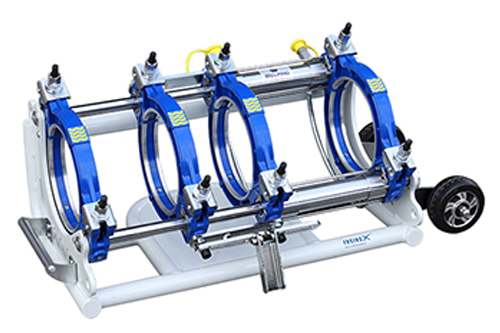

      1. Frame
      2. Frame Reinforced frame with thicker side plates for heavy-duty operation and higher load capacity.

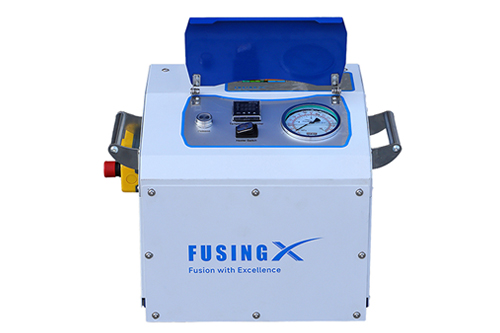

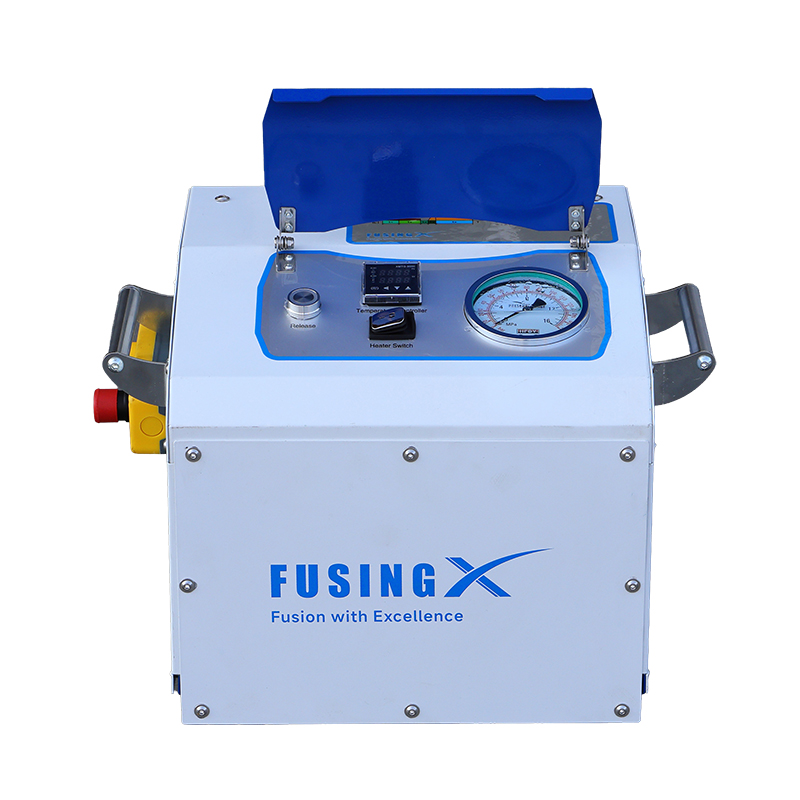

      1. DynaFX™ Hydraulic Power Unit
      2. DynaFX™ Hydraulic Power Unit Optimized hydraulic design provides stable, precise pressure control throughout alignment, facing, and fusion.

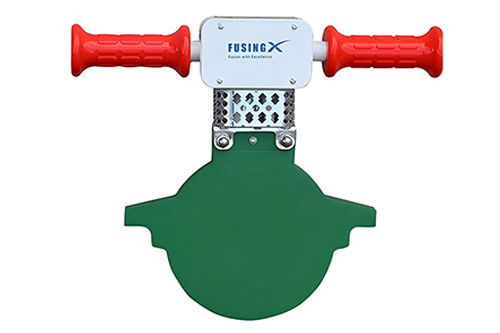

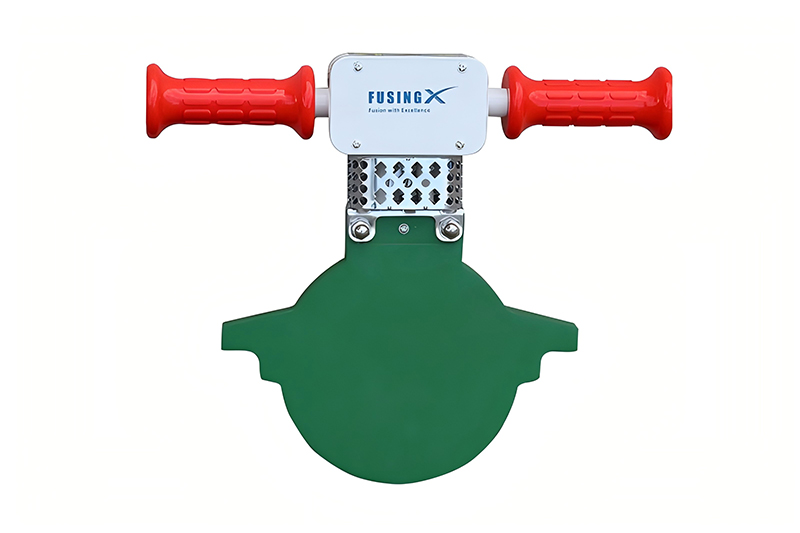

      1. Heating Plate
      2. Heating Plate Surface temperature deviation is controlled within ±5°C for more even heating and consistent welding.

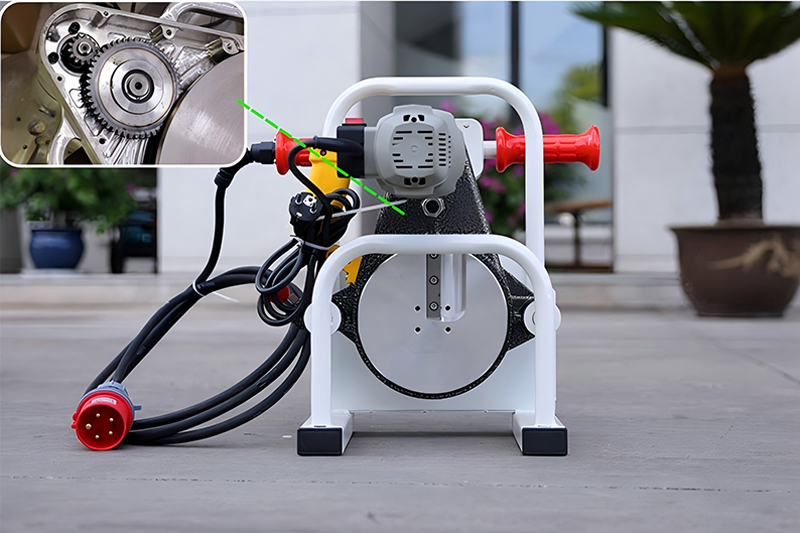

      1. Facer (Milling Cutter)
      2. Facer (Milling Cutter) All-gear drive system delivers smooth operations, high transmission efficiency, and extended service life with minimal maintenance.

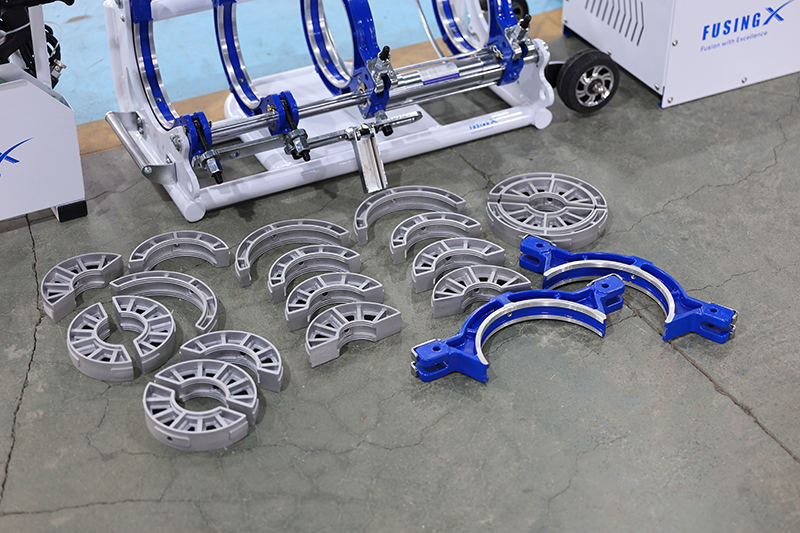

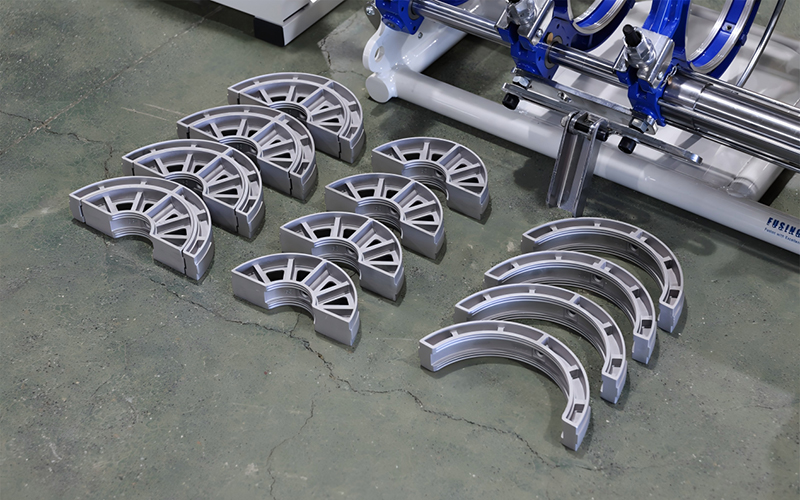

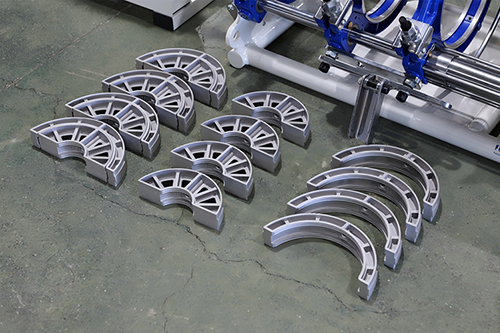

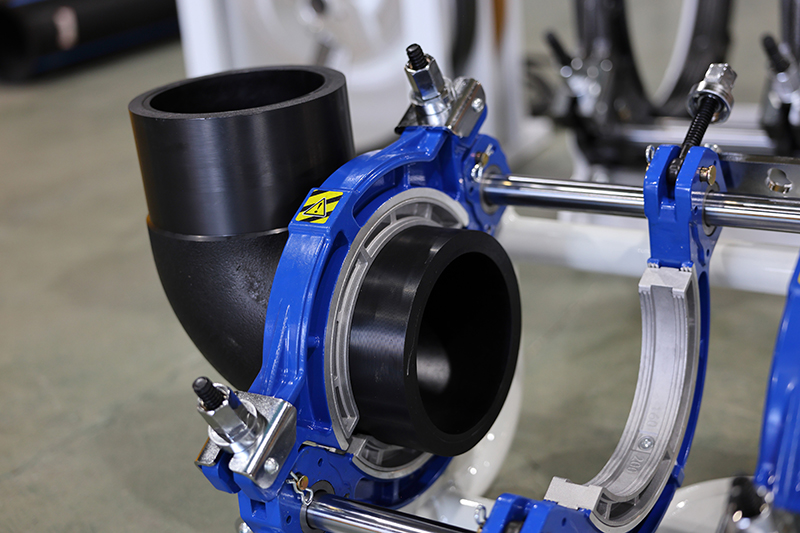

      1. Single-Size Clamp Inserts
      2. Single-Size Clamp Inserts Cast aluminum clamp inserts simplify size changes. From 63 mm to 200 mm, each pipe size requires two inserts, helping improve work efficiency and clamping accuracy.

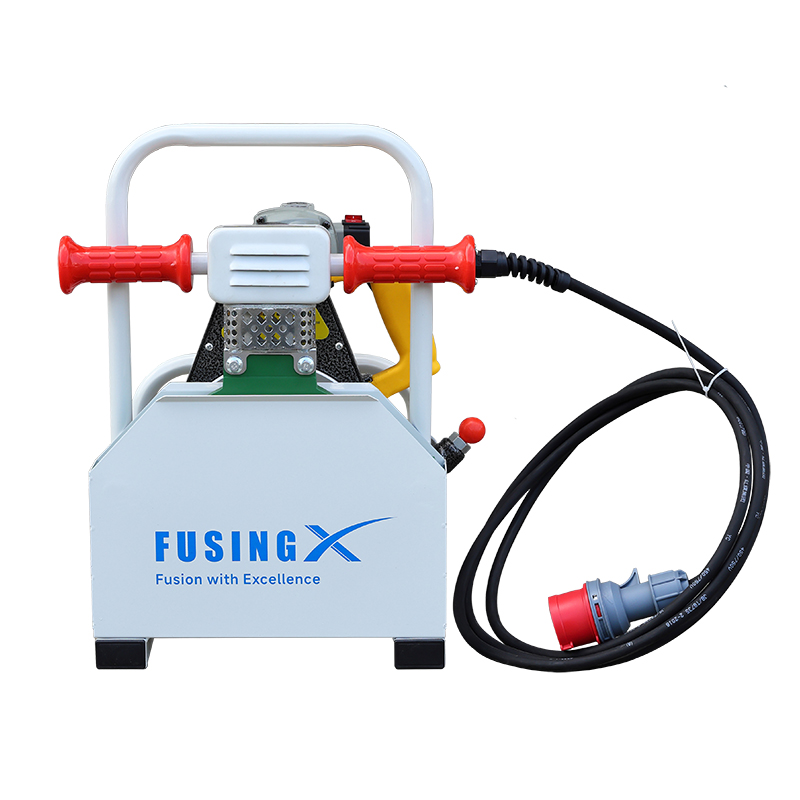

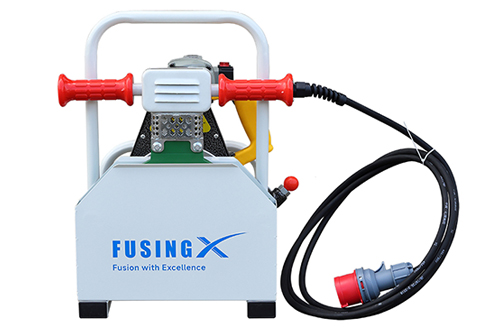

      1. Tool Holder
      2. Tool Holder Designed to keep the heating plate and facer organized for easier handling and more efficient movement on site.
