FX160 Butt Fusion Machine | 40-160 mm Pipe Welding

Butt Fusion Machine FX160

40–160mm Plastic Pipe Welding

Video

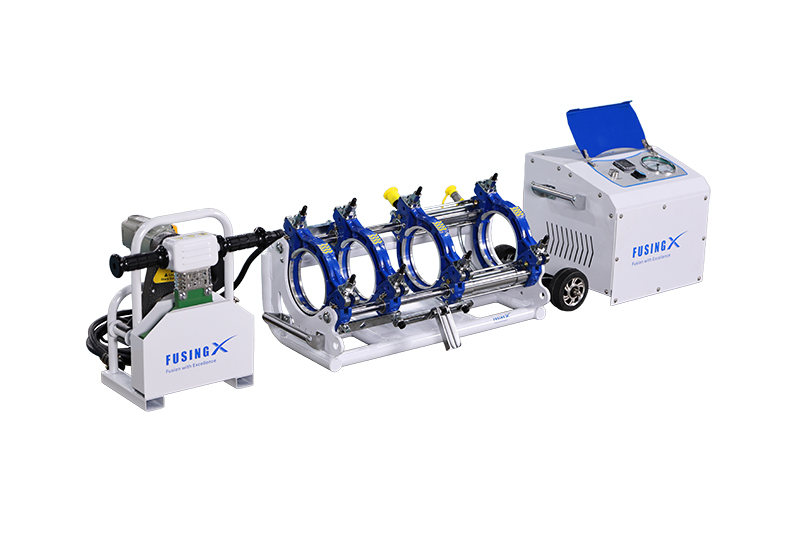

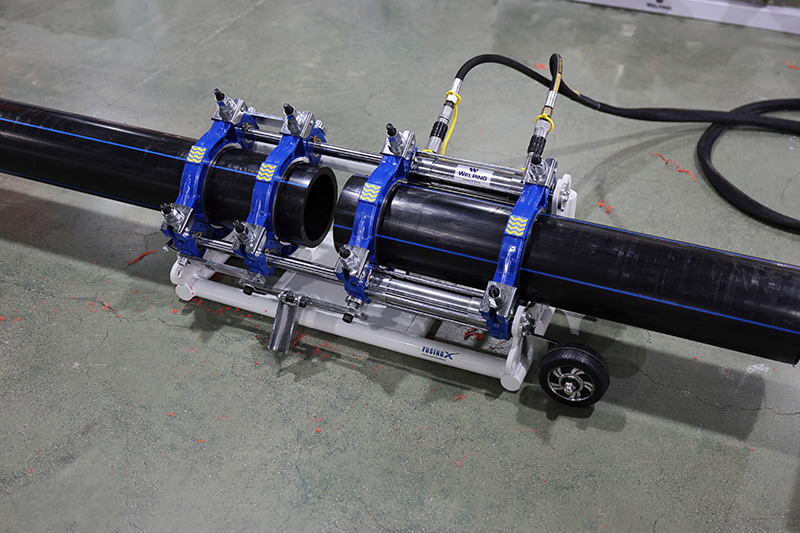

The FX160 is a butt fusion machine designed to weld thermoplastic pipes ranging from 40 mm to 160 mm, including HDPE, PE, PP, PB, and PVDF. Compact, reliable, and easy to operate, this fusion machine is also integrated with an optimized HPU for stable, precise pressure control during pipe and fitting fusion.

Applications

The butt fusion machine provides contractors with an efficient solution for small-diameter pipe welding, including:

Municipal infrastructure projects
Industrial pipeline installation
Energy pipeline construction

Inquiry

Specifications

Model	FX160
Weldable material	HDPE, PE, PP, PB, PVDF
Welding range	40-160 mm
Applicable pipe diameters	40-50-63-75-90-110-125-140-160 mm
Power supply	220 V, 50 Hz, 1 PH
Total power	3.65 kW
Heating plate	1.5 kW
Facer	1.4 kW
Hydraulic unit	0.75 kW
Pressure adjusting range	0-8 MPa
Max. temperature	270ºC
Temperature deviation	±5ºC
Piston area	15.32 cm²

Details

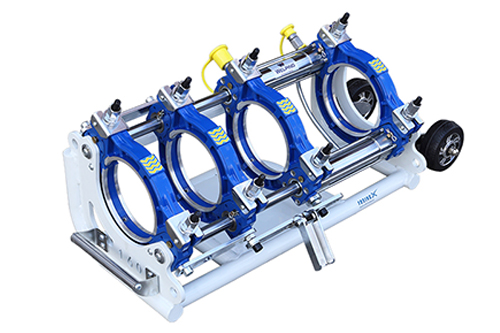

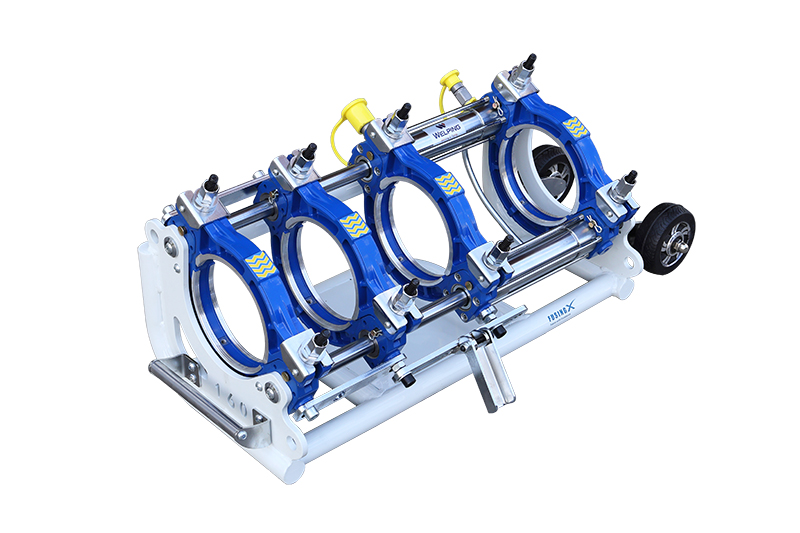

2. Frame Reinforced frame with thicker side plates for heavy-duty operation and higher load capacity.

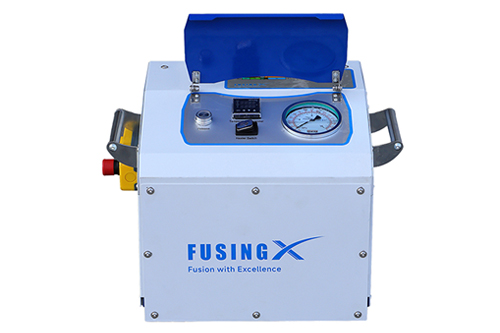

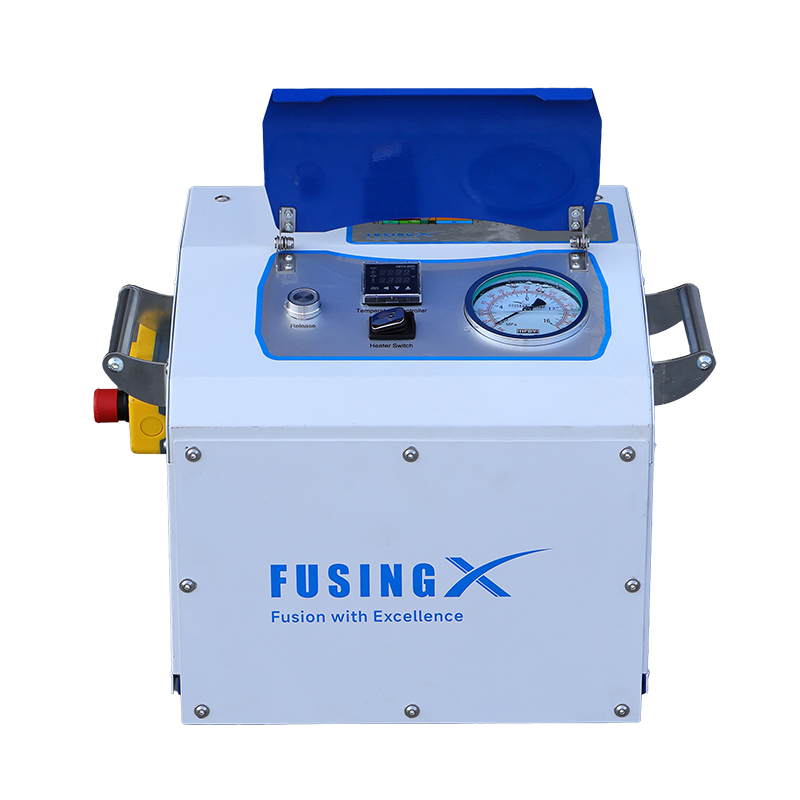

2. DynaFX™ Hydraulic Power Unit Optimized hydraulic design provides stable, precise pressure control throughout alignment, facing, and fusion.

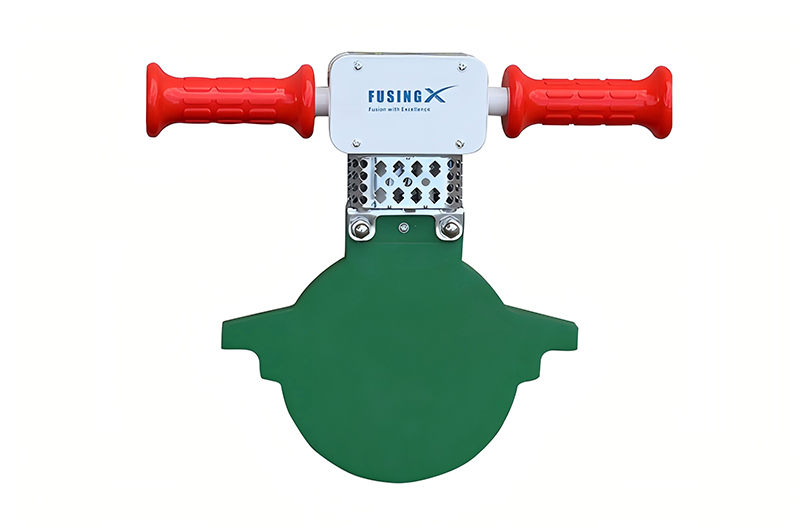

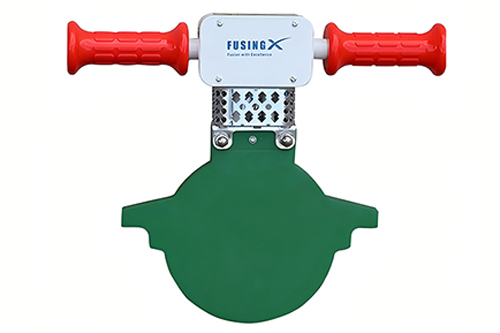

2. Heating Plate Surface temperature deviation is controlled within ±5°C for more even heating and consistent welding.

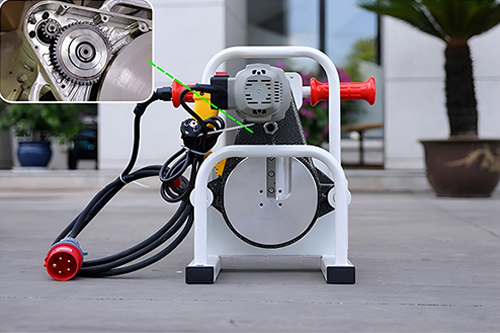

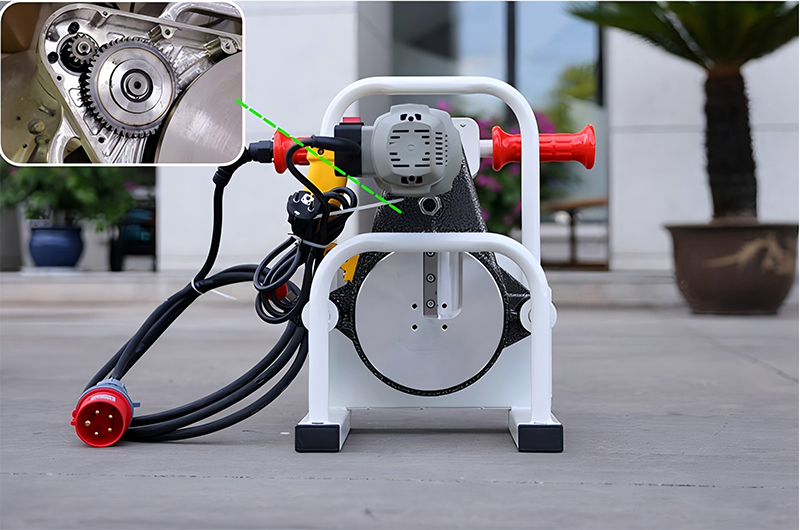

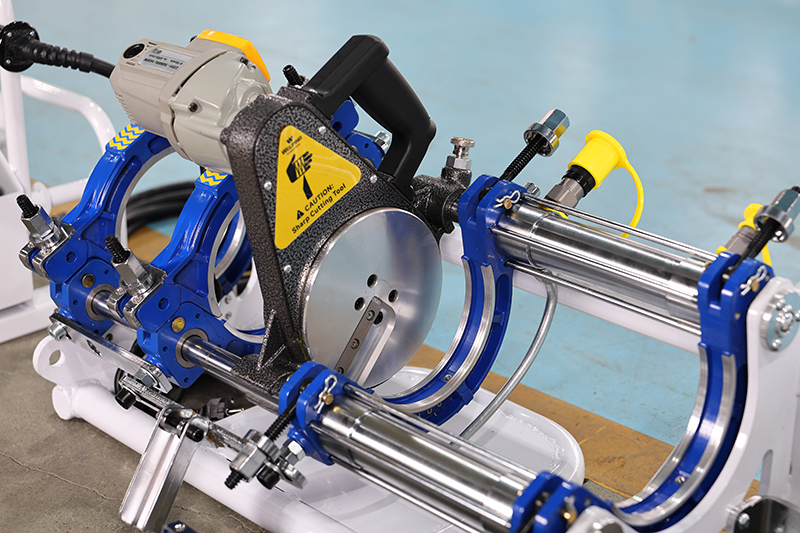

2. Facer (Milling Cutter) All-gear drive system delivers smooth operations, high transmission efficiency, and extended service life with minimal maintenance.

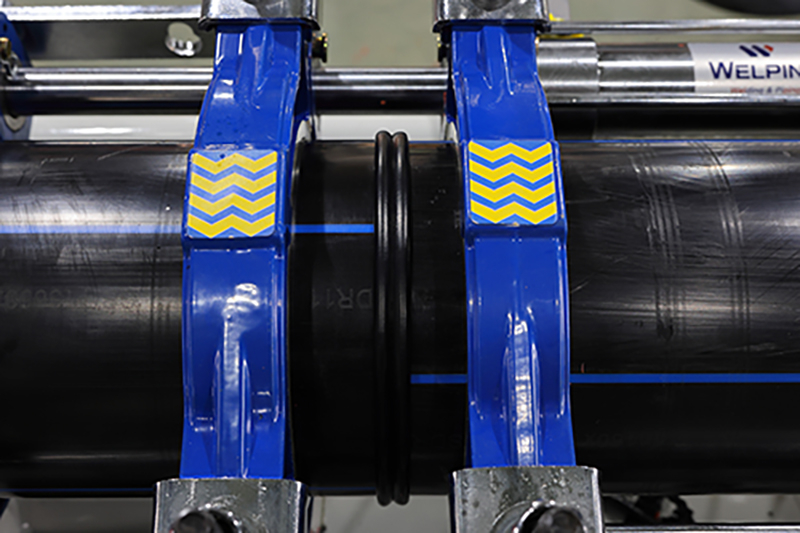

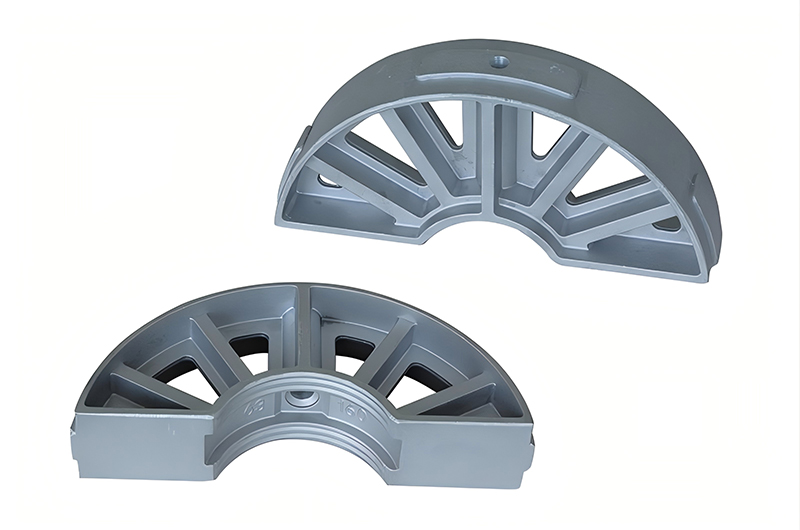

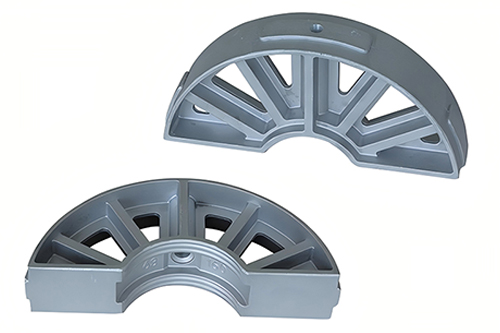

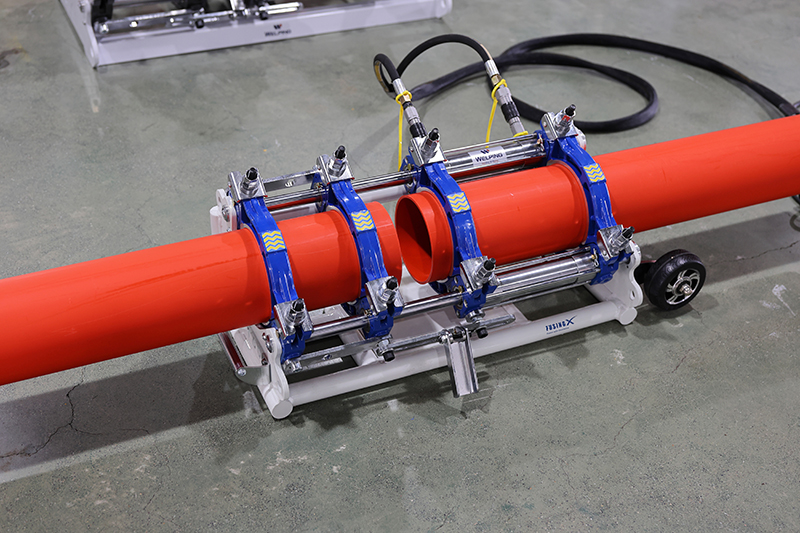

2. Single-Size Clamp Inserts Cast aluminum clamp inserts simplify size changes. From 40 mm to 160 mm, each pipe size requires only one insert, helping improve work efficiency and clamping accuracy.

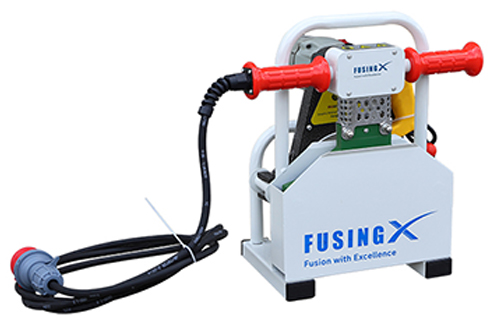

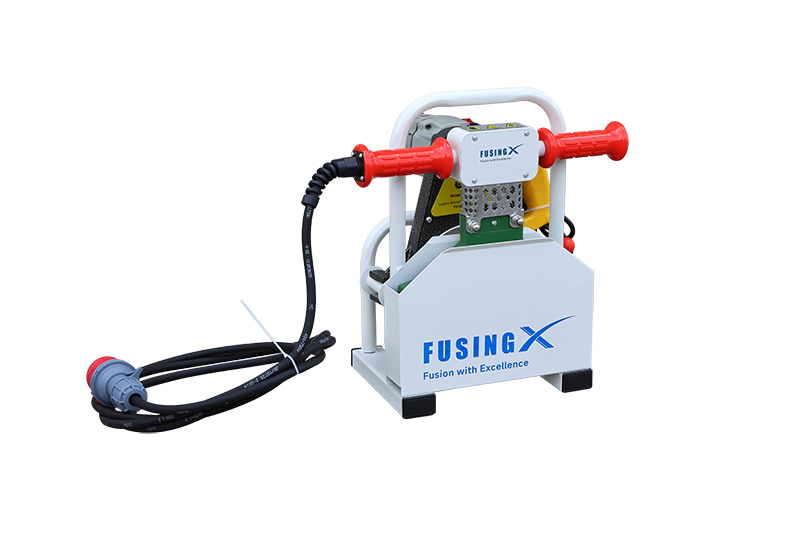

2. Tool Holder Designed to keep the heating plate and facer organized for easier handling and more efficient movement on site.
