A PRO Series Hydraulic Butt Fusion Welding Machines

The A PRO Series includes hydraulic butt fusion machines designed for plastic pipe welding from 40 mm to 630 mm. Developed for heavy-duty field work, the series combines a reinforced frame, integrated hydraulic control, and reliable heating performance to support efficient pipe joining across a wide range of applications.

Features
  • Upgraded wear-resistant bushings help extend service life
  • High-quality hydraulic cylinders with quick couplings provide durable, leak-free performance
  • The widened, raised frame is built for heavy-duty operation
  • Detachable wheels and carrying handles come standard for easier transport and improved durability
  • Raised handles and a full-enclosure structure improve handling and heat retention, helping maintain efficiency in cold-weather conditions
  • The integrated hydraulic unit combines high-quality electrical and hydraulic components in a lightly dust- and splash-resistant design for longer service life
Applications

A PRO Series hydraulic butt fusion machine is suitable for joining plastic pipes made of HDPE, PP, PB, and PVDF. They are widely used in several industries, including:

  • Municipal
  • Industrial
  • Marine
  • Mining
  • Landfill
  • Pipeline
  • Agricultural
  • Butt Fusion Machine (63-160mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-160mm Plastic Pipe Welding)
  • Butt Fusion Machine (63-160mm Plastic Pipe Welding)

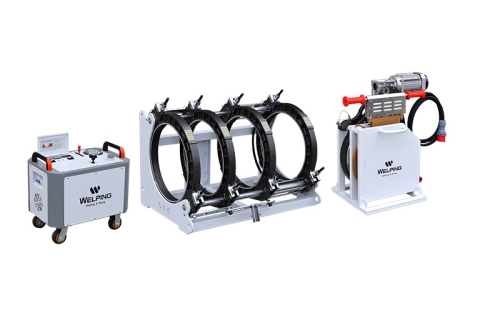

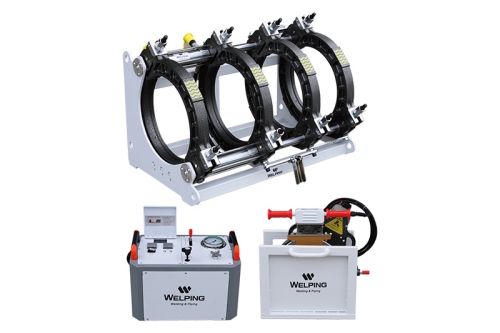

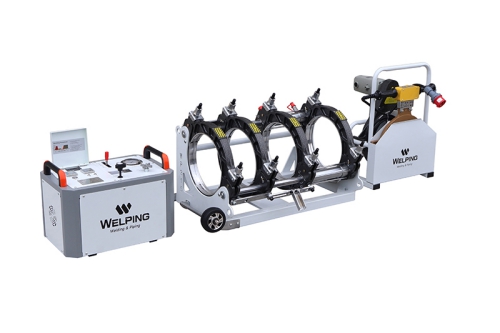

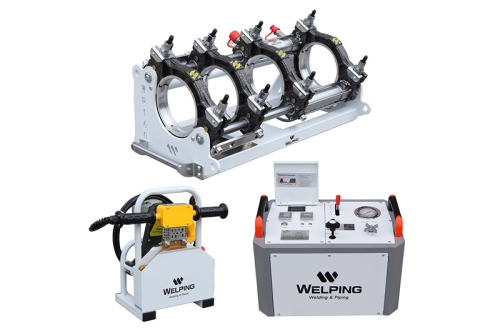

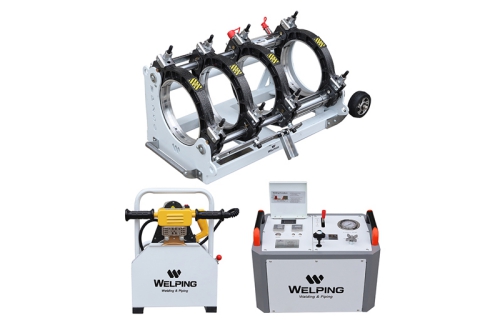

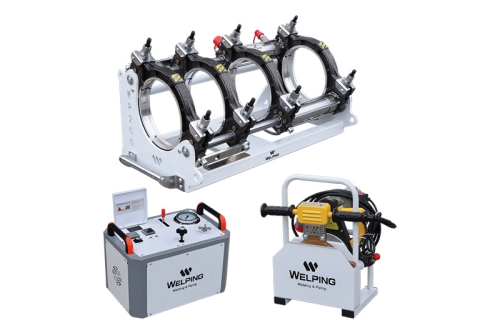

Available Models
Main Components

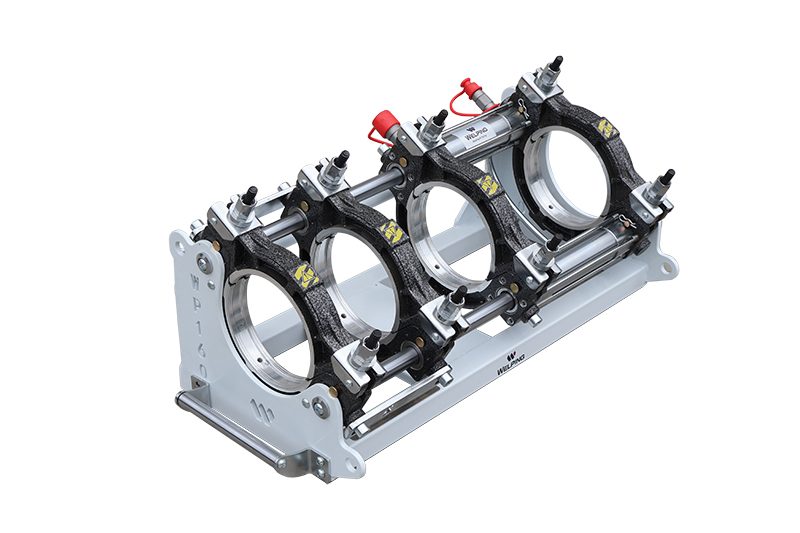

    1. Frame (Carriage)
    2. Frame (Carriage)
      • Full steel-welded construction with a reinforced heavy-duty frame for high load capacity
      • Precision-machined clamping surfaces ensure accurate pipe alignment
      • Standard carrying handles and wheels make on-site transport easier
      • Hydraulic cylinders with quick couplings allow fast and convenient setup

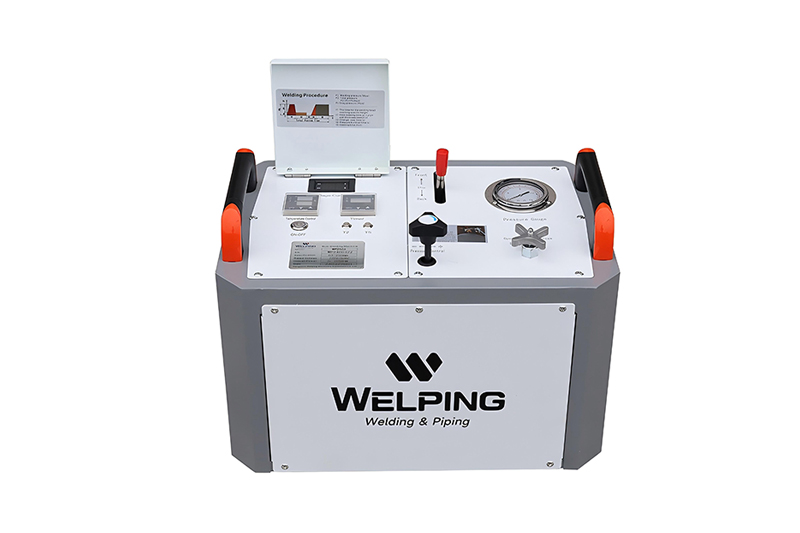

    1. DynaFX™ Hydraulic Power Unit
    2. DynaFX™ Hydraulic Power Unit
      • Integrated hydraulic and electrical controls for easier operation and maintenance
      • All-in-one control panel for hydraulic actuation, pressure setting, timing, digital display, and temperature setting
      • Enclosed design helps protect against water splashes and dust
      • Siemens electrical components for dependable control performance

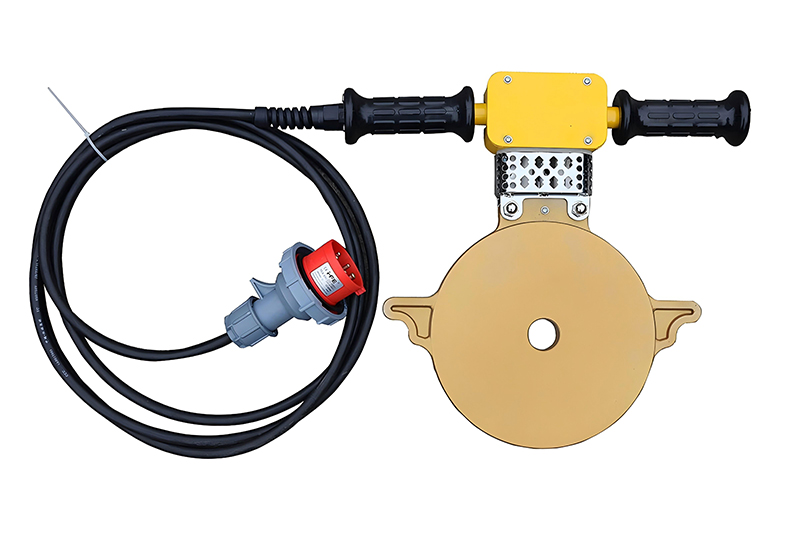

    1. Heating Plate
    2. Heating Plate
      • Cast aluminum body with built-in heating elements
      • Daikin non-stick PTFE coating
      • Reliable temperature control for consistent heating performance
      • Aviation-type plug and heavy-duty cable for safe operation

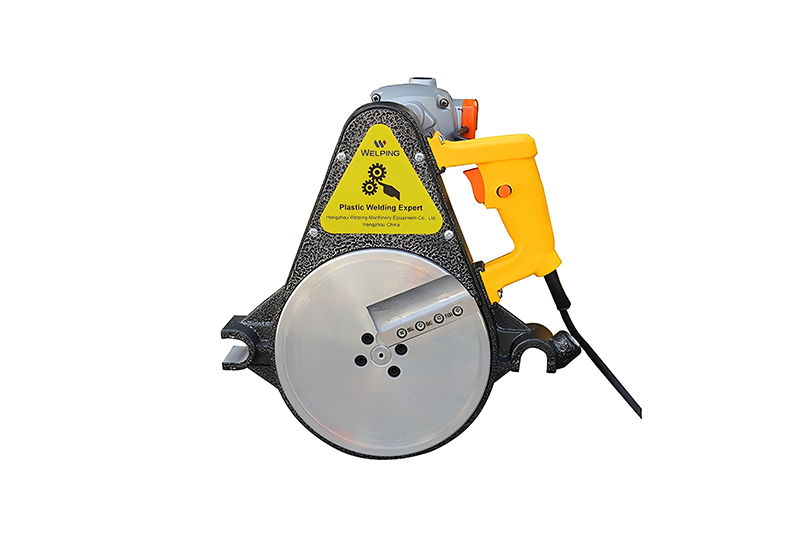

    1. Facer (Milling Cutter)
    2. Facer (Milling Cutter)
      • Full gear transmission for stable, long-lasting performance
      • Powerful copper-wound motor with output up to 1.4 kW
      • Durable double-edged HSS blades

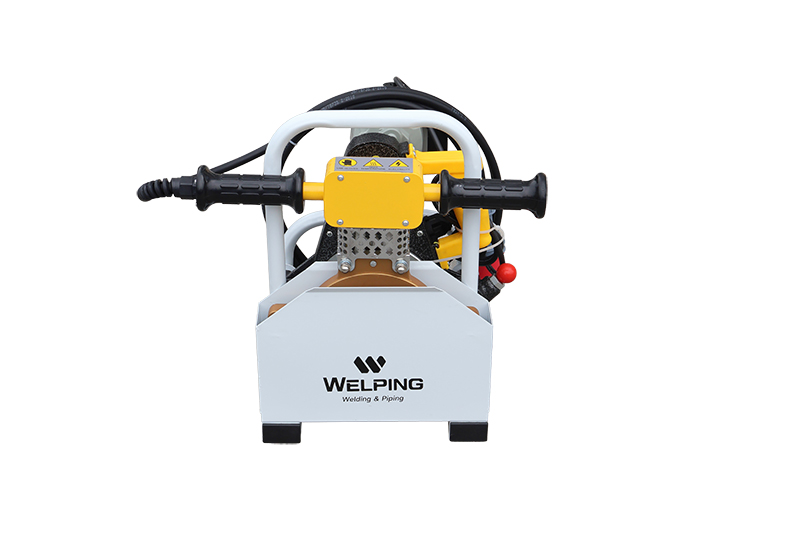

    1. Tool Holder
    2. Tool Holder
      • Full-cover design for better heating plate protection and heat retention
      • Wider, longer handles for easier mobility on site
WELPING is a professional manufacturer of fusion machines for jointing HDPE, PP, PVDF, MPP pipes/fittings. We have been focusing on the R&D, manufacturing, and sales of fusion welding equipment since 2005. Products range includes butt fusion machines and extrusion welders.
WELPING has a dedicated team of professional engineers for welding machines R& D and they can give you the most professional advice and technical support for fusion welding equipment. Our factory is equipped with complete manufacturing equipment and hence mass-produced standard products or simply customized products can be delivered within 10-15 days.
Since the very beginning, quality and cost-effectiveness are our benchmarks to develop new products. Adhering to the principle of high quality, we offer a variety of fusion welding machines to meet requirements in different scenarios and from different industries.
